3. Operation of CON Related Controllers
121

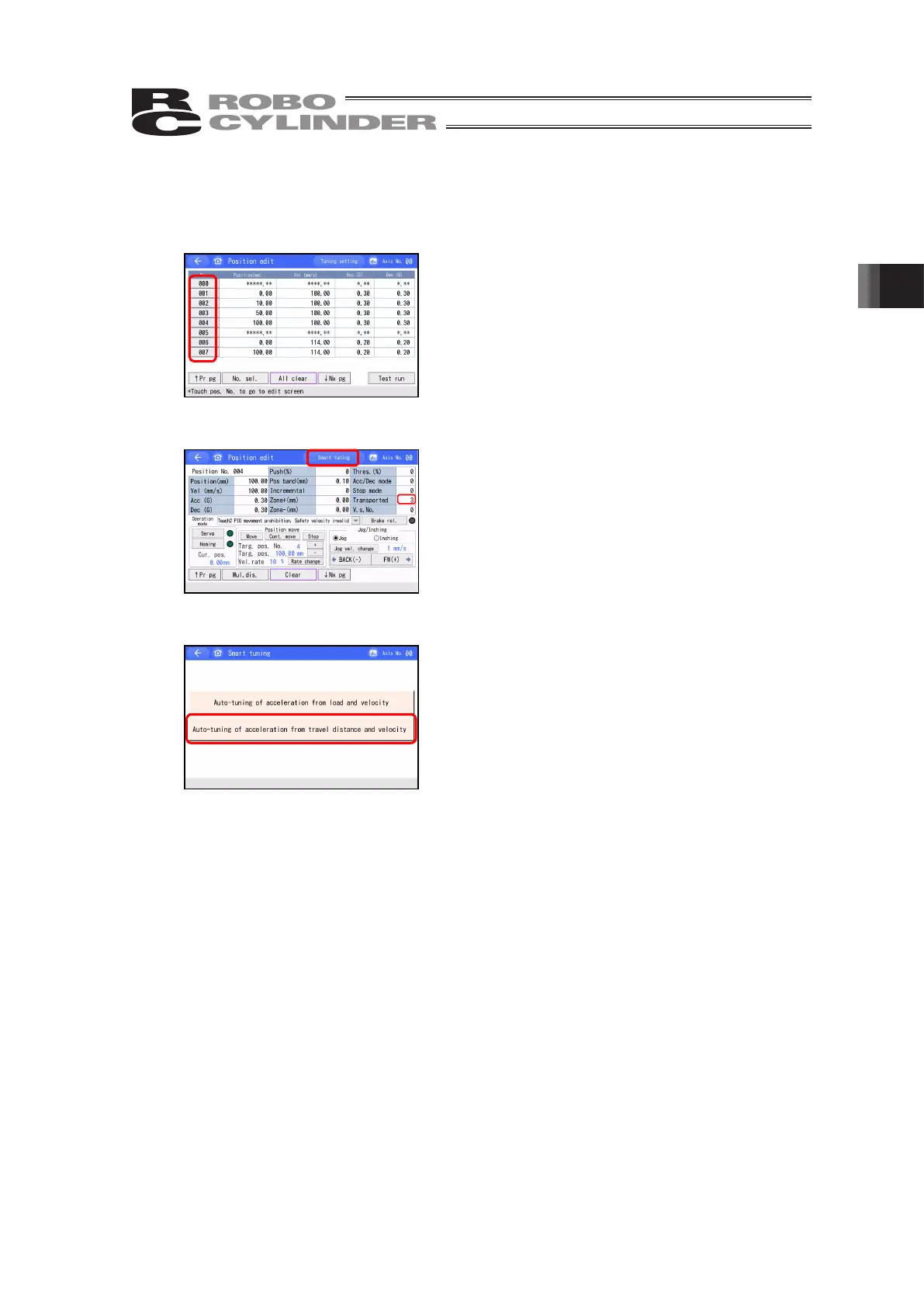

2) Way to Handle Smart Tuning Function
Set the distance and carrier load number to the set position number.
Select “Automatically Tune Acceleration from Transported Load and Velocity” from the ways
for tuning.
Select the position to have Smart Tuning Function and
touch it.
Select one from 0 (Transported Load No. 0) to 3
(Transported Load No. 3) and set to the transported
load.
Set the necessary items except for acceleration and
deceleration such as target position.
Touch [Smart tuning].
Touch [Auto-tuning of acceleration from travel distance
and velocity].
There are two ways to set up the moving distance.
Position 2 points Select
Distance Select
To Next Page
