3. Operation of CON Related Controllers
122
(Position 2 points designation)

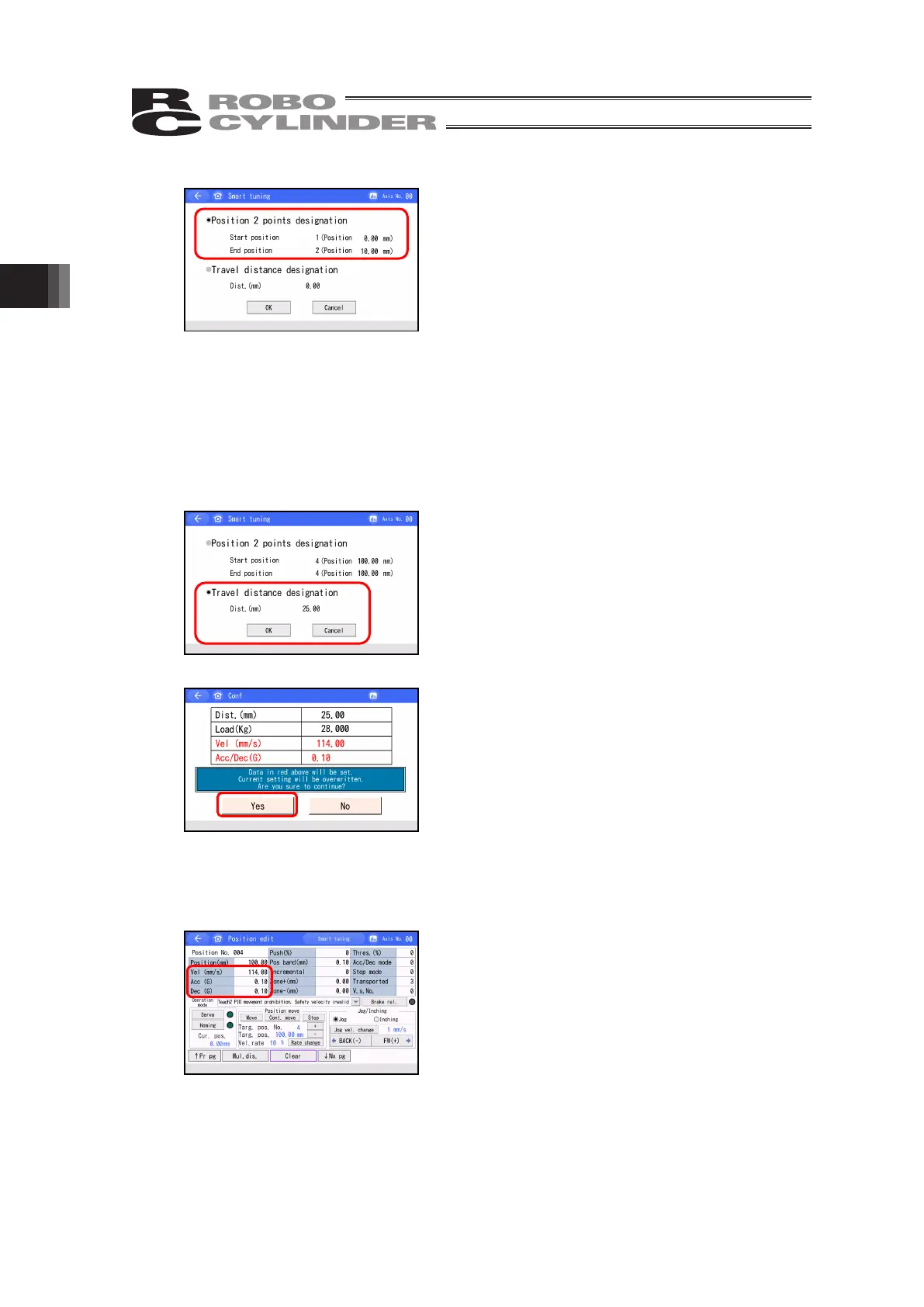

Select Position 2 points designation.
Touch the value on the start position and the numeric
key will be shown.
Set the Start position.
Touch the value on the end position and the numeric key
will be shown.
Set the End position.
(Note) For the end position, the position number to have Smart Tuning Function is shown.
The end position can be changed. However, even if the end position is changed, it is
set to the position where Smart Tuning Function is held by the calculation of the
velocity, acceleration and deceleration from the distance between the set start
position and end position.
(Travel distance designation)
Select Travel distance designation.
Touch the value on the moving distance [mm] and the
numeric key will be shown.
Set the Distance.
Acceleration and deceleration after automatic tuning are
shown.
Touch [Yes].
3) The velocity, acceleration and deceleration are set to provide the shortest tact time to run
between two points for the indicated transported load number.
