4. Operation of SEP Related Controllers
234

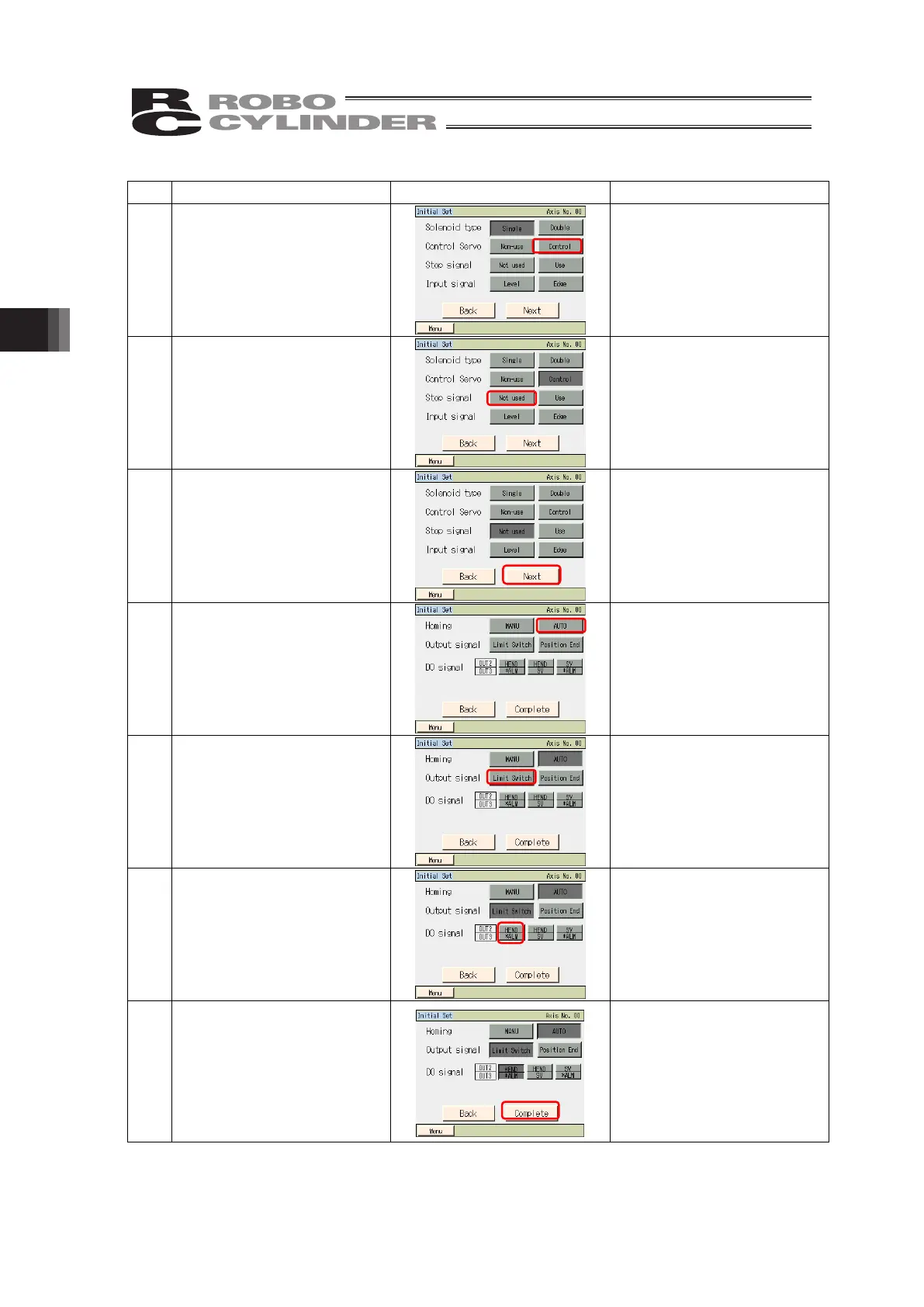

No. Operation Screen Remarks
6 Touch [Control].
Servo control is selected.
Touch [Menu] to return to the
initial setting menu screen.
7 Touch [Not used].
Non-use of pause command
(*STP) is selected.
Touch [Menu] to return to the
initial setting menu screen.
8 Touch [Next].
9 Touch [AUTO].
AUTO home return is
selected.
Touch [Menu] to return to the
initial setting menu screen.
10 Touch [LimitSwitch].
LS0 (backward end position
detection) and LS1 (forward
end position detection) are
selected as the output signals.
Touch [Menu] to return to the
initial setting menu screen.
11 Touch [HEND*ALM].
HEND and *ALM are selected
as the OUT2 and OUT3
outputs.
Touch [Menu] to return to the
initial setting menu screen.
12 Touch [Complete].
Touch [Back] to return to the
previous screen.
Touch [Menu] to return to the
initial setting menu screen.
