4. Operation of SEP Related Controllers
233

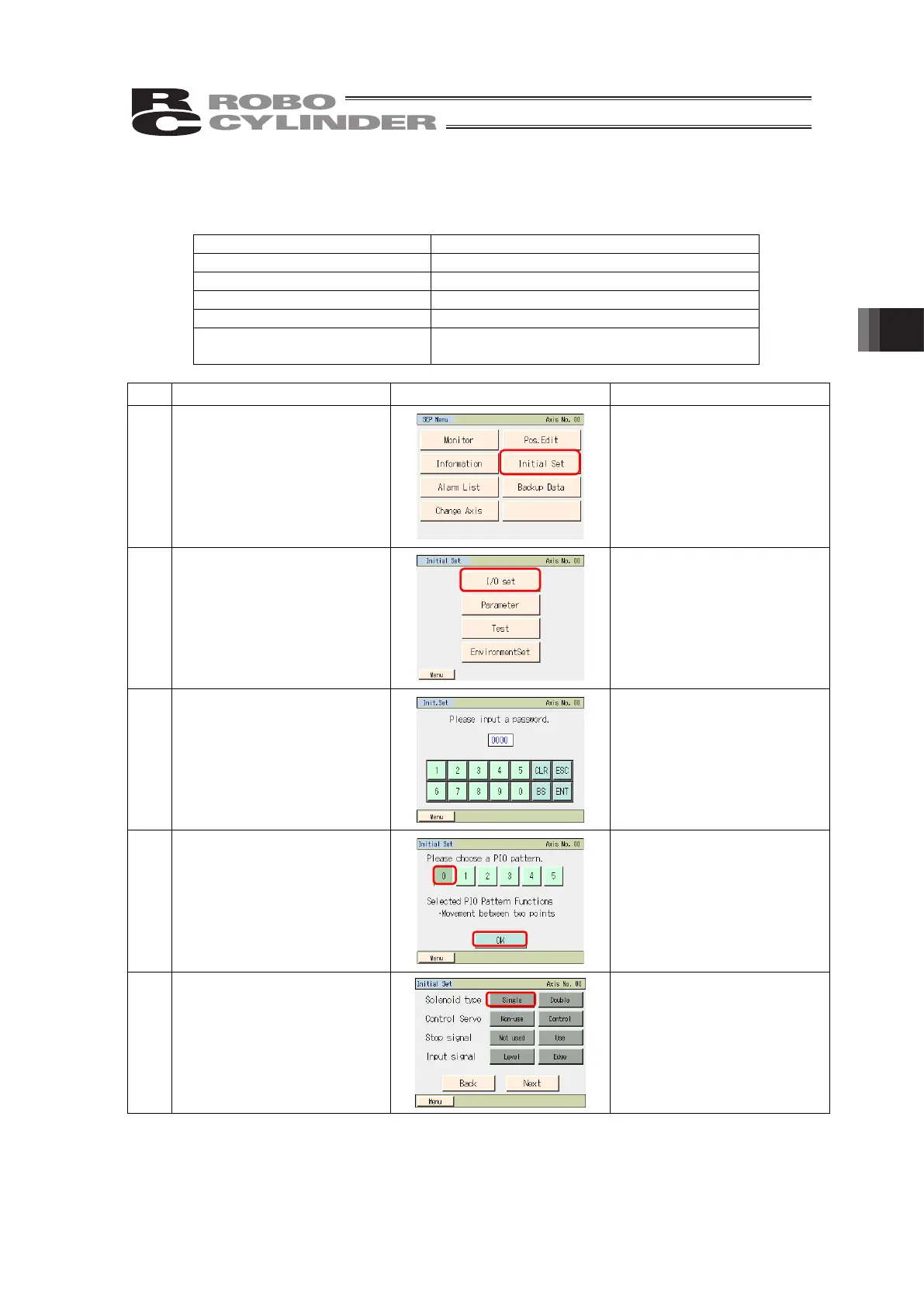

[3] Examples of I/O setting operations
Respective operations are explained by giving specific examples.
Example of operation mode 0 (standard movement between 2 points) Set as follows:
Operation mode Sin
g
le solenoid
Use of pause command
(
*STP
)
Not used
Control Servo Control
OUT2, OUT3 output si
g
nals OUT2 HEND, OUT3 *ALM
Home
A
UTO
(
start home return upon power on
)
DO signal
LS0 (backward end position detection), LS1
(
forward end position detection
)
No. Operation Screen Remarks
1 On the SEP menu screen:
Touch [Initial Set].
2 Touch [I/O set].
Touch [Menu] to return to the
SEP menu screen.
3 If the system password is
other than “0000,” the
password input screen
appears.
Input a system password and
touch [ENT].
The default system password
is “5119”.
For how to change the system
password, refer to 4.12,
“Parameters [Change System
Password].”
4 Touch [0] and touch [OK].
Operation pattern 0 is
selected.
Touch [Menu] to return to the
initial setting menu screen.
5 Touch [Single].
The single-solenoid operation
mode is selected.
Touch [Menu] to return to the
initial setting menu screen.
