4. Operation of SEP Related Controllers
248
[1] Basic operation

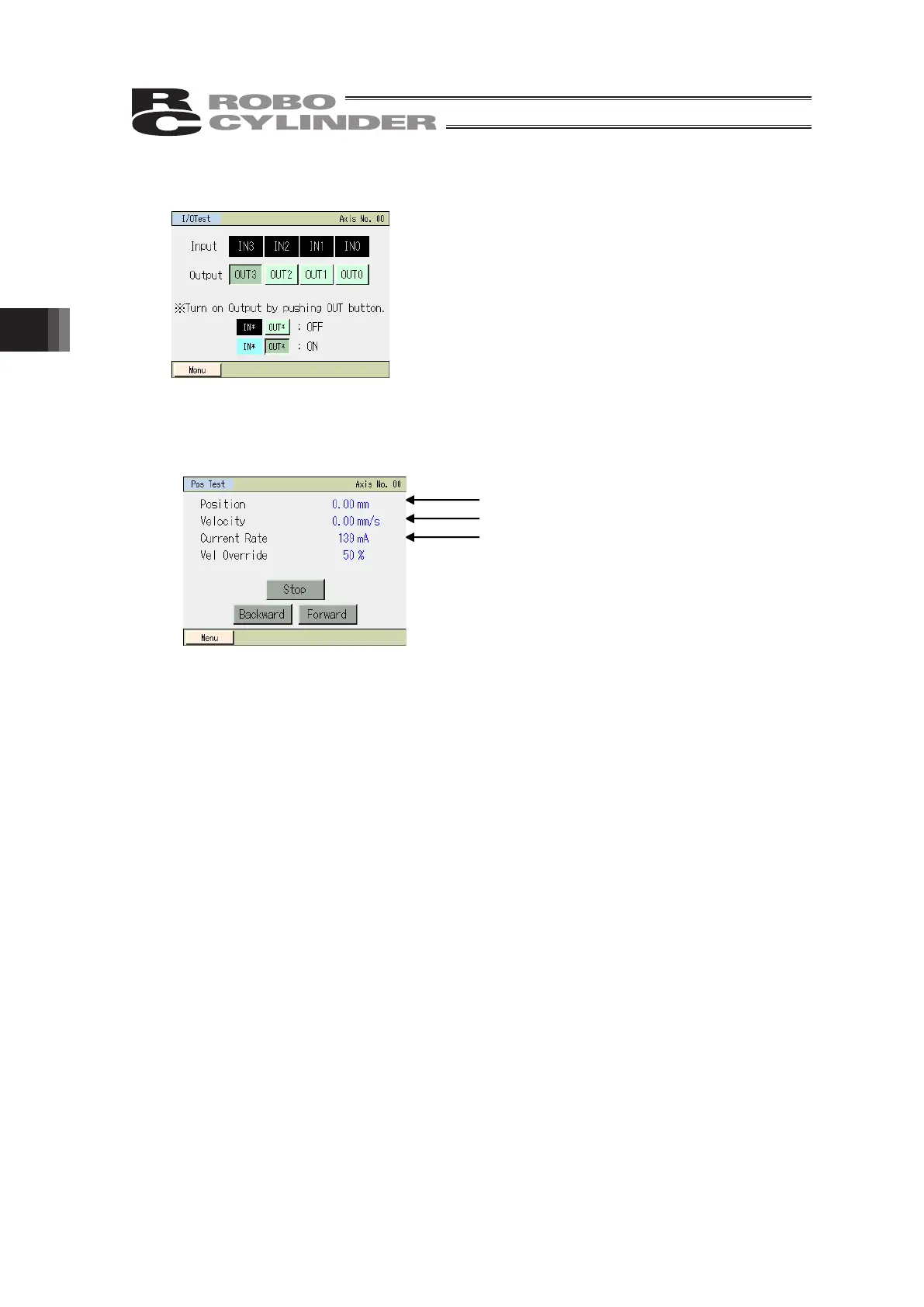

[I/O test]
ON/OFF of input signals can be monitored.
The output signals OUT0 to OUT3 can be forcibly output
by touching each signal.
Touch [Menu] to return to the test menu screen.
[Pos Test]
The operating method is explained using an example of operation pattern 0.
Touch [Menu] to return to the test menu screen.
Current Rate/Current :
You can switch the display between the rated current ratio (%) and
current value (mA) every time you touch [Current Rate] or [Current].
Vel Override :
You can change the moving speed of the actuator to 10%, 50% or
100% of the speed set in the position data every time you touch
[Vel Override].
Backward : Touching [Backward] moves the actuator backward.
Forward : Touching [Forward] moves the actuator forward.
Stop : Touching [Stop] stops the actuator.
The current axis position is indicated.
The axis speed is indicated.
The electric rated current ratio/current value of the
axis is indicated by a percentage of the rating.
