The settings of operation pattern 5 (continuous back-and-forth operation) vary partially from
other operation patterns.
Current Rate/Current :
You can switch the display between the rated current ratio (%) and
current value (mA) every time you touch [Current Rate] or
[Current].
Vel Override :
You can change the moving speed of the actuator to 10%, 50% or
100% of the speed set in the position data every time you touch
[Vel Override].
Start : Continuous operation stops once the operation test screen appears.
Touching [Start] causes the actuator to move back and forth continuously at
the speed set by the override parameter.
Stop : Touching [Stop] stops the actuator.
Reset : Touching [Reset] resets the back-and-forth counter to 0.
Continuous operation resumes once the operation test screen closes.

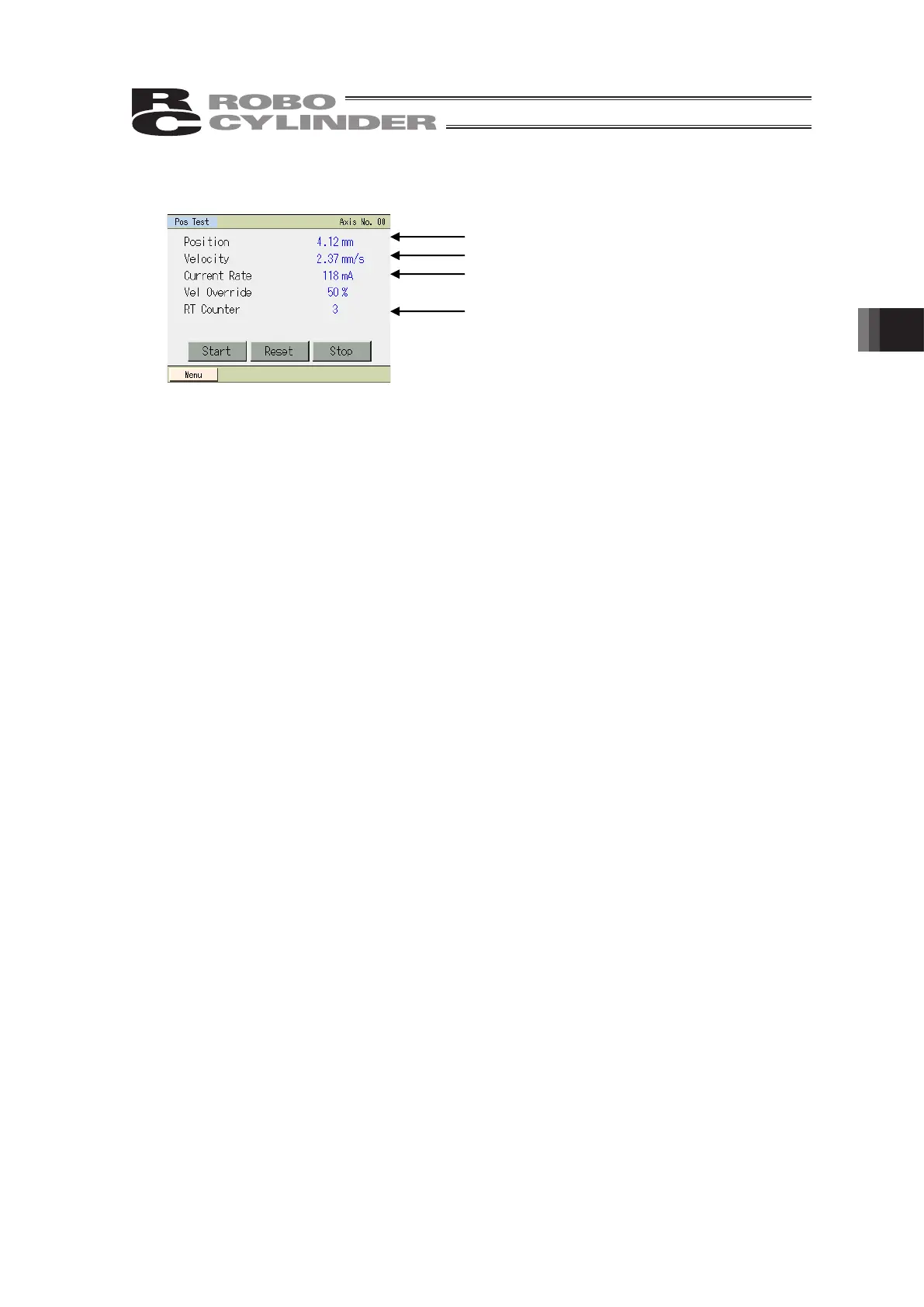

The current axis position is indicated.
The axis speed is indicated.
The electric rated current ratio/current value of the
axis is indicated by a percentage of the rating.
The back-and-forth operation times of the axis is
indicated.
