5. Operation of MEC Related Controllers
280

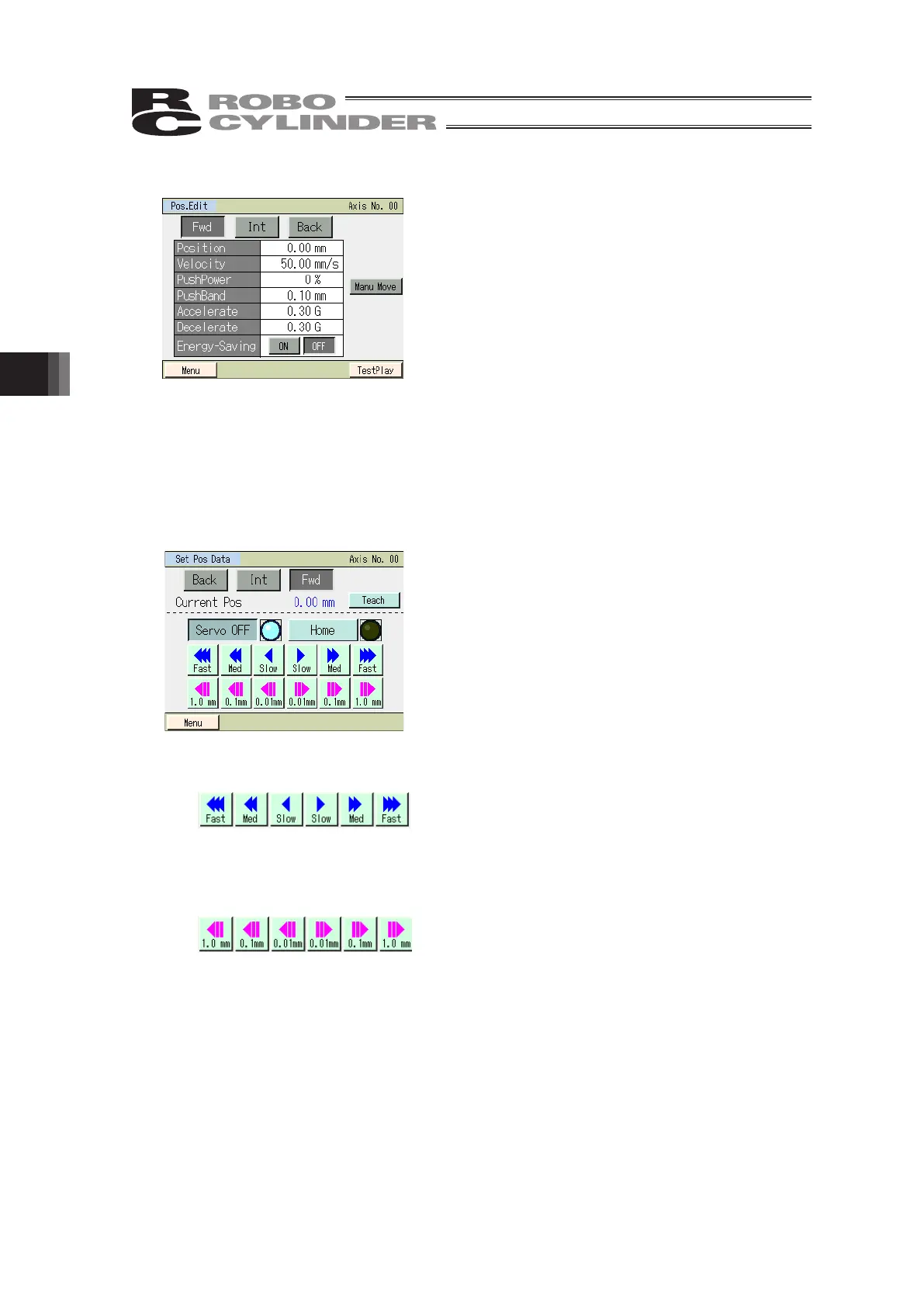

[2] Basic operation
Touch the value field of each setting item such as
position.
When the numeric keypad is displayed, enter a
desired value and then touch [ENT].
Touch either of Start, End or Int and the screen
changes to the corresponding setting window for
[Fwd], [Back] or [Int].
(Note) The positions must satisfy the following relationships: Home
Start position
Midway
position
End position
Touching [Jog] switches to jog operation.
[Manual axis operation (jogging/inching)]
You can load position data via manual axis operation (jogging/inching).
Operation on the manual axis operation (jogging/inching) screen
While any of these buttons is touched, the axis jogs
in the direction of the arrow. The axis moves at 1
mm/s in the low-speed mode, 10 mm/s in the
medium-speed mode, or 50 mm/s in the high-speed
mode.
Select one of the speed.
While any of these buttons is touched, the axis
inches in the direction of the arrow. Select 0.01 mm,
0.1 mm or 1.0 mm as the inching distance.
[Servo ON]
Touching [Servo ON] when the motor power (servo)
is turned off turns on the motor power (servo) and
the lamp will become lit. Touching [Servo OFF]
when the motor power (servo) is turned on turns off
the motor power (servo) and the lamp will
become unlit.
[HOME]
Touching [HOME] before the home return is
completed causes the axis to return home and the
lamp will become lit.
To Next Page
