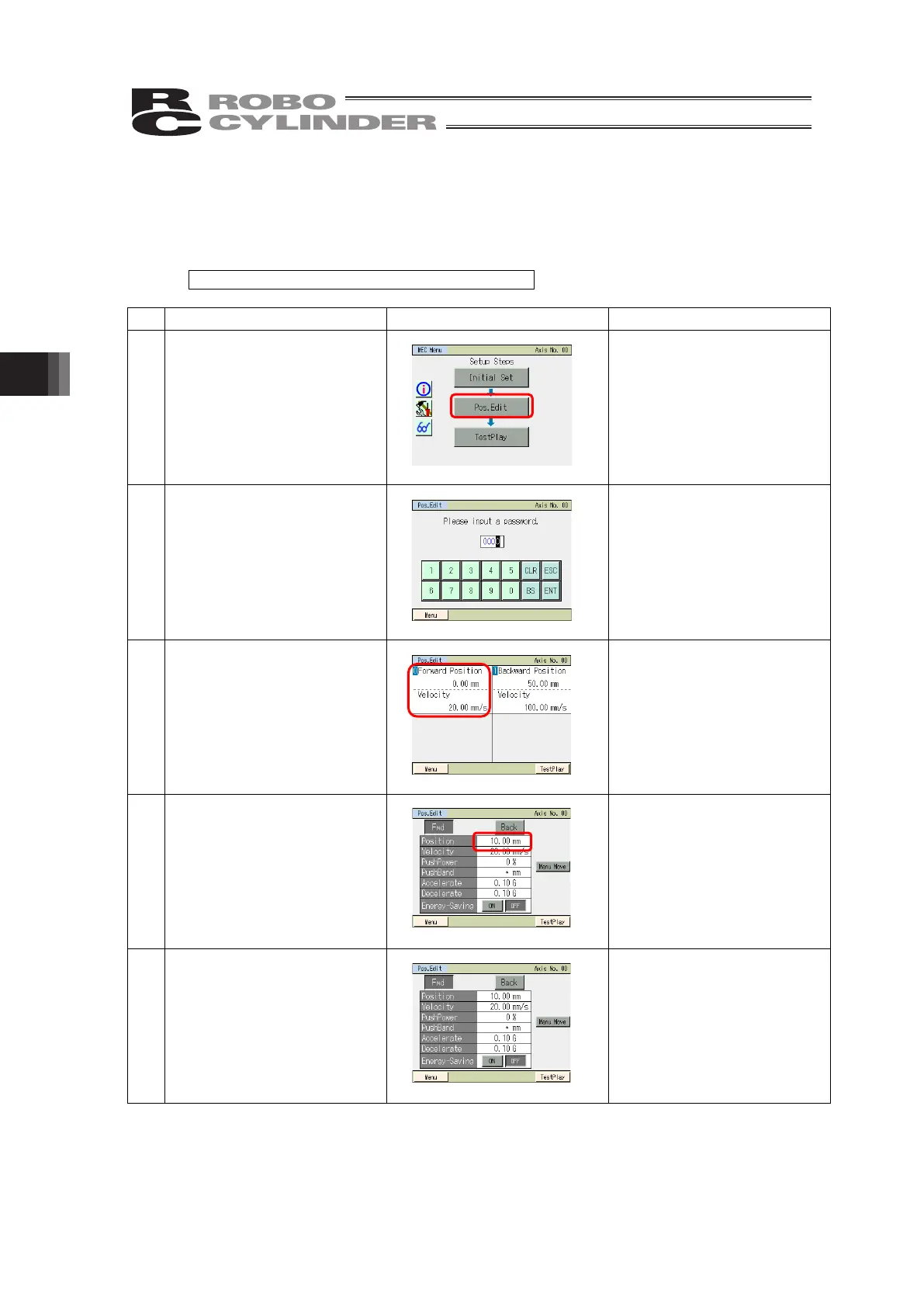

[3] Example of position setting operation
The operation is explained using specific examples.
1) Setting the position, speed, acceleration and deceleration
An example of stopping at 2 points is explained.
Positions are set to operate the actuator back and forth between 10.0 mm and 100.0 mm.
End position: 100.0 mm, Start position: 10.0 mm
No. Operation Screen Remarks
1 Touch [Pos.Edit] on the MEC
menu screen.
2 If the position data edit
password is not “0000,” the
password entry screen
appears.
Enter the position data edit
password and touch [ENT].
A position data edit password
can be set in the “position
data edit” field of the
parameter edit screen.
3 Set the position relating to the
start point, acceleration, and
deceleration.
Touch [Forward Position].
Touch [Menu] to return to the
MEC menu screen.
4 Touch the value field of
position. When the numeric
keypad is displayed, touch [1],
[0], and then [ENT].
Touch [Menu] to return to the
position setting screen.
5 “10.00” appears next to
"Position.”
Touch [Menu] to return to the
position setting screen.
