6. Operation of ELECYLINDER
339
[2] Features LS Signals (LS0 to 1)
LS0 and LS1 signals are not complete signals for positioning commands. Despite the
specified position No., the corresponding LS0 or LS1 signal is turned ON when the actuator
is entered into the setup value range as if the actuator were detected by a sensor installed.

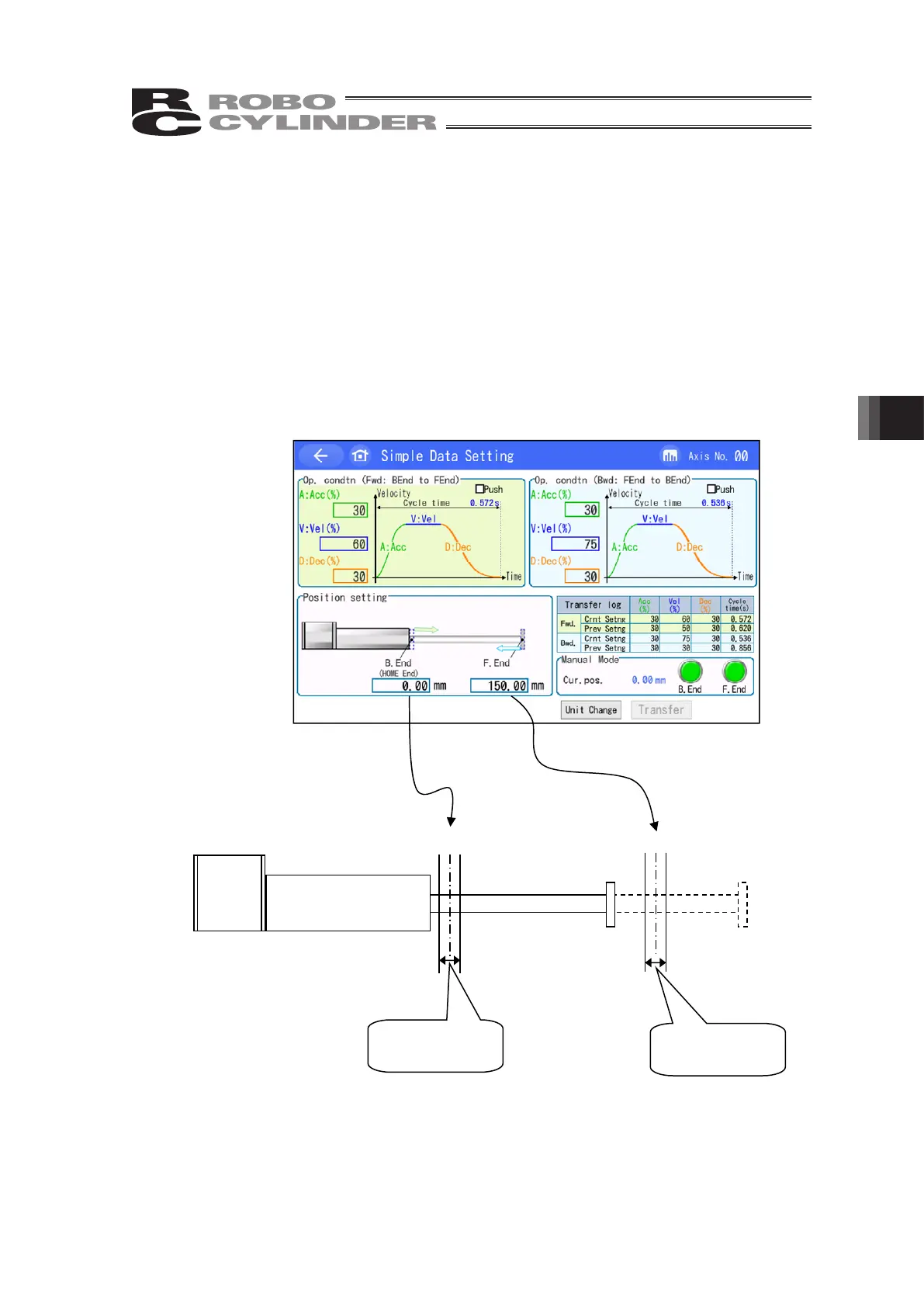

(Example) The figure below shows the position table and the position at which each of the
LS signals is turned ON. During operation with another position number, and also
while the servo is turned OFF by pressing the stop switch on a teaching tool
(when the stop switch on a teaching tool is pressed), it always turns ON
whenever the actuator is in that range when it is moved manually by hand. The
range to turn the signal ON should be the value set in “Automatic Switch “LS”
Signal Detection Range Adjustment” in the parameter. The example below shows
a case that the range is set to 1.0mm.
Home = 0mm
150mm
LS1 is ON
150 1mm
LS0 is ON
0 1mm
