3. Operation of CON Related Controllers
49

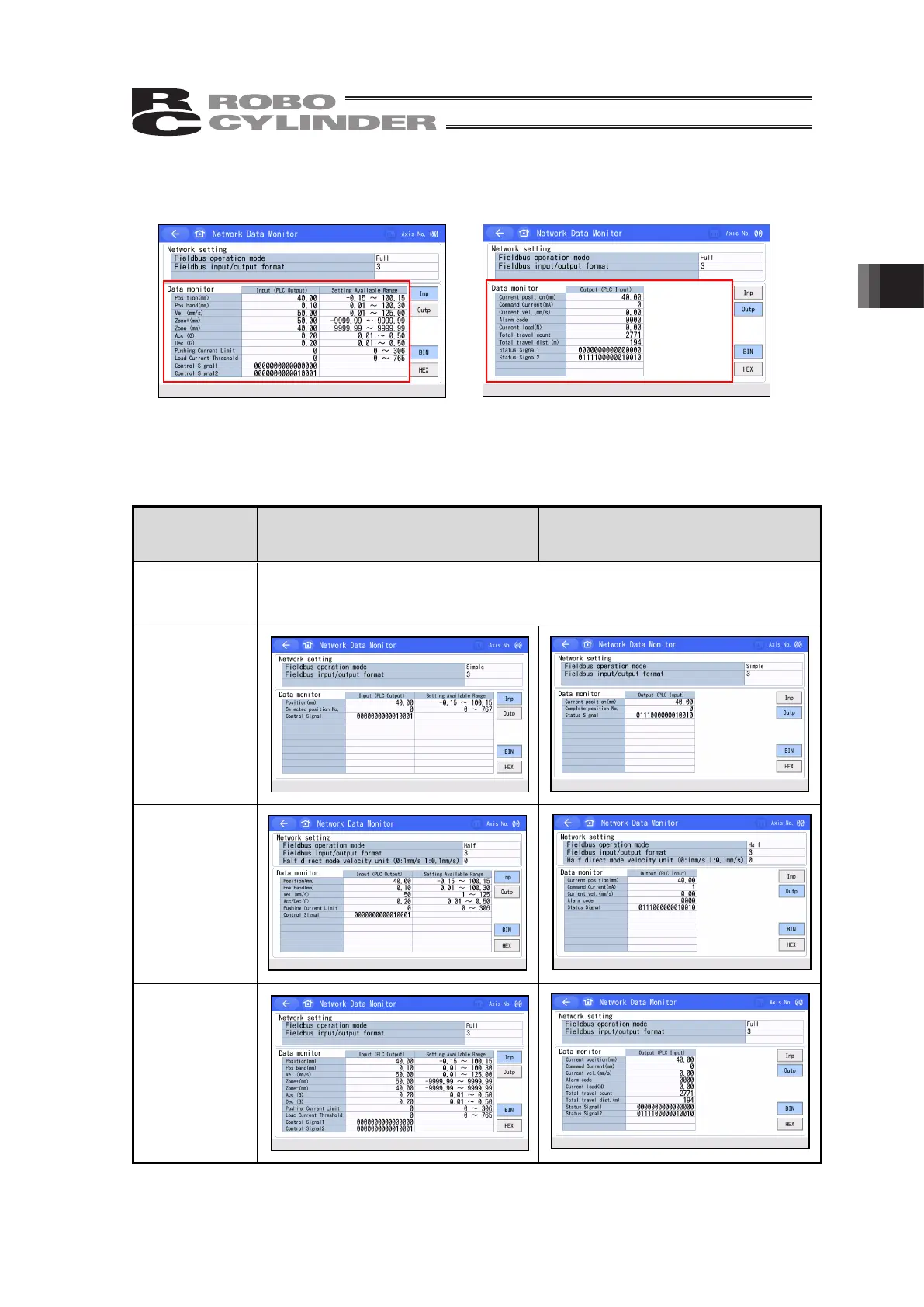

3.9.1.5 (2) Data Monitor (Positioner Type)
Input values to a controller, settable range and output values from a controller should be displayed.
The window shown above is the display in Fieldbus Operation Mode “3: Full Direct”.
Shown in “Input and Output Display List for Each Positioner Type Fieldbus Operation Mode” is the
screen displayed in each setting of Fieldbus Operation Mode.
Positioner Type Input and Output Display List for Each Fieldbus Operation Mode
Fieldbus
Operation
Mode
Input Value Output Value
0 :
Remote I/O
Network data monitor should not be displayed.
1 :
Simple Direct
2 :
Half Direct
3 :
Full Direct
To Next Page
