3. Operation of CON Related Controllers
55

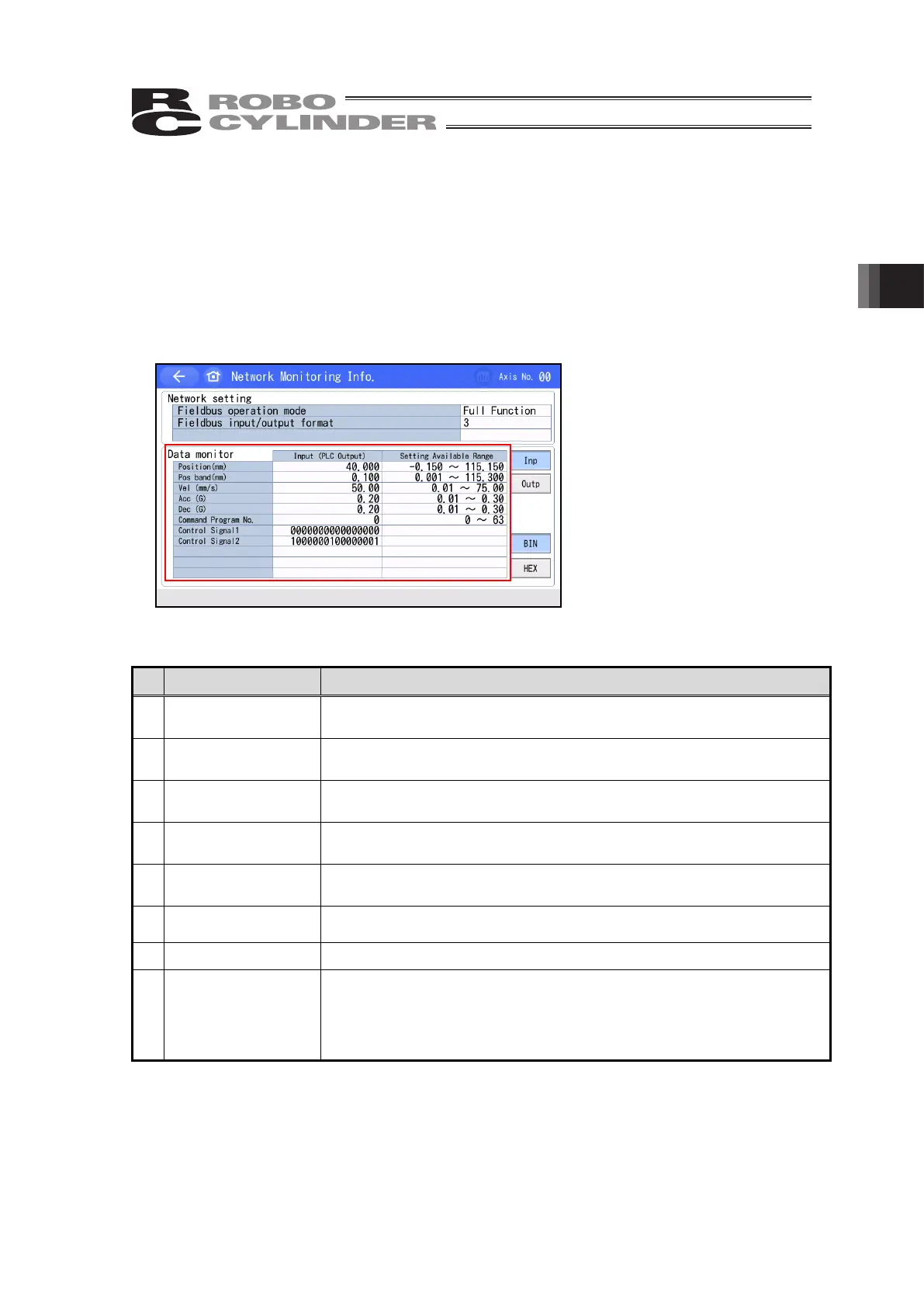

3.9.1.5 (3) Data Monitor (Servo Press Type)
Full Feature Mode
It is the mode applicable for the program operations and direct position movement commands.
It is not capable for a direct position movement command while a program is executed or program
startup during direct position movement.
• Display of Input Values
It shows the input (PLC output) values to a controller and the settable range.
* Output a value within the settable range from the PLC.
Shown in “Servo Press Type Input List” is the list of detailed explanations for input items.
Servo Press Type Input List
Item Explanations
1 Position
It shows the target position at direct position movement command.
Unit : 0.01mm or 0.001mm
2 Pos band
It shows the positioning band at direct position movement command.
Unit : 0.01mm or 0.001mm
3 Vel
It shows the velocity at direct position movement command.
Unit : 0.01mm/s
4 Acc
It shows the acceleration at direct position movement command.
Unit : 0.01G
5 Dec
It shows the deceleration at direct position movement command.
Unit : 0.01G
6 Command Program
No.
It shows the pressing program number to be executed.
7 Control Signal 1
Reserved Domain
8 Control Signal 2 It shows the status signal 2.
Input should be displayed in the binary numbers or hexadecimal
numbers.
Refer to “Servo Press Type Status Signal 2 Detail” for the displayed
contents.
To Next Page
