3. Operation of CON Related Controllers
57

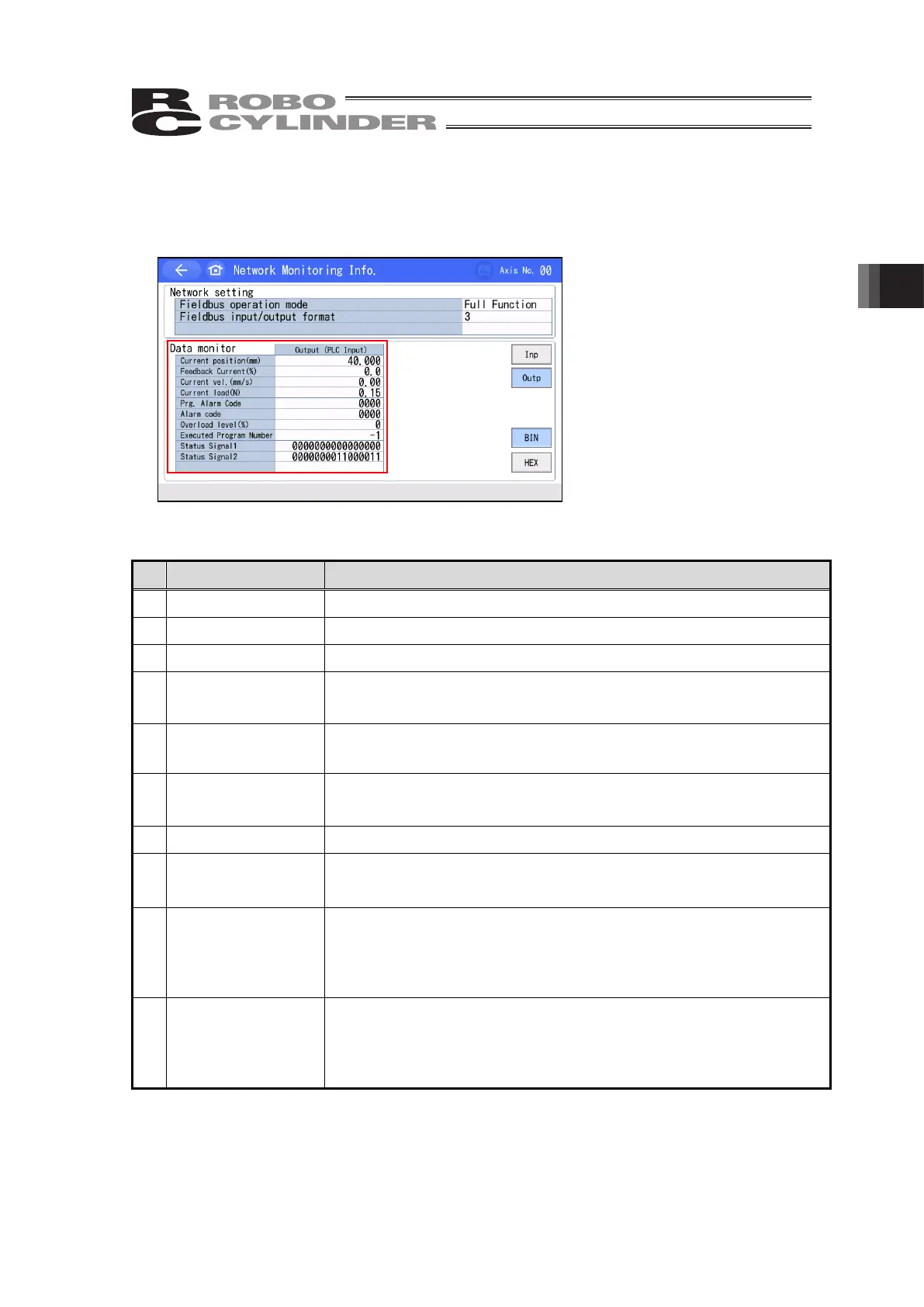

• Display of Output Values
It shows the output (PLC input) values from a controller.
Shown in “Servo Press Type Output List” is the list of detailed explanations for output items.
Servo Press Type Output List
Item Explanations
1 Ourrent position
It shows the current position.
2 Feedback Current
It shows the rate of the feedback current to the rated value.
3 Current vel.
It shows the current velocity.
4 Current load
It shows the feedback values of the load data from the loadcell
attached on the tip of an axis.
5 Prg. Alarm Code
It shows the program alarm code which is currently being occurred.
It shows “0000” when an program alarm is not occurred.
6 Alarm Code
It shows the alarm code which is currently being occurred.
It shows “0000” when an alarm is not occurred.
7 Overload level
It shows the overload level.
8 Executed Program
Number
It shows the program number being executed by the program startup
command.
It should be “-1” before the pressin
pro
ram is executed.
9 Control Signal 1 It shows the status signal.
Output should be displayed in the binary numbers or hexadecimal
numbers.
Refer to “Servo Press Type Status Signal 1 Detail” for the displayed
contents.
10 Control Signal 2 It shows the status signal.
Output should be displayed in the binary numbers or hexadecimal
numbers.
Refer to “Servo Press Type Status Signal 2 Detail” for the displayed
contents.
