3. Operation of CON Related Controllers
76
(1) Basic operation

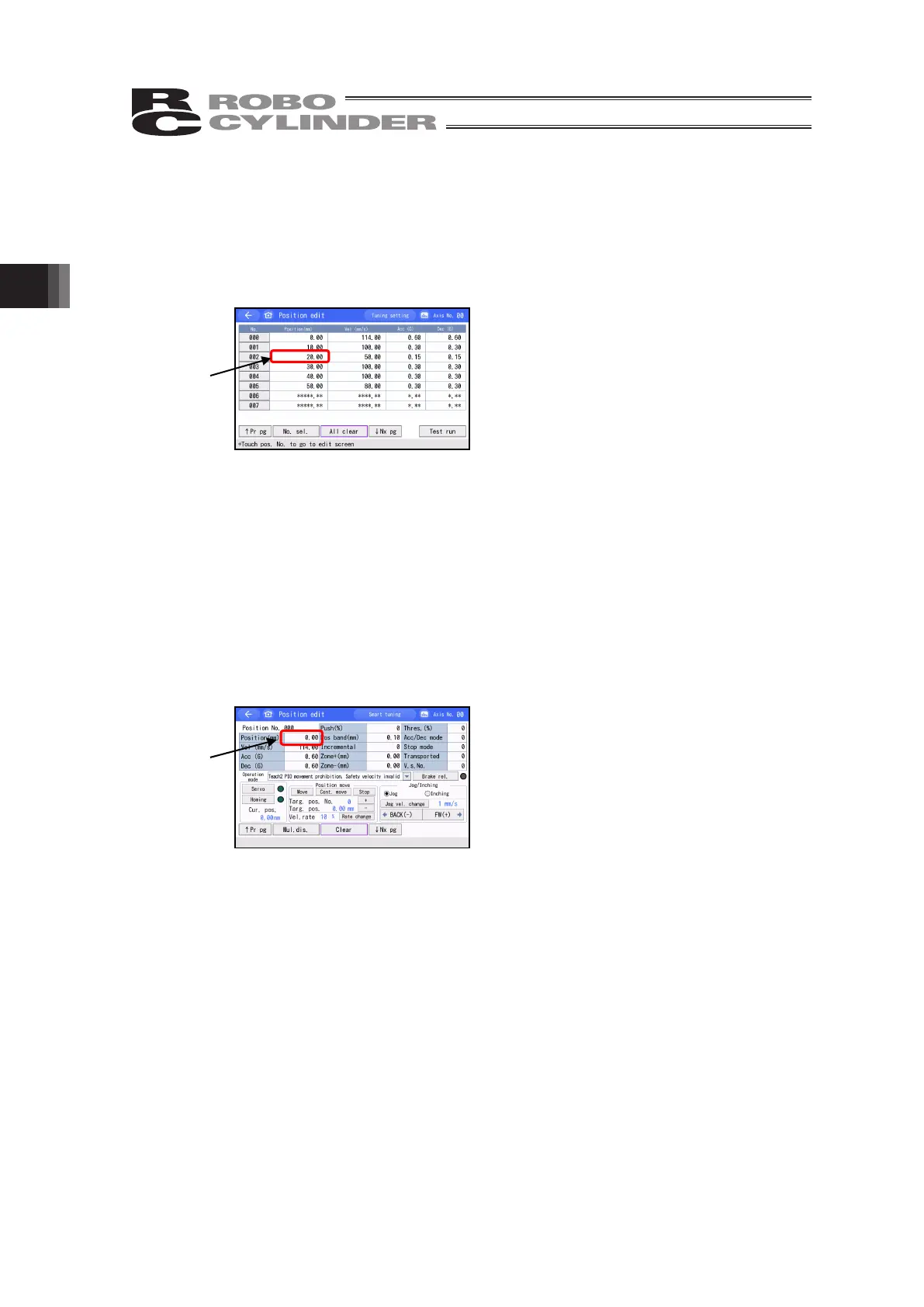

[Data entry on the position data table screen]
You can set the target position, speed, acceleration and deceleration in the position data table.
Touch [ Pr pg] and [ Nx pg] to display the table showing the desired position data number.
Or, touch [No. sel.] and set the desired position data number to display the table.
Touch a value in the target position or other field
of the desired position data number.
When the numeric keypad appears, key in the
desired value and touch [ENT], and the value will
be entered.
Touching Axis No. switches to the axis selection
screen.
Touching [All clear] clears all position data.
[Important]
Do not touch [ Pr pg] key or [ Nx pg] key too fast to switch the windows.
‘0’ is occasionally shown to the data values that are already registered.
The data is not lost even though ‘0’ is displayed. Touch [ Pr pg] key and [ Nx pg] key to
switch the window and come back, and you will find the data showing the right values.
[Data Input in Position Data Individual Edit Screen]
In Position Data Individual Edit screen, all the items are available for setting.
Touch a value in the target position or other
desired field.
When the numeric keypad appears, key in the
desired value and touch [ENT], and the value will
be entered.
Touch [ Pr pg] or [ Nx pg] to change to the
screen of the previous or next position number.
Touching [Mul. dis.] returns the screen to the
position data table display.
Touching Axis No. switches to the axis selection
screen.
Touch.
Touch.
To Next Page
