[JOG / Inching Operation]
Movement and position data reading can be performed by JOG / Inching operation.

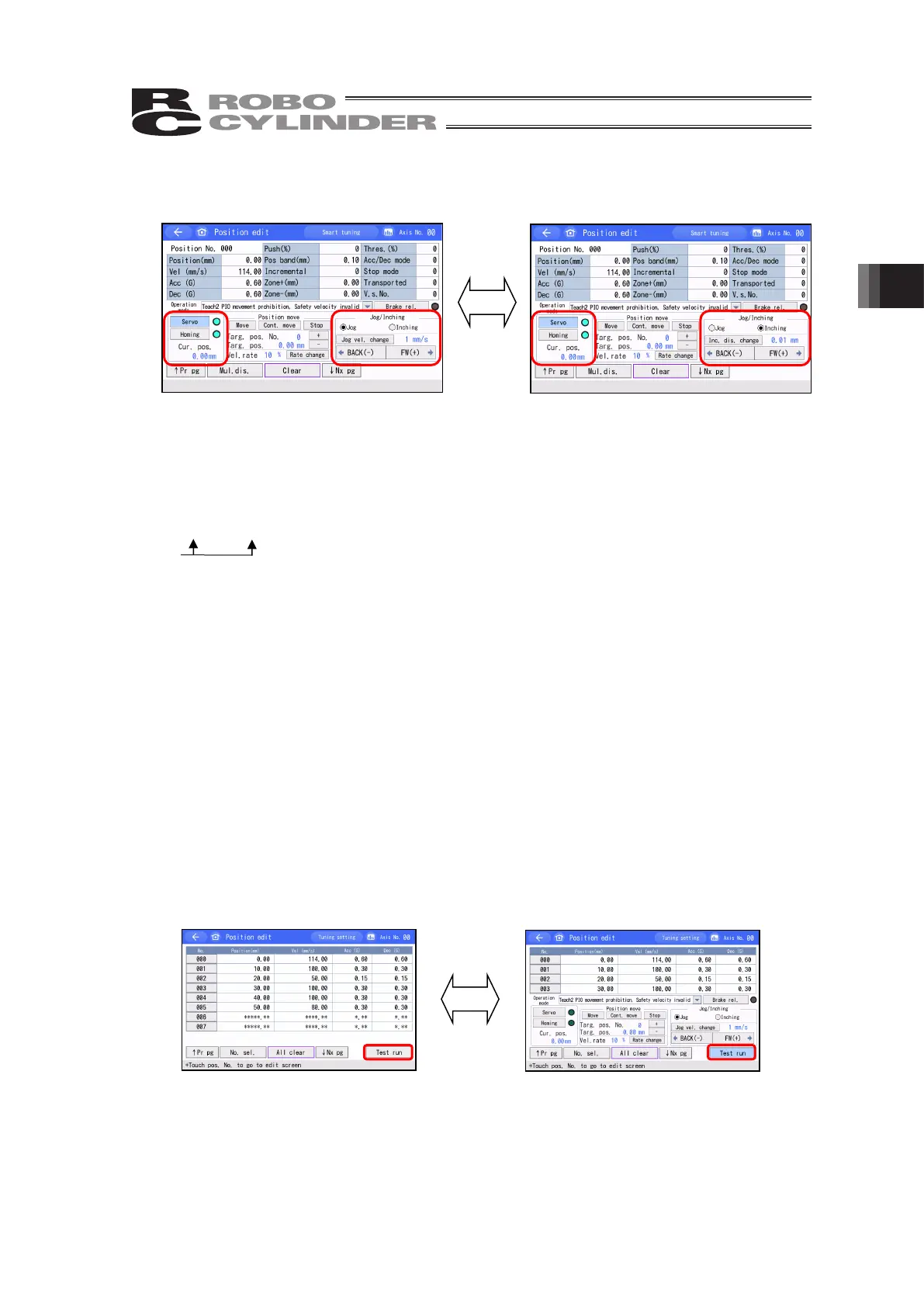

Operation in Position edit Window
 [Servo] : Touching [Servo] while the servo is OFF turns on the axis servo and
 becomes lit. Touching [Servo] while the servo is ON turns off the
axis servo and  becomes unlit.
 [Homing] : Touching [Homing] while home return is not yet completed causes
the axis to return home and  becomes lit.
  Jog  Inching : Select either JOG or Inching operation. Touch the letter, and the
circle (radio button) on the touched side will be marked with a black
dot.
While JOG Selected;
 [Jog vel. change] : The jog speed changes in the order of 1, 10, 30, 50 and 100 mm/s
every time [Jog vel. change] is touched.
 [BACK(-)], [FW(+)] : While touching, the axis moves in JOG. [BACK(-)] performs JOG
operation in negative direction, and [FW(+)] in positive direction.
While Inching Selected;
 [Inc. dis. change] : Inching distance changes in order of 0.01, 0.10, 0.50, 1.00 and
5.00mm/s for every touch on [Inc. dis. change]
 [BACK(-)], [FW(+)] : A touch performs inching operation of an axis. [BACK(-)] performs
inching operation in negative direction, and [FW(+)] in positive
direction.
Touch and hold it for two seconds, and JOG operation will be
performed in 1mm/sec. The speed increases in every 1 second
afterwards.
It is also available to perform JOG / Inching operation by touching [Test run] in the window of the
multi-display.
Touch [Test run] again and the window goes back to the multi-display.
radio button
