Over–the–Air Measurements (OTA) – LTE FDD Option 370, LTE TDD Option 371, 5G TF
Option 377, 5G NR / 5G NR EVM Conducted Option 378
About Over–the–Air (OTA) Measurements
— Table – Cell scan numeric results, including PCI, RSRP, RSRQ, RSSI, PSS,
SSS, SINR and Freq Err, for up to 5 CCs or 6 cells
— Bar Chart – Vertical power bar graph of selectable cell scan result metric
with adjustable color “heat” amplitude scale, for up to 5 CCs or 6 cells. And,
color coded based on the selected scheme (i.e., CC, PCC, and Level). Refer
to
Figure 13-2 on page 354, Figure 13-3 on page 354, and Figure 13-4 on
page 355
.
— Spectrum – Magnitude frequency spectrum (fixed span) for a selected CC
— Strip Chart – Magnitude of selectable cell scan result metric graphed over
time, for up to 5 CCs or 6 cells

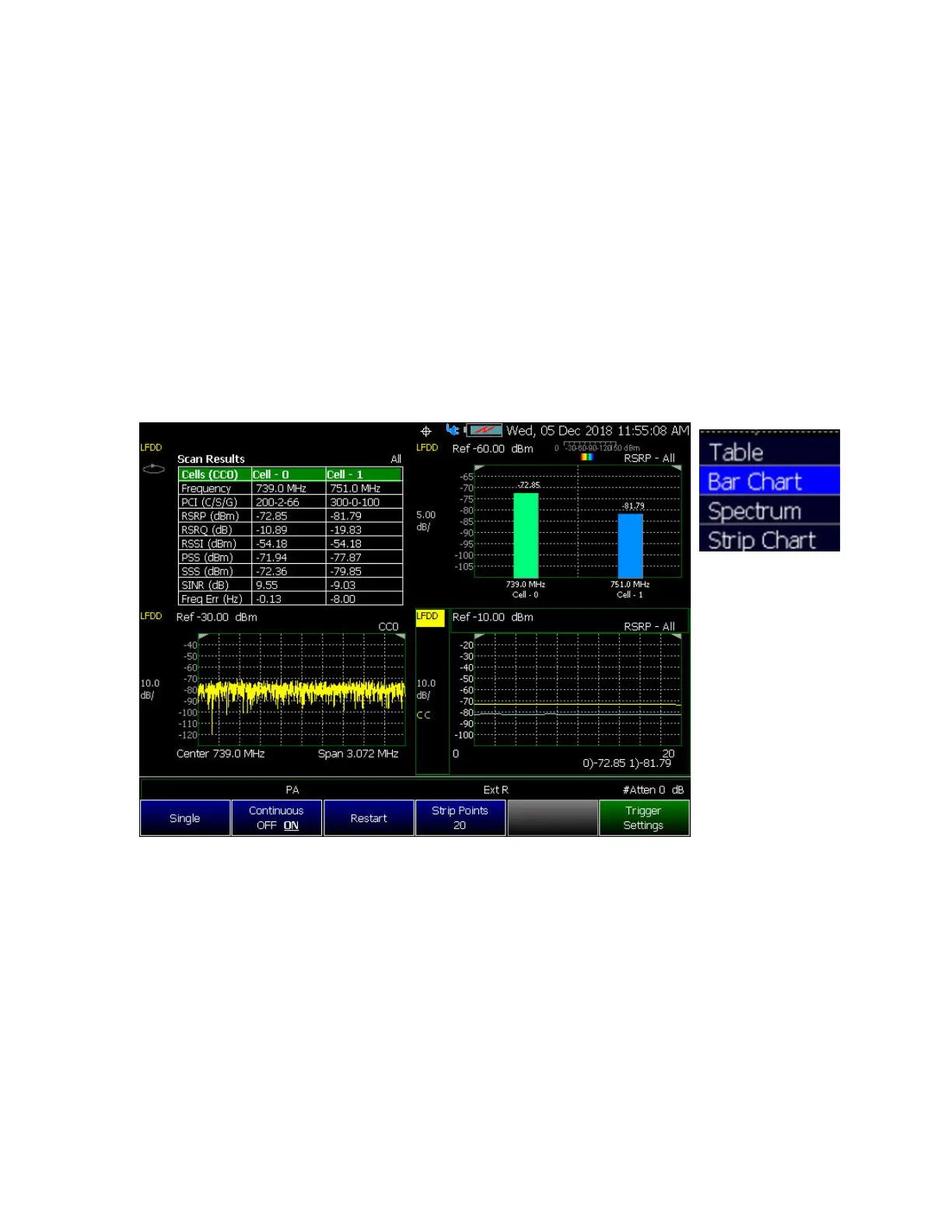

Figure 13-1 Example of the LTE FDD with Four Multiple Display Options – (LTE TDD is
similar)
