354 Keysight N9915-90020 User’s Guide

Over–the–Air Measurements (OTA) – LTE FDD Option 370, LTE TDD Option 371, 5G TF

Option 377, 5G NR / 5G NR EVM Conducted Option 378

About Over–the–Air (OTA) Measurements

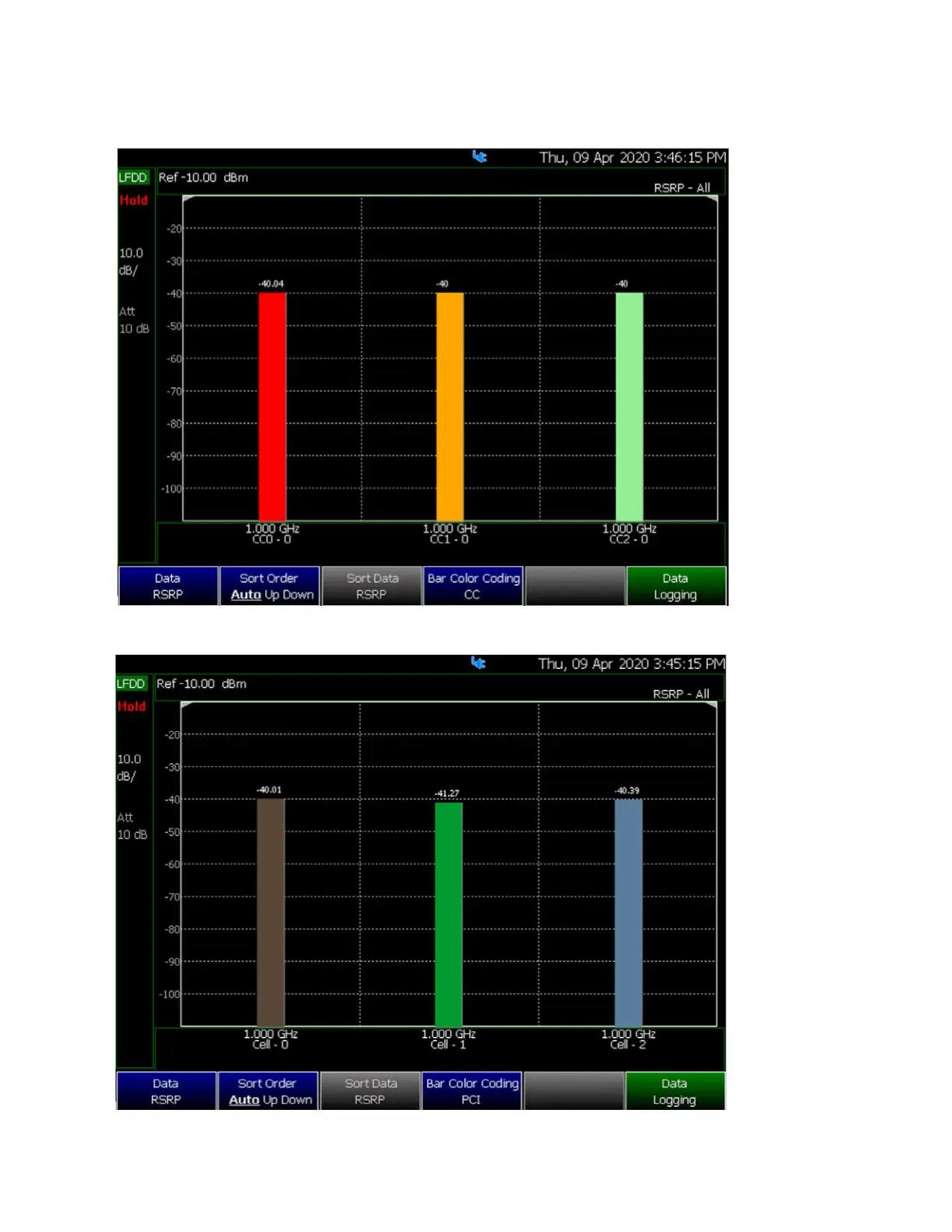

Figure 13-2 LTE FDD Bar Chart – CC Example

Figure 13-3 LTE FDD Bar Chart – PCC Example
