432 Keysight N9915-90020 User’s Guide

5G Rapid Prototype Phased Array Antenna – Option 360

About Phased Array Antenna Measurements

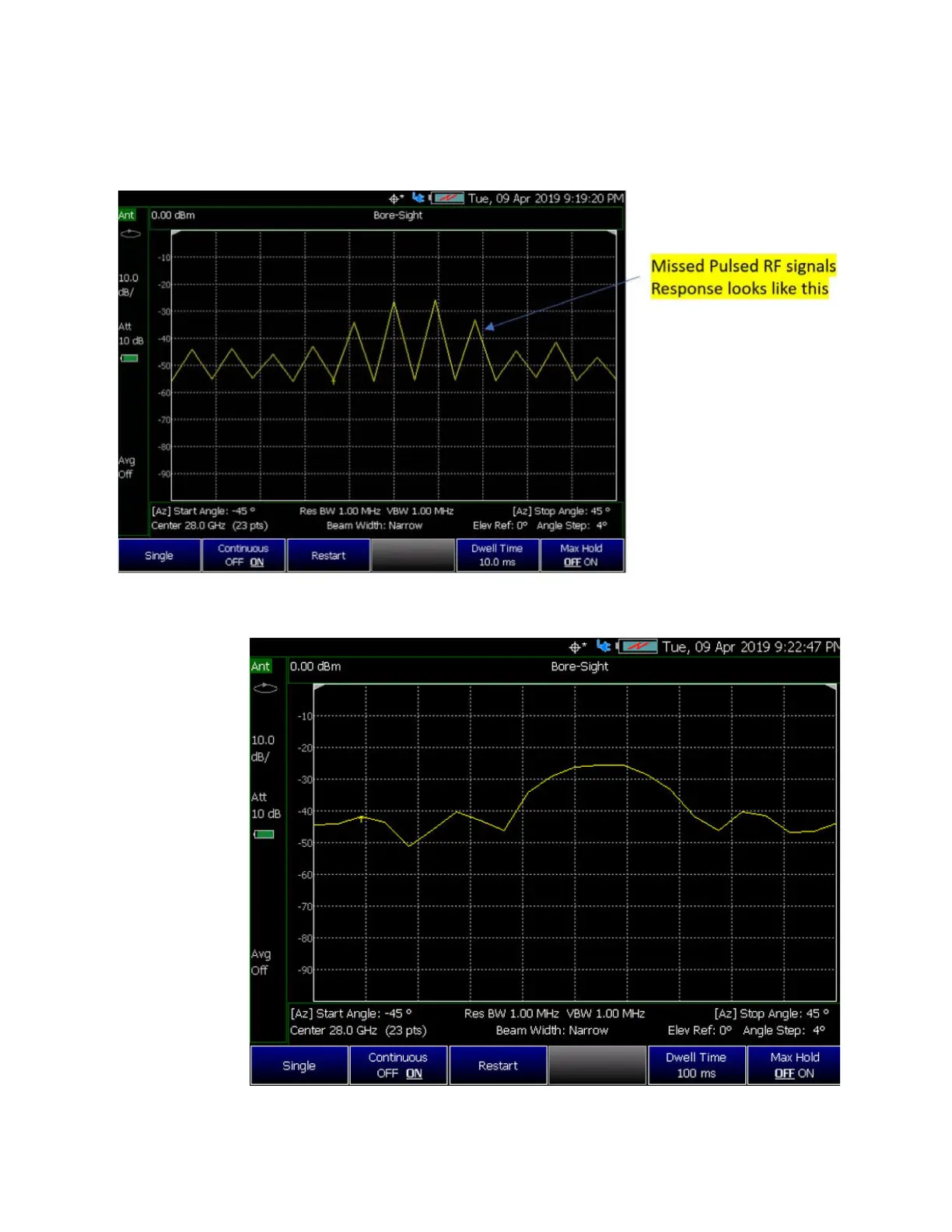

Figure 14-9 Bore-Site Measurement with Pulsed RF (Dwell Time=10 ms, Max Hold=OFF)

Figure 14-10 Bore-Site Measurement with Pulsed RF (Dwell Time=100 ms, Max Hold=OFF)
