486 Keysight N9915-90020 User’s Guide

Indoor and Outdoor Mapping – Option 352 (Requires Spectrum Analyzer Mode (Option

233), and GPS Receiver (Option 307))

Importing a .zip File to the FieldFox

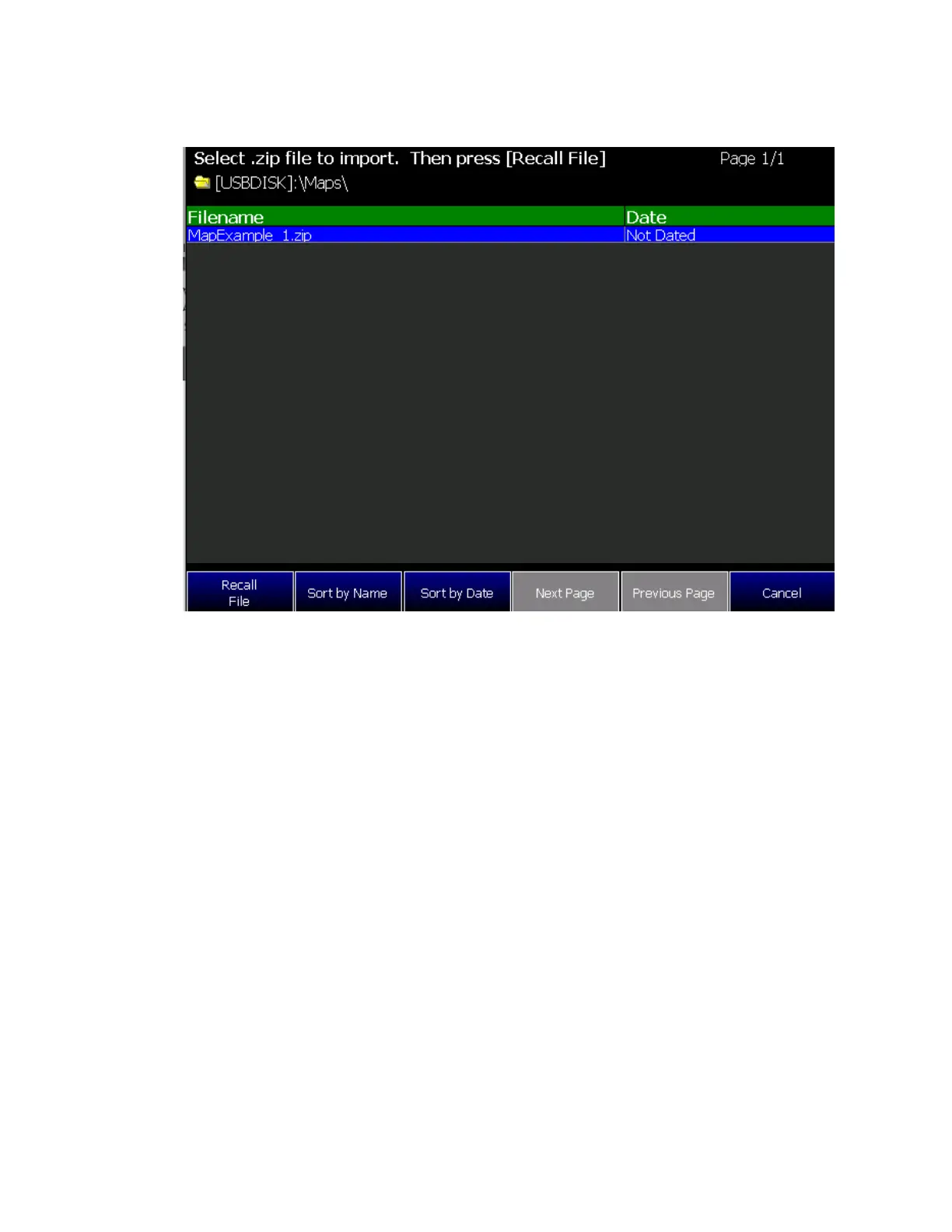

Figure 16-10 Example of a Maps *.zip Being Recalled From a USB Storage Device
