Keysight E4980A/AL Precision LCR Meter 141
Configuring Measurement Conditions (Display and Function Related Settings)

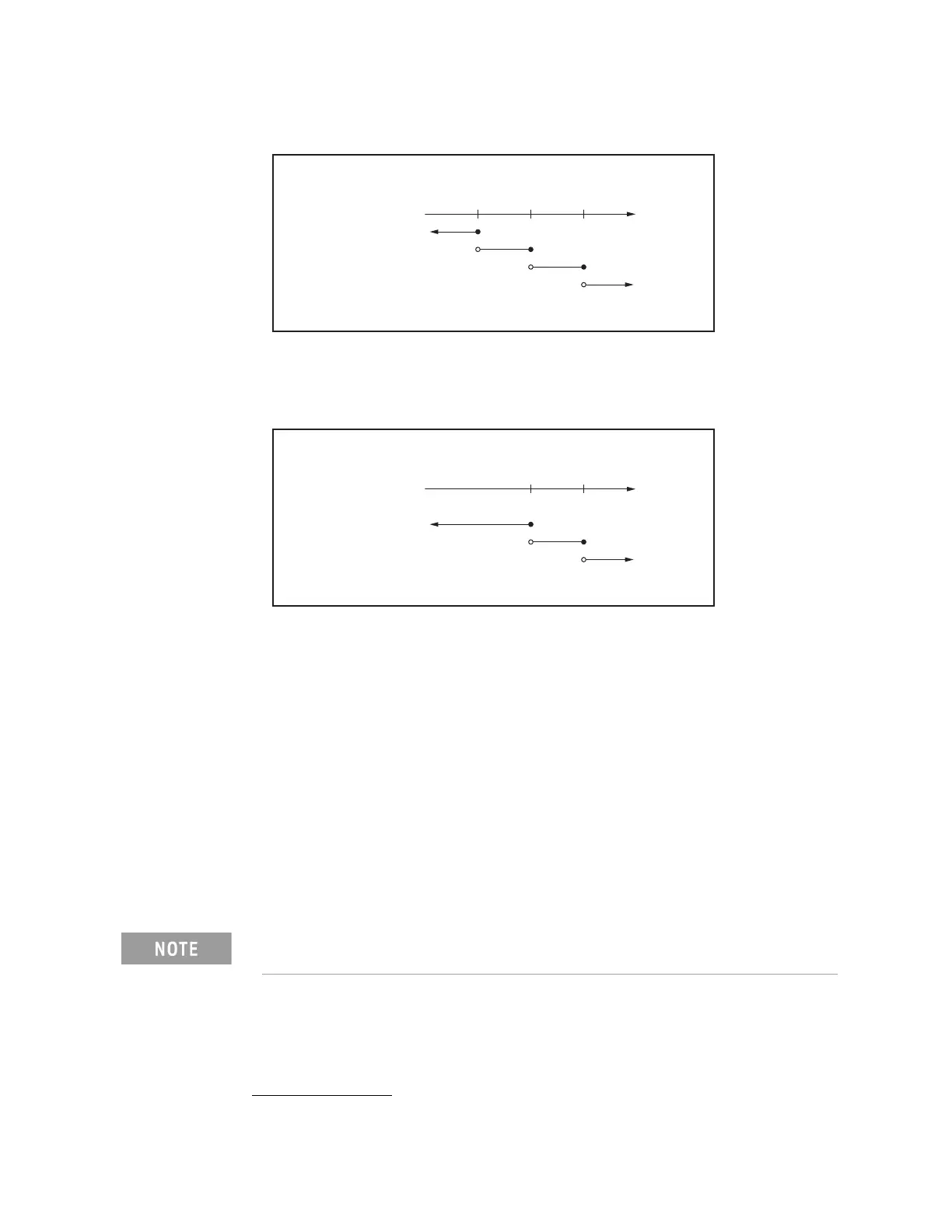

LIMIT TABLE SETUP Page
Bin 3: upper limit (H3)
•Bin 2: upper limit (H2)
Bin 3: upper limit (H3)
To configure the limit values for tolerance mode:
Step 1. Press [Meas Setup].
Step 2. Press the LIMIT TABLE softkey.
Step 3. Using the cursor keys, select the BIN 1 LOW field.
Step 4. Enter the limit value using the entry keys. When you have entered the value,
the softkey labels change to unit labels (n, u, m, x1, k).
1
If you want to clear your selected limit value, press the CLEAR softkey; also,
you can clear all of the limit values for your selected bin by pressing the
CLEAR LINE softkey.
Step 5. Repeat Step 4 using the cursor keys until you have entered the limit values
for bin 9.
㪼㪋㪐㪏㪇㪸㫌㫁㪈㪇㪍㪇
㪟㪈 㪟㪉 㪟㪊
㪙㪠㪥㩷㪉
㪙㪠㪥㩷㪊
㪦㪬㪫㩷㪦㪝㩷㪙㪠㪥㪪
㪙㪠㪥㩷㪈
㪼㪋㪐㪏㪇㪸㫌㫁㪈㪇㪍㪈
㪟㪉 㪟㪊
㪙㪠㪥㩷㪉
㪙㪠㪥㩷㪊
㪦㪬㪫㩷㪦㪝㩷㪙㪠㪥㪪
1. If the primary parameter of the measurement function is C, the softkey labels show these units: p, n, u, m, x1.
You can enter the lower and upper limit values using the HIGHx(-1) or
LOWx(-1) softkey.
