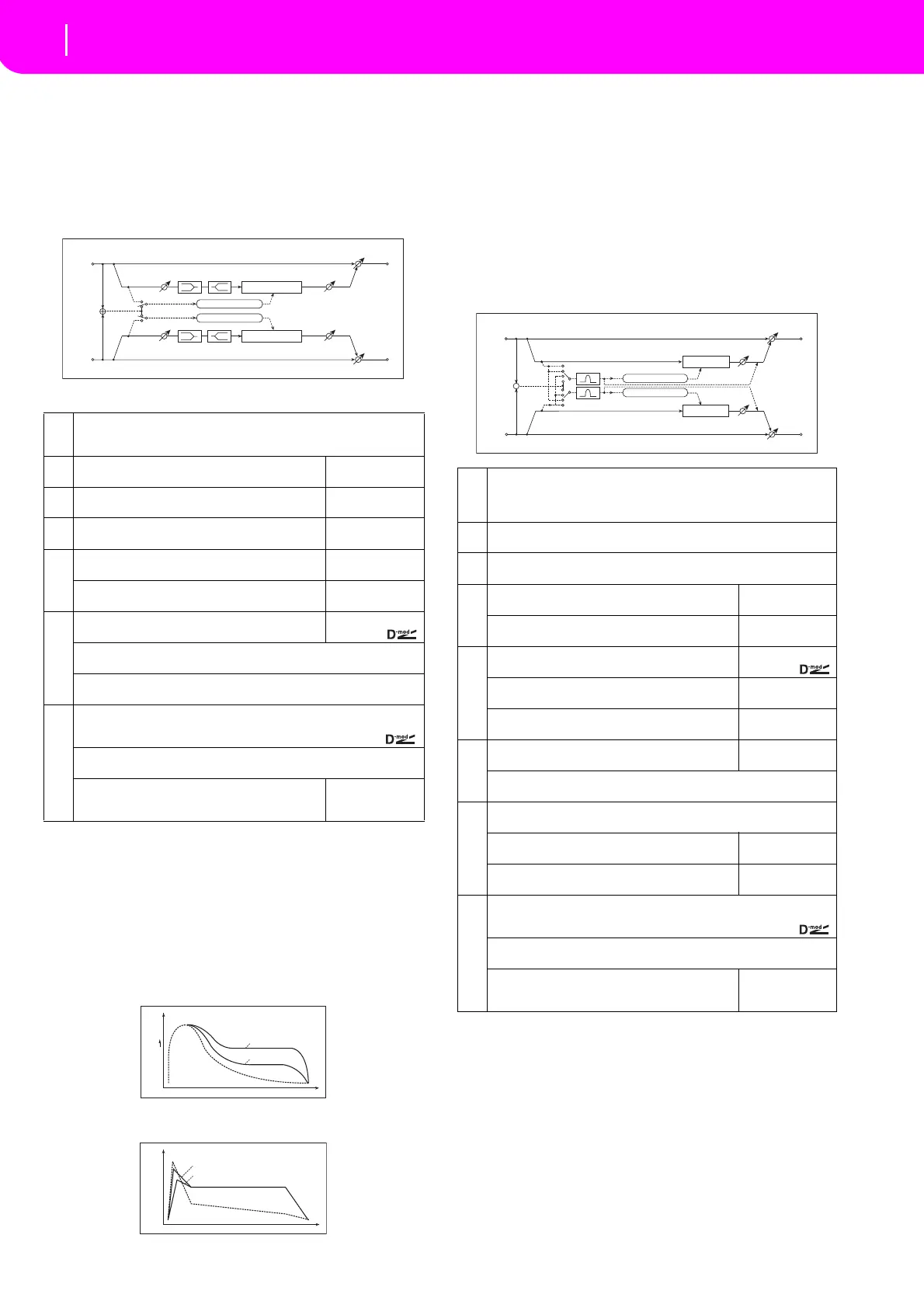

002: Compressor
(Stereo Compressor)
Thiseffectcompresses the input signal toregulate the
le
velandgivea“punchy”effect.Itisusefulforguitar,
piano, and drum sounds. This is a stereo compressor.
Youcanlinkleftandrightchannels,oruseeachchan‐
nelse
parately.
a: Envelope Select
This parameter selects whether the left and right channels are
linked to control both signals simult
aneously, or whether each
channel is controlled independently.
b: Sensitivity, f: Output Level
The “Sensitivity” parameter sets the sensitivity of the com-
pressor. If this parameter is set to a higher value, lower level
sou
nds will be boosted
. With a higher Sensitivity, the overall
volume level is higher. To adjust the final volume level, use
the “Output Level” parameter.
c: Attack
This parameter controls the attack level.
003: Limiter
(Stereo Limiter)
TheLimiterregulatestheinputsi
gnallevel.Itissimilar
totheCompressor,exceptthattheLimite rcompresses
only signals that exceed the specified level to lower
unnecessarypeak signals. TheLimiter applies a peak‐
ing‐type EQ to the tri
gger signal (which controls the
degr
ee of the Limiter effect), allowing you to set any
bandwidthtobecovered.Thiseffectisastereolimiter.
Youcanlinkleftandrightchannels,oruseeachchan‐
nelind
ividually.
a: Envelope Select
When L/R Mix is selected for this parameter, the left and right
channels are linked to control the Limiter using the mixed sig-
nal. If L Only (or R Only) i
s selected, the left and right chan-
nels are linked, and the Limiter is controlled via only the left
(or right) channel.
With L/R individually, the le
ft and right channels control the
Limiter individually.
b: Ratio, c: Threshold [dB], e: Gain Adjust [dB]
This parameter sets the signal compression “Ratio”. Com-
pression is applied only when the signal level exceeds the
“Threshold” value.
a
Envelope Select L/R Mix, L/R Individually
Determines whether the left and right channels are linked or used separately
b
Sensitivity
Sets the sensitivity
1...100
c
Attack
Sets the attack level
1...100
d
EQ Trim
Sets the EQ input level
0...100
e
Pre LEQ Gain [dB]
Sets the gain of Low EQ
–15.0...+15.0dB
Pre HEQ Gain [dB]
Sets the gain of High EQ
–15.0...+15.0dB
f
Output Level
Sets the output level of the compressor
0...100
,
Src Off...Tempo
Selects the modulation source for the compressor output level
Amt –100...+100
Sets the modulation amount of the compressor output level
g
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 175
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 175
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
EQ Trim
EQ Trim
LEQ HEQ
LEQ
HEQ
Compressor
Compressor
Envelope Select
Output Level
Output Level
Envelope - Control
Envelope - Control
Sensitivity=100
Sensitivity=40
Dry
Wet
Time
Level
Compressor - Sensitivity
Louder
Dry
Wet
Time
Level
Attack=80
Attack=20
Compressor - Attack
a
Envelope Select L/R Mix, L Only, R Only, L/R Individually
Selects from linking both channels, controlling only from left channel, only
from the right channel, or controlling each channel individually
b
Ratio 1.0:1...50.0:1, Inf:1
Set
s the signal compression ratio
c
Threshold [dB] –40...0dB
Sets the level above which the compressor is applied
d
Attack
Sets the attack time
1...100
Release
Sets the release time
1...100
e
Gain Adjust [dB]
Sets the output gain
–Inf, –38...+24dB
,
Src
Selects the modulation source for the output gain
Off...Tempo
Amt
Sets the modulation amount of the output gain
–63...+63
f
Side PEQ Insert
Toggles between on/off of the trigger signal’s EQ
Off, On
Trigger Monitor Off, On
Switches between effect output monitor and trigger signal monitor
g
Side PEQ Cutoff [Hz] 20...12.00kHz
Sets the EQ center frequency for the trigger signal
Q
Sets the EQ bandwidth for the trigger signal
0.5...10.0
Gain [dB]
Sets the EQ gain for the trigger signal
–18.0...+18.0dB
h
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 175
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 175
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Limiter
Limiter
Envelope Select
Gain Adjust
Gain Adjust
Side PEQ
Envelope - Control
Envelope - Control
Trigger Monitor
+
To Next Page
