178

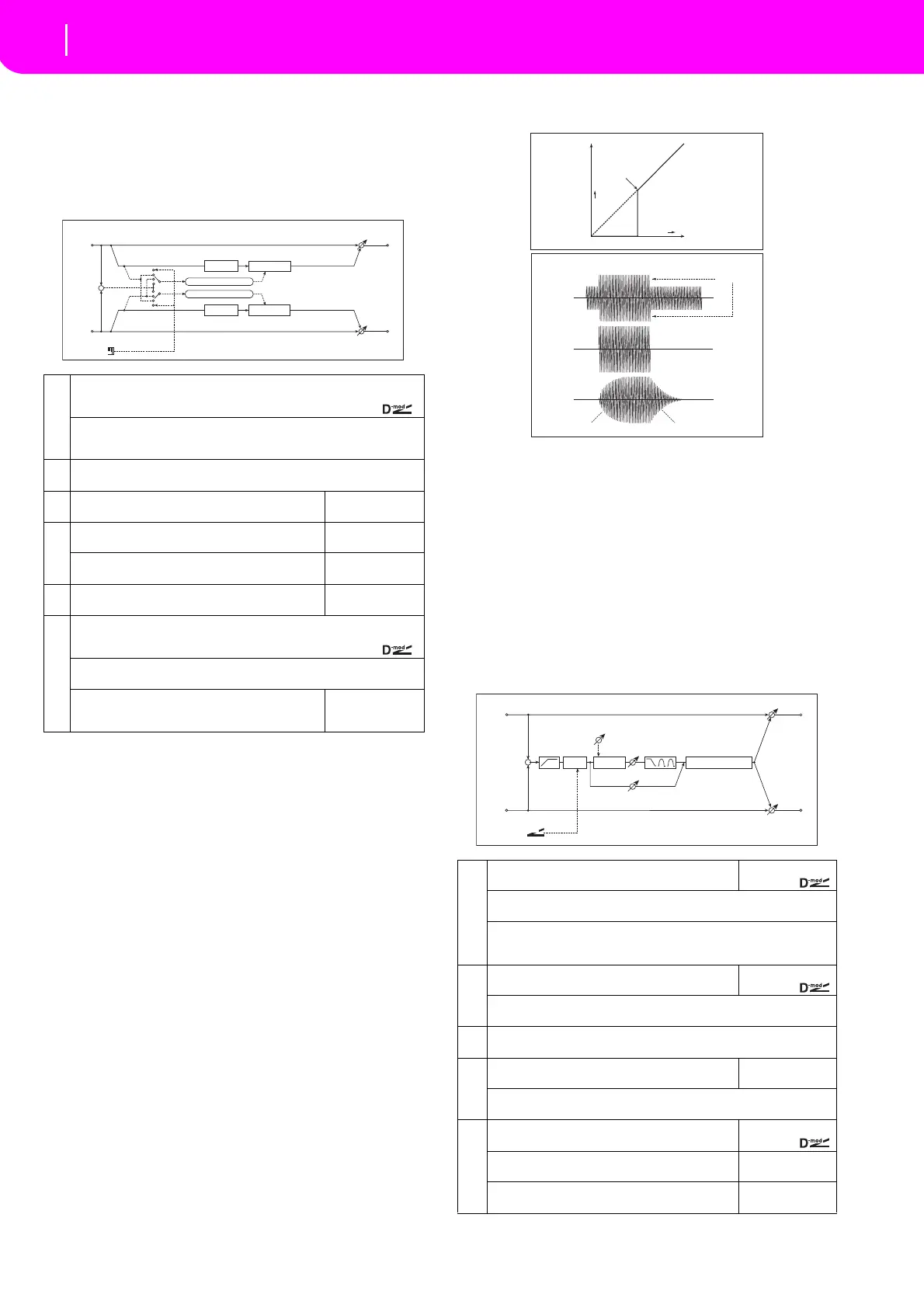

005: Gate
(Stereo Gate)
This effect mutes the input signal if its level is low
er
thanthe specifiedlevel.Italsoreversesthe onand off
operationofthe gate, and usesNoteOn and Offmes‐
sagestoturnthegat
eonandoff.
a: Envelope Select, a: Src
The “Envelope Select” parameter selects whether the gate
on/off is triggered by the level of the input signal, or controlled
directly by the modulation source. The Src parameter speci-
fies the modulation source, selected from Off to
Gate2+Dpmr.
With “Envelope Select” = L/
R Mix, the left a
nd right channel
signal mixture will trigger the gate on/off. When L Only or R
Only is selected, the gate is controlled by either of the chan-
nel signals.
b: Polarity
This parameter reverses the Gate on/off operation. With a
negative value, the g
ate is closed when the input signal level
exceeds the Threshold. The gate operation controlled by the
modulation source is also reversed.
c: Threshold, d: Attack, d: Release
This parameter sets the signal level below which Gate is
ap
plied when “Envelope Se
lect” is set to L/R Mix, L Only, or
R Only.
The Attack and Release parameters set the Gate attack time
a
nd release time.
e: De
lay Time
This parameter sets the delay time of the Gate input. If the
sound has a very fast att
ack, increase the delay time so that
the signal will be input after the Gate is opened. This will pre-
serve the attack part of the sound.
006: OD/HGainWah
(Overdrive/Hi.Gain Wah)
ThisdistortioneffectutilizesanOverdr
ivemodeanda
Hi‐Gain mode. Controlling the wah effect, the 3‐band
EQ, and the amp simulation will allow you to create
versatile distortion sounds. This effect is suitable for
guitarandorgansounds.
a
Envelope Select D-mod, L/R Mix, L Only, R Only
Selects from Control via the modulation source, mixing the left and right sig-
nals, Only left, and Only right ,
Src Off...Gate2+Dmpr
Selects the modulation source that controls the gate when Envelope Select =
D-mo
d
b
Polarity +, –
Switches between non-reversed and reversed Gate
on/off
c
Threshold
Sets the level to which the Gate is applied
0...100
d
Attack
Sets the attack time
1...100
Release
Sets the release time
1...100
e
Delay Time [msec]
Sets the delay time of the gate input
0...100msec
f
Wet/Dry Dry, 1:99...99:1, Wet
Tab le , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Tab le , “Selects the modulation source of the effect balance,” on page 175
Amt
Tab le , “Sets the modulation amount of the effect bal-
ance,” on page 175
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
+
Gate
Gate
Envelope Select
Envelope - Control
Envelope - Control
Delay
Delay
Gate+Sus
a
Wah
Switches Wah on/off
Off, On
,
Src Off...Tempo
Selects the modulation source that switches the Wah on and off
Sw Toggle, Moment
Selects the switching mode for the modulation source that switches the Wah
on and
off
b
Wah Sweep Range
Sets the range of W
ah
–10...+10
,
Wah Sweep Src Off...Tempo
Selects the modulation source that controls the Wah
c
Drive Mode Overdrive, Hi-Gain
Switches between overdrive and hi-gain distortion
d
Drive
Sets the degree of distortion
1...100
Pre Low-cut 0...10
Sets the low range cut amount of the distortion input
e
Output Level
Sets the output level
0...50
,
Src
Selects the modulation source for the output level
Off...Tempo
Amt
Sets the modulation amount of the output level
–50...+50
Input Level
Output Level
Threshold
Louder
Louder
Threshold
Attack=1
Release=1
Attack=100
Release=100
Dry
Wet
Wet
Attack
Release
Gate - Attack / Release
Gate - Threshold
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Amp Simulation
3 Band PEQ
Output Level
Direct Mix
Pre Low-cut
D
-mod
Wah
Mode: Overdrive / Hi-Gain
Drive
Driver
