179
a: Wah
The Wah parameter switches the wah effect on/off.
a: Sw
This parameter sets how the wah effect is switched on and off
via the modulation source.
When “Sw” = Moment, the wah effect is usually turned of
f. It
is turned on only when you press the pedal or operate the joy-
stick.
When a value for the modulation source is less than 64, “off” speed
is selected, and when the value is 64 or higher, “on” is selected.
When “Sw” = Toggle, the wah effect is switched between on
and off each time you press the pedal or operate the joystick.
The switch will be turned on/off each time the value of the modula-
tion source exceeds 64.
b: Wah Sweep Range, b: Wah Sweep Src
This parameter sets the sweep range of the wah center fre-
quency. A negative value will reverse the direction of sweep.
The w
ah center frequency can be controlled by the modula-
tion source specified in the “Wah Sweep Src” parameter.
d: Drive, e: Output Level
The degree of distortion is determined by the level of in
put
signal and the setting of “Drive”. Raising the “Drive” setting
will cause the entire volume level to increase. Use the “Output
Level” parameter to adjust the volume level. The “Output
Level” parameter uses the signal level input to the 3-Band
EQ. If clipping occurs at the 3-Band EQ, adjust the “Output
Level” parameter.
d: Pre Low-cut
Cutting the signal in the low range before it is input to the Dis-
tortion will create a sharp distortion.
g: Q, h: Q
These parameters set the bandwidth of each equalizer. The
high
er the value, the narrower
the band becomes.

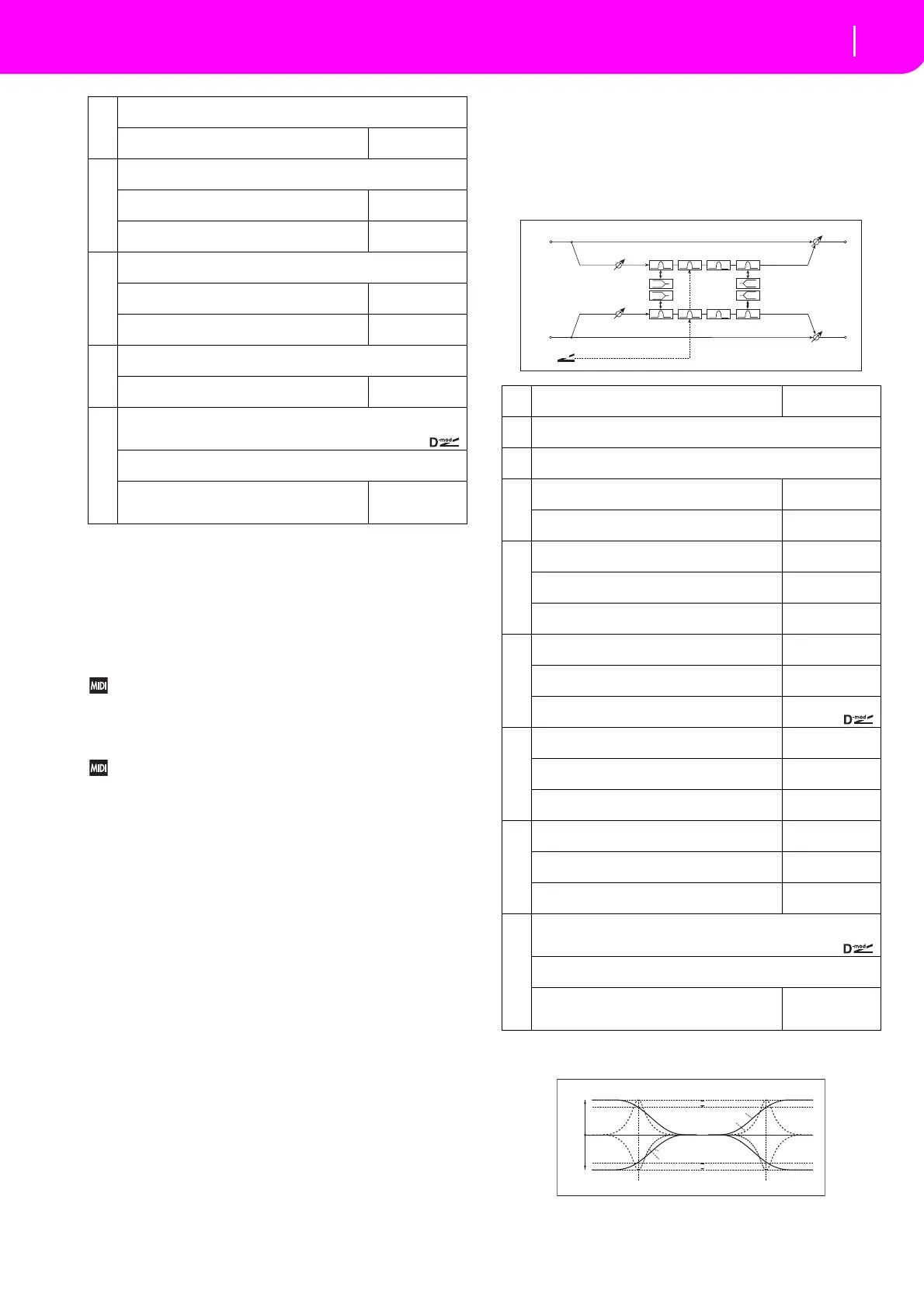

007: Param.4B Eq
(Stereo Parametric 4-Band EQ)
This is a stereo 4‐band parametric equalizer. You can
selectpeakingtypeorshel
vingtype forBand1 and4.
ThegainofBand2canbecontrolledbydynamicmod‐
ulation.
b: Band1 Type, c: Band4 Type
Selects a filter type for Band 1 and 4.
f
Low Cutoff [Hz] 20...1.0kHz
Sets the center frequency for Low EQ (shelving type)
Gain [dB]
Ta bl e , “Sets the gain of Low EQ,” on page 176
–18...+18dB
g
Mid1 Cutoff [Hz] 300...10.00kHz
Sets the center frequency for Mid/High EQ 1 (peaking type)
Q
Sets the band width of Mid/High EQ 1
0.5...10.0
Gain [dB]
Sets the gain of Mid/High EQ 1
–18...+18dB
h
Mid2 Cutoff [Hz] 500...20.00kHz
Sets the center frequency for Mid/High EQ 2 (peaking type)
Q
Sets the band width of Mid/High EQ 2
0.5...10.0
Gain [dB]
Sets the gain of Mid/High EQ 2
–18...+18dB
i
Direct Mix 0...50
Sets the amount of the dry sound mixed to the distortion
Speaker Simulation
Switches the speaker simulation on/off
Off, On
j
Wet/Dry Dry, 1:99...99:1, Wet
Ta bl e , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Ta bl e , “Selects the modulation source of the effect balance,” on page 175
Amt
Ta bl e , “Sets the modulation amount of the effect bal-
ance,” on page 175
–100...+100
a
Trim
Sets the input level
0...100
b
Band1 Type Peaking, Shelving-Low
Selects the type of Band 1
c
Band4 Type Peaking, Shelving-High
Selects the type of Band 4
d
Band2 Dynamic Gain Src
Selects the modulation source of the Band 2 gain
Off...Tempo
Amt [dB]
Sets the modulation amount of Band 2 gain
–18...+18dB
e
Band1 Cutoff [Hz]
Sets the center frequency of Band 1
20...1.00kHz
Q
Sets the bandwidth of Band 1
0.5...10.0
Fx:006
Gain [dB]
Sets the gain of Band 1
–18.0...+18.0dB
f
Band2 Cutoff [Hz]
Sets the center frequency of Band 2
50...10.00kHz
Q
Sets the bandwidth of Band 2
0.5...10.0
Fx:006
Gain [dB]
Sets the gain of Band 2
–18.0...+18.0dB
,
g
Band3 Cutoff [Hz]
Sets the center frequency of Band 3
300...10.00kHz
Q
Sets the bandwidth of Band 3
0.5...10.0
Fx:006
Gain [dB]
Sets the gain of Band 3
–18.0...+18.0dB
h
Band4 Cutoff [Hz]
Sets the center frequency of Band 4
500...20.00kHz
Q
Sets the bandwidth of Band 4
0.5...10.0
Fx:006
Gain [dB]
Sets the gain of Band 4
–18.0...+18.0dB
i
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 175
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 175
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Band1
Band2
Band3
Band4
PEQ
PEQ PEQ PEQ
LEQ
LEQ
HEQ
HEQ
PEQ
PEQ PEQ PEQ
Trim
Trim
D
-mod
3dB
3dB
Band1 Cutoff
Band4 Cutoff
0dB
+Gain
–Gain
Band1 Type=Peaking
Band1 Type=Shelving Low
Band4 Type=Peaking
Band4 Type=Shelving High
Parametric 4EQ - Band1, Band4 Type
