191

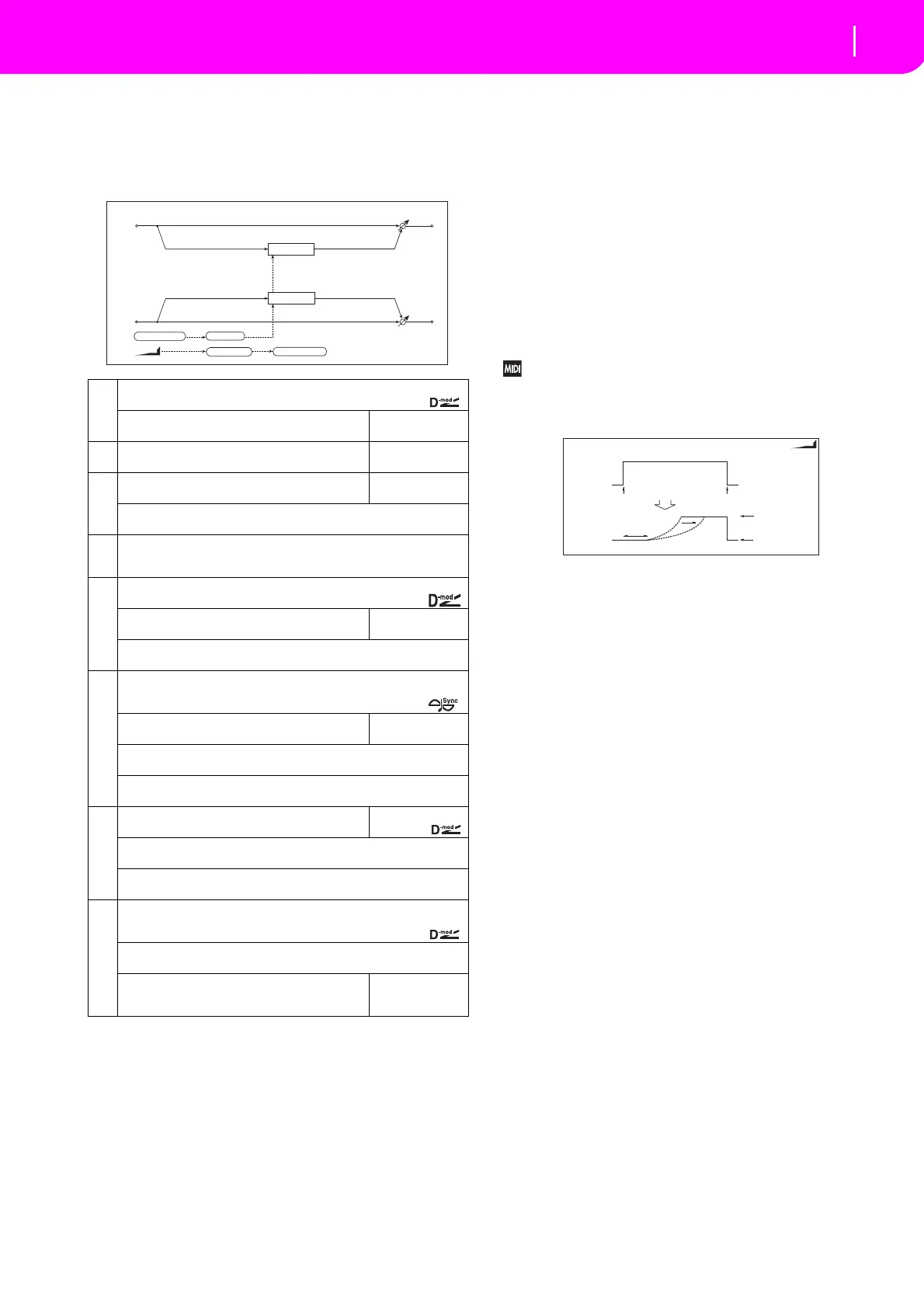

027: Vibrato
(Stereo Vibrato)
Thiseffectcausesthepitchoftheinputsignaltoshim‐
mer. Usi
ng the AutoFade allows yo
u to increase or
decreasetheshimmeringspeed.
d: LFO Frequency Mod, a: AUTOFADE Src, a: Fade-In
Rate
b: Fade-In Delay [msec]
When “LFO Frequency Mod” is set to AUTOFADE, you can
use the modul
ation source selected in “AUTO FADE Src” as a
trigger to automatically fade in the modulation amount. When
“BPM/MIDI Sync” is set to On, you cannot use this.
The “Fade-in Rate” parameter specifies the rate of fade-in.
The “Fade-in Delay” pa
rameter determines the time from
AutoFade modulation source ON until the fade-in starts.
The following is an example of fade-in where the LFO speed
is increased from “1.0Hz” to “4.0Hz” when a note-on message
is received.
“AUTOF
ADE Src”=Gate1, “LFO Frequency [Hz]”=1.0
“LFO Frequency Mod”=AUTOF
ADE, “Amt”=3.0
The effect is off when a value for the dynamic modulation source
specified for the “AUTOFADE Src” parameter is smaller than 64,
and the effect is on when the value is 64 or higher. The AutoFade
function is triggered when the value changes from 63 or smaller to
64 or higher.
a
AUTOFADE Src Off...Tempo
Selects the modulation source that starts AutoFade ,
Fade-In Rate
Sets the rate of fade-in
1...100
b
Fade-In Delay [msec]
Sets the fade-in delay time
00...2000msec
c
LFO Waveform
Selects LFO Waveform
Triangle, Sine
LFO Shape –100...+100
Determines how much the LFO waveform is changed Fx:020
d
LFO Frequency Mod D-mod, AUTOFADE
Switches between D-mod and AUTOFADE for the LFO frequency modula-
tion
e
LFO Frequency [Hz] 0.02...20.00Hz
Sets the LFO speed Fx:009,
Src
Selects the modulation source of LFO speed
Off...Tempo
Amt –20.00...+20.00Hz
Sets the modulation amount of LFO speed
f
BPM/MIDI Sync Off, On
Switches between using the frequency of the LFO speed and using the
t
empo and notes Fx:009,
BPM
Selects MID
I Clock and assigns tempo
MIDI, 40...240
Fx:009
Base Note
Selects the type of notes that specify the LFO speed Fx:009
Times x1...x16
Sets the number of notes that specify the LFO speed Fx:009
g
Depth
Sets the depth of LFO modulation
0...100
Src Off...Tempo
Selects the modulation source of the LFO modulation depth
Amt –100...+100
Sets the modulation amount of the LFO modulation depth
h
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 175
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 175
–100...+100
Vibrato
Vibrato
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
LFO: Tri / Sine
LFO Shape
Fade-In Delay
LFO Frequency
AutoFade
AUTOFADE
AutoFade
Note On
All Note Off
Fade-In Rate
AUTOFADE Src=Gate1
LFO Frequency[Hz]=1.0
LFO Freq. Mod=AUTOFADE
Amt=+3.0
LFO Frequency
=1.0+3.0=4.0Hz
LFO Frequency
=1.0Hz
Gate1 Signal
AUTOFADE
Fade-In Dealy
