177
Adjust the output level using the “Gain Adjust” parameter,
since compression causes the entire level to be reduced.
d: Attack, d: Release
These parameters set the attack time and release time. A
higher attack time will cause the compression to be applied
more slowly.
f: Side PEQ Insert, g: Side PEQ Cutoff [Hz], g: Q, g: Gain
[dB]
These parameters are
used to set the EQ applied to the trig-
ger signal.
The Limiter determines whether the compression is applied or
not, based on the post-EQ
trigger signal. Setting the equalizer
allows you to set the Limiter to respond to any frequency
band.
f: Trigger Monitor
Setting this parameter On w
ill cause the trigger signa
l to be
output, instead of the effect sound. Use this parameter to
check the trigger signal with EQ applied.
Usually, set this to Off.

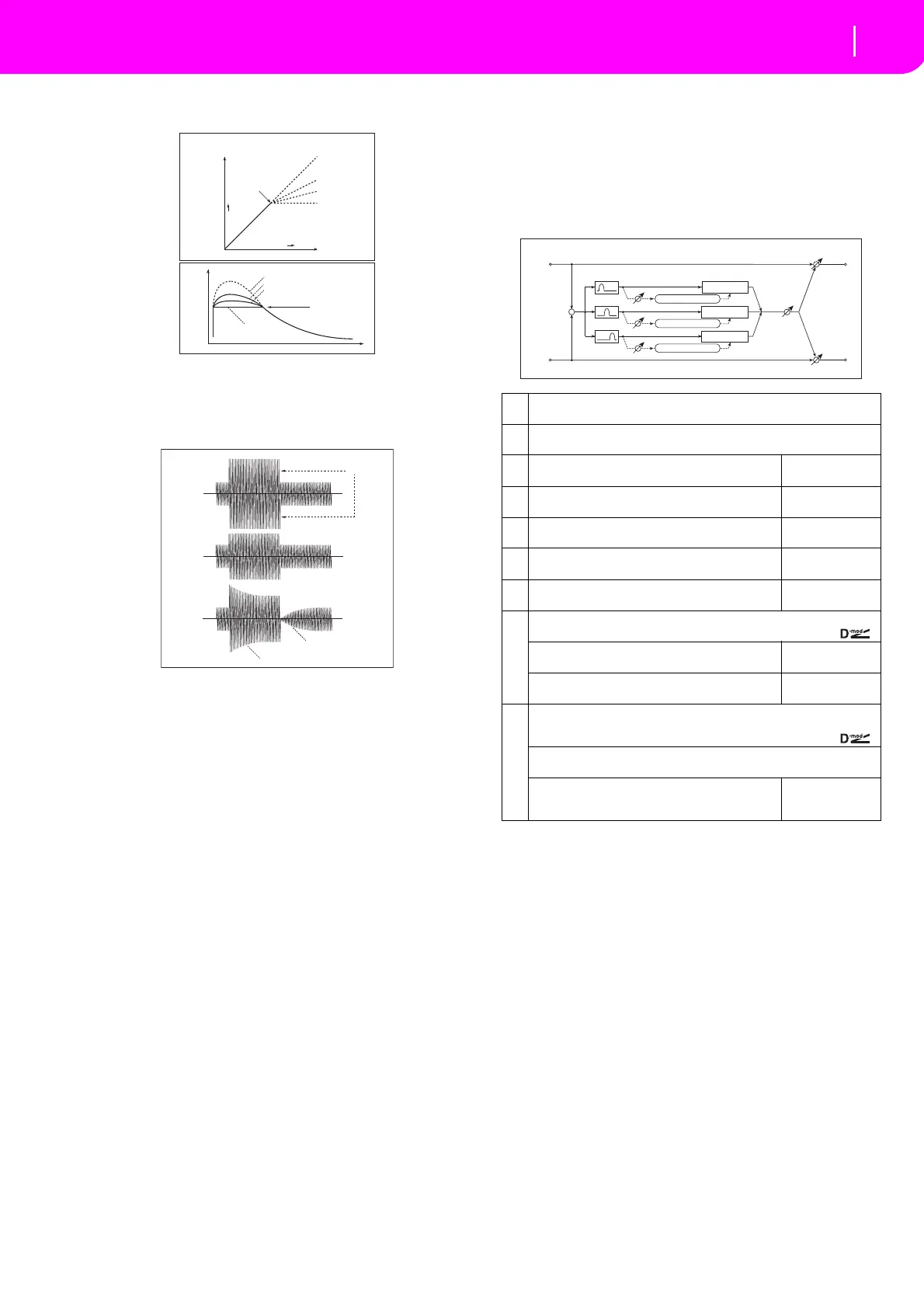

004: MBandLimit
(Multiband Limiter)
This effect applies the Limiter to the low range, mid
range,andhighrangeofthe
inputsignal.Youcancon‐
troldynamicsforeachrangetoadjustthesoundpres‐
su
reofthelow range,midrange,and highrangeina
differentwa
yfromtheEQ.
e: Low Offset [dB], f: Mid Offset [dB], g: High Offset [dB]
These parameters set the gain of the trigger signal.
For example, if you do not want to apply compression to the
high range, reduce the “High Offset” value down below the
“Threshold” level. In this way, the high range limiter will not
respond, and compression will not be applied.
Input Level
Output Level
Threshold
Ratio=1.0 : 1
Ratio=2.0 : 1
Ratio=4.0 : 1
Ration=Inf : 1
Louder
Louder
Time
Level
Threshold
Ratio=Inf : 1
Ratio=2.0 : 1
Ratio=4.0 : 1
Dry
Ratio=1.0 : 1
Limiter - Threshold / Ratio
Threshold
Ratio=Inf : 1
Attack=1
Release=1
Ratio=Inf : 1
Attack=100
Release=100
Dry
Wet
Wet
Release
Attack
Limiter - Attack / Release
a
Ratio 1.0:1...50.0:1, Inf:1
Sets the signal compression ratio Fx:003
b
Threshold [dB] –40...0dB
Sets the level above which the compressor is applied Fx:003
c
Attack
Sets the attack time
1...100
Fx:003
d
Release
Sets the release time
1...100
Fx:003
e
Low Offset [dB]
Gain of the low-range trigger signal
–40...0dB
f
Mid Offset [dB]
Gain of the mid-range trigger signal
–40...0dB
g
High Offset [dB]
Gain of the high-range trigger signal
–40...0dB
h
Gain Adjust [dB] –Inf, –38...+24dB
Sets the output gain Fx:003,
Src
Selects the modulation source for the output gain
Off...Tempo
Amt
Sets the modulation amount of the output gain
–63...+63
i
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 175
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 175
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
Gain Adjust
Mid Offset
Low Offset
High Offset
Limiter
Envelope - Control
Envelope - Control
Envelope - Control
Limiter
Limiter
Low
Mid
High
Band-Pass Filters
+
To Next Page
