175
18. EFFECTS
microARRANGER is equipped with four powerful
Effect Processors (A, B, C, D). You can send them the
internaltracks.

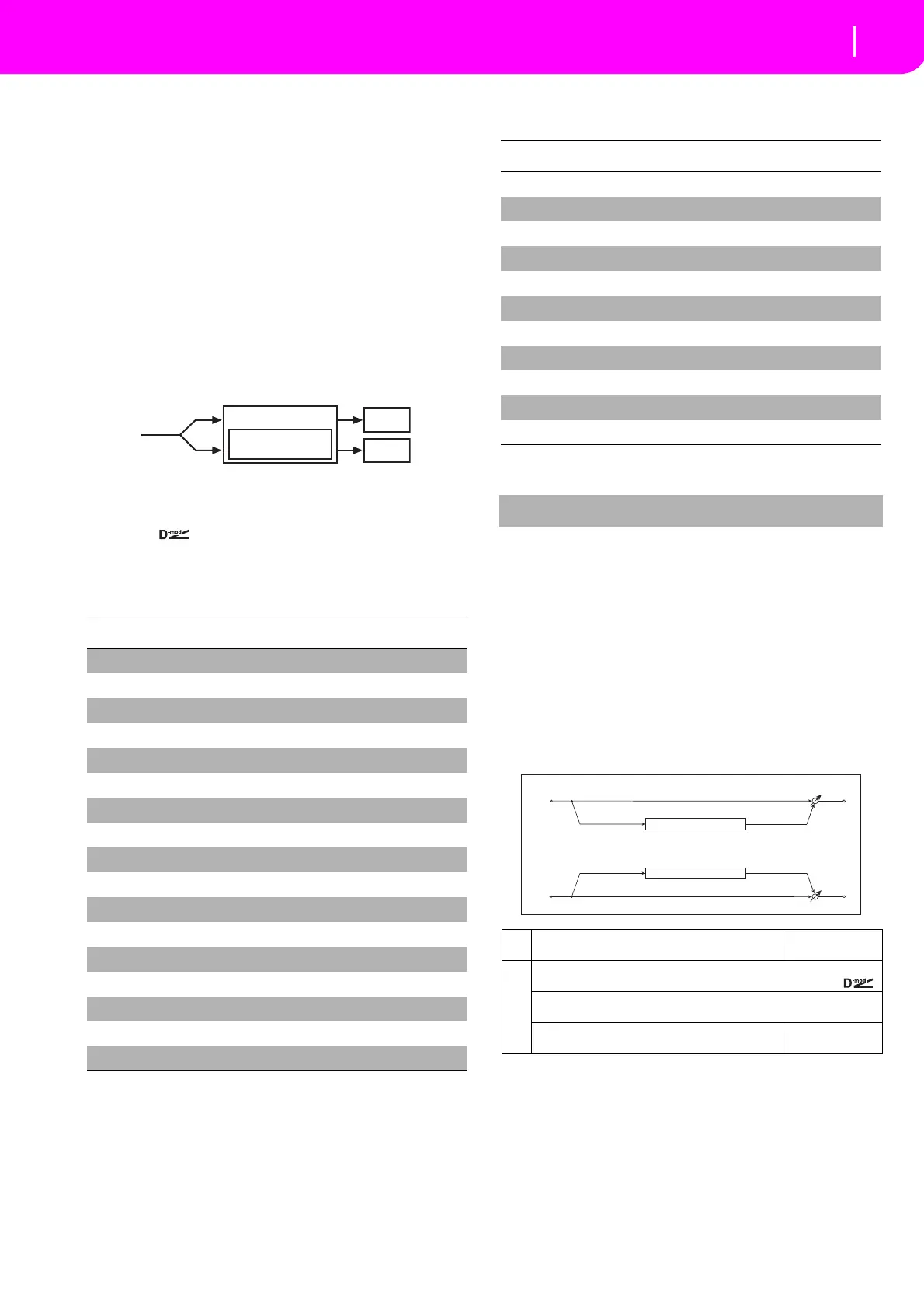

DIAGRAMS
The following instructions show the signal path dia‐
gram for each of the effect types. The sig
nal coming
from the tracks (Send) is mono. Before entering an
effect processor, it is split in two “wires” (Left and
Right),andprocessedinstereo.Thesignalisthenout‐
putinst
ereofromtheeffectprocessor,andsenttothe
Mix
output(Left&Right,theheaphonesortheinternal
speakers).
DYNAMIC MODULATION SOURCES
Whenthe symbolisencoutered,aDynamicMod‐
ulationcanbeappliedtothecorrespondingparameter.
The following ta
ble shows the available modulation
sources.
Filter and dynamics control effects
000: No Effect
Select this option when you do not use any effects.
Whenthisoptionisselected,theeffectismuted.
001: Amp Simulat
(Stereo Amp Simulation)
Thiseffectsimulatesthefrequencyresponsechar
acter‐
istics of guitar amplifiers. It is also effective for organ
anddrumsounds.
Modulation source Note
Off No modulation
Gate1
Gate1+Dmpr
Gate2
Gate2+Dmpr
Note Nr Note Number
Velocity Note Velocity
ATouch After Touch
JS X Joystick Left/Right
JS+Y: CC#01
Joystick Forward
JS-Y: CC#02 Joystick Backward
MIDI(CC#04)
MIDI(CC#12)
MIDI(CC#13)
MIDI(CC#16)
MIDI(CC#18)
MIDI(CC#17)
Send
Right
Left
Effect Block
Diagram
MIDI(CC#19)
MIDI(CC#20)
MIDI(CC#21)
Damper: #64
Prta.SW: #65 Portamento Switch
Sostenu: #66 Sostenuto Pedal
MIDI(CC#80)
MIDI(CC#81)
MIDI(CC#82)
MIDI(CC#83)
Te m po
FILTER/DYNAMIC
a
Amplifier Type
Selects the type of guitar amplifier
SS, EL84, 6L6
b
Wet/Dry Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
Src Off...Tempo
Selects the modulation source of the effect balance
Amt
Sets the modulation amount of the effect balance
–100...+100
Modulation source Note
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Amp Simulation Filter
Amp Simulation Filter
