Korg microARRANGER User Manual

209

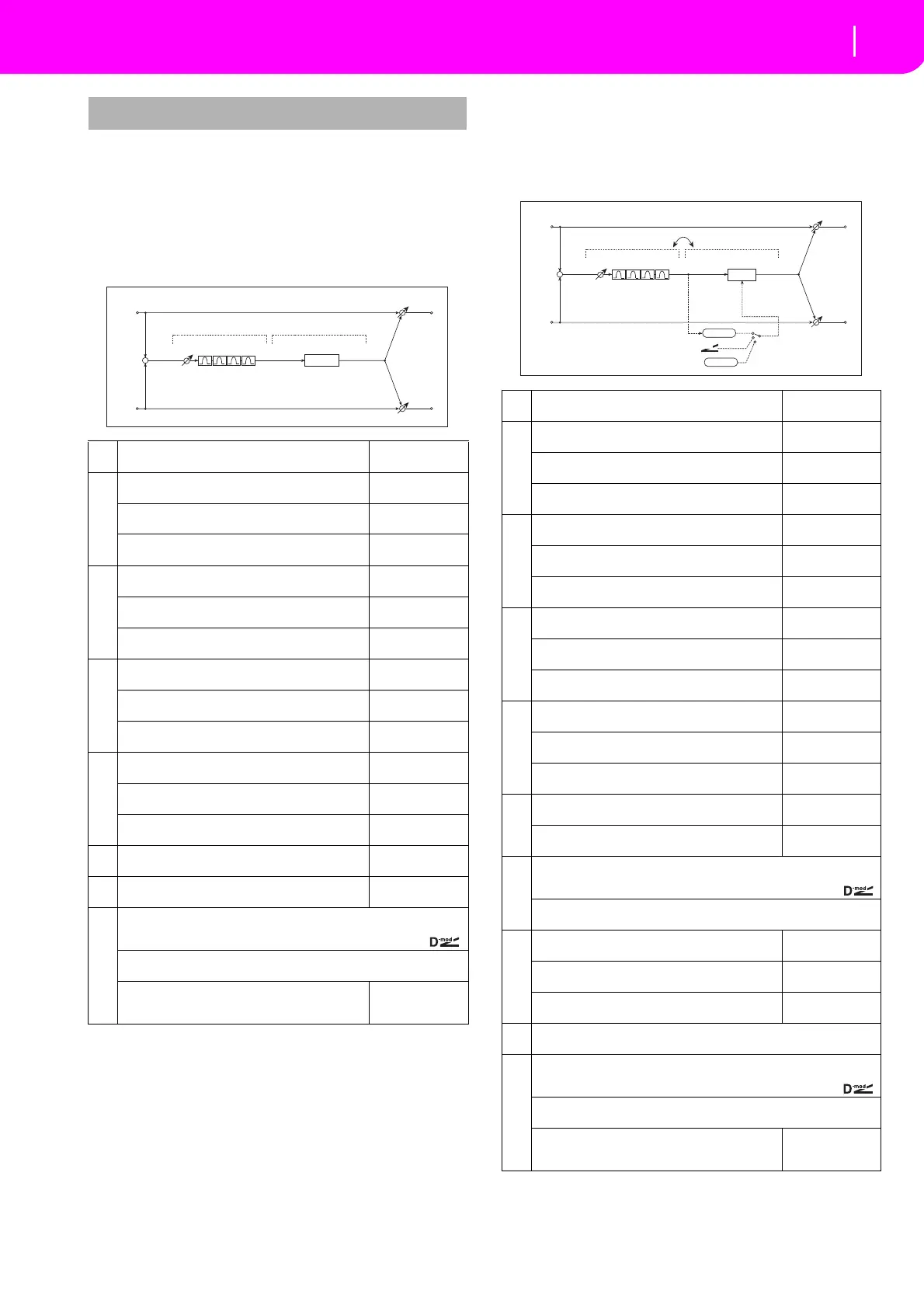

Effects
Mono – Mono Chain
Effects that combine two mono effects connected in
series
058: Par4Eq-Exc 
(Parametric 4-Band EQ – Exciter)
This effect combines a mono‐type four‐band paramet‐
ricequal
izerandanexciter.
059: Par4Eq-Wah 
(Parametric 4-Band EQ – Wah/Auto Wah)
This effect combines a mono‐type four‐band paramet‐
ric equ
alizer and a wah. You can change the order of
theconnection.
MONO – MONO CHAIN
a
[E] Trim
Sets the parametric EQ input level
0...100
b
[E] Band1 Cutoff [Hz]
Sets the center frequency of Band 1
20...1.00kHz
Q
Sets the bandwidth of Band 1
0.5...10.0
Fx:006
Gain [dB]
Sets the gain of Band 1
–18...+18dB
c
[E] Band2 Cutoff [Hz]
Sets the center frequency of Band 2
50...5.00kHz
Q
Sets the bandwidth of Band 2
0.5...10.0
Fx:006
Gain [dB]
Sets the gain of Band 2
–18...+18dB
d
[E] Band3 Cutoff [Hz]
Sets the center frequency for Band 3
300...10.00kHz
Q
Sets the bandwidth of Band 3
0.5...10.0
Fx:006
Gain [dB]
Sets the gain of Band 3
–18...+18dB
e
[E] Band4 Cutoff [Hz]
Sets the center frequency for Band 4
500...20.00kHz
Q
Sets the bandwidth of Band 4
0.5...10.0
Fx:006
Gain [dB]
Sets the gain of Band 4
–18...+18dB
f
[X] Exciter Blend
Sets the intensity (depth) of the Exciter effect
–100...+100
Fx:011
g
[X] Emphatic Point
Sets the frequency range to be emphasized
0...70
Fx:011
h
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 175
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 175
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
Trim
+
Exciter
Parametric 4Band EQ Exciter
a
[E] Trim
Sets the parametric EQ input level
0...100
b
[E] Band1 Cutoff [Hz]
Sets the center frequency of Band 1
20...1.00kHz
Q
Sets the bandwidth of Band 1
0.5...10.0
Fx:006
Gain [dB]
Sets the gain of Band 1
–18...+18dB
c
[E] Band2 Cutoff [Hz]
Sets the center frequency of Band 2
50...5.00kHz
Q
Sets the bandwidth of Band 2
0.5...10.0
Fx:006
Gain [dB]
Sets the gain of Band 2
–18...+18dB
d
[E] Band3 Cutoff [Hz]
Sets the center frequency for Band 3
300...10.00kHz
Q
Sets the bandwidth of Band 3
0.5...10.0
Fx:006
Gain [dB]
Sets the gain of Band 3
–18...+18dB
e
[E] Band4 Cutoff [Hz]
Sets the center frequency for Band 4
500...20.00kHz
Q
Sets the bandwidth of Band 4
0.5...10.0
Fx:006
Gain [dB]
Sets the gain of Band 4
–18...+18dB
f
[W] Frequency Bottom
Sets the lower limit of the wah center frequency
0...100
Fx:009
Frequency Top
Sets the upper limit of the wah center frequency
0...100
Fx:009
g
[W] Sweep Mode Auto, D-mod, LFO
Selects the control from auto-wah, modulation source, and LFO
Fx:009,
Src Off...Tempo
Selects the modulation source for the wah when Sweep Mode=D-mod
h
[W] LFO Frequency [Hz]
Sets the LFO speed
0.02...20.00Hz
Resonance
Sets the resonance amount
0...100
LPF
Switches the wah low pass filter on and off
Off, On
i
Routing PEQ  WA
H, WAH  PEQ
Changes the o
rder of the parametric equalizer and wah connection
j
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 175
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 175
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
Trim
+
Parametric 4Band EQ
Routing
Wah/Auto Wah
Wah
D
-mod
Envelope
Sweep Mode
D-mod
Auto
LFO
LFO
