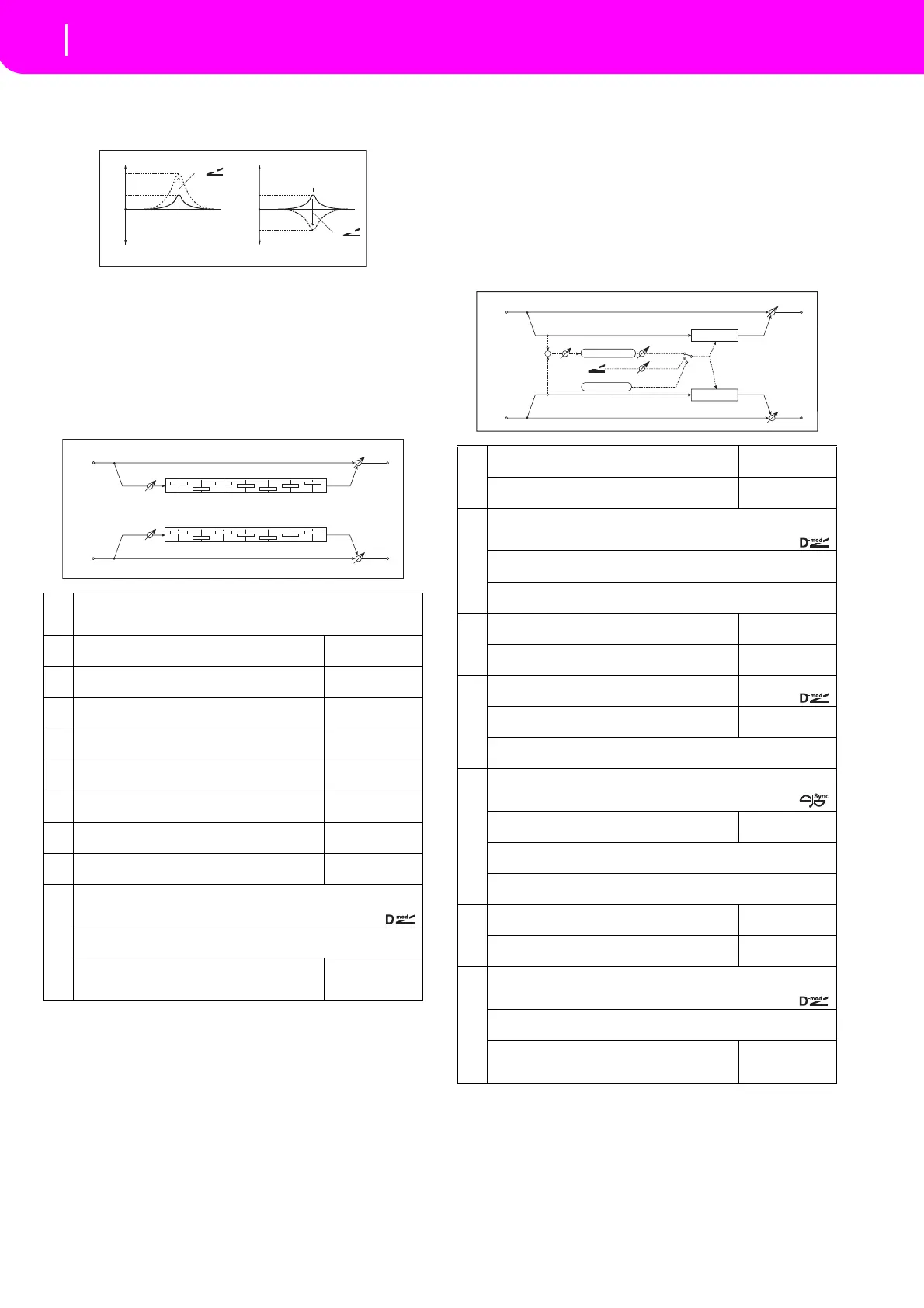

180
Effects
Filter/Dynamic
d: Band2 Dynamic Gain Src, d: Amt [dB], f: Gain [dB]
You can control the gain of Band 2 using the modulation
source.
008: Graph.7B Eq
(Stereo Graphic 7 Band EQ)
Thisisastereo7bandgraphicequalizer.Thebargraph
of the gain setting for each band gi
ves you a clear,
visual idea of frequency responses. You can select a
center frequency setting for each band from twelve
types,accordingtothesound.
a: Type
This parameter selects a combination of center frequencies
for each band. Each center frequency is shown on the right
edge of the LCD.
You can configure a 21-Band Graphic EQ ranging from 80Hz
to 18kHz if you route three Graphic 7Band EQ effects in
series, with a setting of 7:Low, 9:Mid, and 11:High for each
EQ.
009: Wah/AutoWah
(Stereo Wah/Auto Wah)
Thisstereowaheffectallowsyoutocreatesoundsfr
om
vintagewahpedalsimulationtoautowahsimulation,
andmuchbroaderrangesettings.
a
Type 1:Wide 1, 2:Wide 2, 3:Wide 3, 4:Half Wide 1, 5:Half Wide 2, 6:Half
Wide 3, 7:Low, 8:Wide Low, 9:Mid, 10:Wide Mid, 11:High, 12
:Wide High
Selects a combination of center frequencies for each band
b
Trim
Sets the input level
0...100
c
Band1 [dB]
Sets the gain of Band 1
–18.0...+18.0dB
d
Band2 [dB]
Sets the gain of Band 2
–18.0...+18.0dB
e
Band3 [dB]
Sets the gain of Band 3
–18.0...+18.0dB
f
Band4 [dB]
Sets the gain of Band 4
–18.0...+18.0dB
g
Band5 [dB]
Sets the gain of Band 5
–18.0...+18.0dB
h
Band6 [dB]
Sets the gain of Band 6
–18.0...+18.0dB
i
Band7 [dB]
Sets the gain of Band 7
–18.0...+18.0dB
j
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 175
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 175
–100...+100
Band2 Cutoff
Band2 Cutoff
0dB
+6dB
+15dB
Band2 Gain[dB]= +6.0
Band2 Dynamic Gain Amt[dB]= +9.0
D
-mod
0dB
+6dB
–9dB
Band2 Gain[dB]= +6.0
Band2 Dynamic Gain Amt[dB]= –15.0
D
-mod
Parametric 4EQ - Band2 Dynamic Gain Control
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Band1 Band2 Band3 Band4
Trim
Trim
Band5 Band6 Band7
Band1 Band2 Band3 Band4 Band5 Band6 Band7
a
Frequency Bottom
Sets the lower limit of the wah center frequency
0...100
Frequency Top
Sets the upper limit of the wah center frequency
0...100
b
Sweep Mode Auto, D-mod, LFO
Selects the control from auto-wah, modulation source, and LFO
,
Src Off...Tempo
Selects the modulation source for the wah when Sweep Mode=D-mod
Response 0...100
Sets the response speed when Sweep Mode = Auto or D-mod
c
Envelope Sens (Envelope Sensitivity)
Sets the sensitivity of auto-wah
0...100
Envelope Shape
Sets the sweep curve of auto-wah
–100...+100
d
LFO Frequency [Hz]
Sets the LFO speed
0.02...20.00Hz
,
Src
Selects the modulation source of LFO speed
Off...Tempo
Amt –20.00...+20.00Hz
Sets the modulation amount of LFO speed
e
BPM/MIDI Sync Off, On
Switches between using the frequency of the LFO speed and using the
tempo a
nd notes ,
BPM
Selects MIDI Clock and assigns tempo
MIDI, 40...240
Base Note
,   , ,   , ,   , ,
Selects the type of notes that specify the LFO speed
Times x1...x16
Sets the number of notes that specify the LFO speed
f
Resonance
Sets the resonance amount
0...100
Low Pass Filter
Switches the Wah Low Pass Filter on and off
Off, On
g
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 175
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 175
–100...+100
Stereo In - Stereo Out
D
-mod
Envelope Sens
Envelope Shape
Response
Wet / Dry
Wah
Sweep Mode
D-mod
Auto
Left
Right
Wet / Dry
LFO
LFO
Wah
+
