Korg microARRANGER User Manual

211
Effects
Mono – Mono Chain

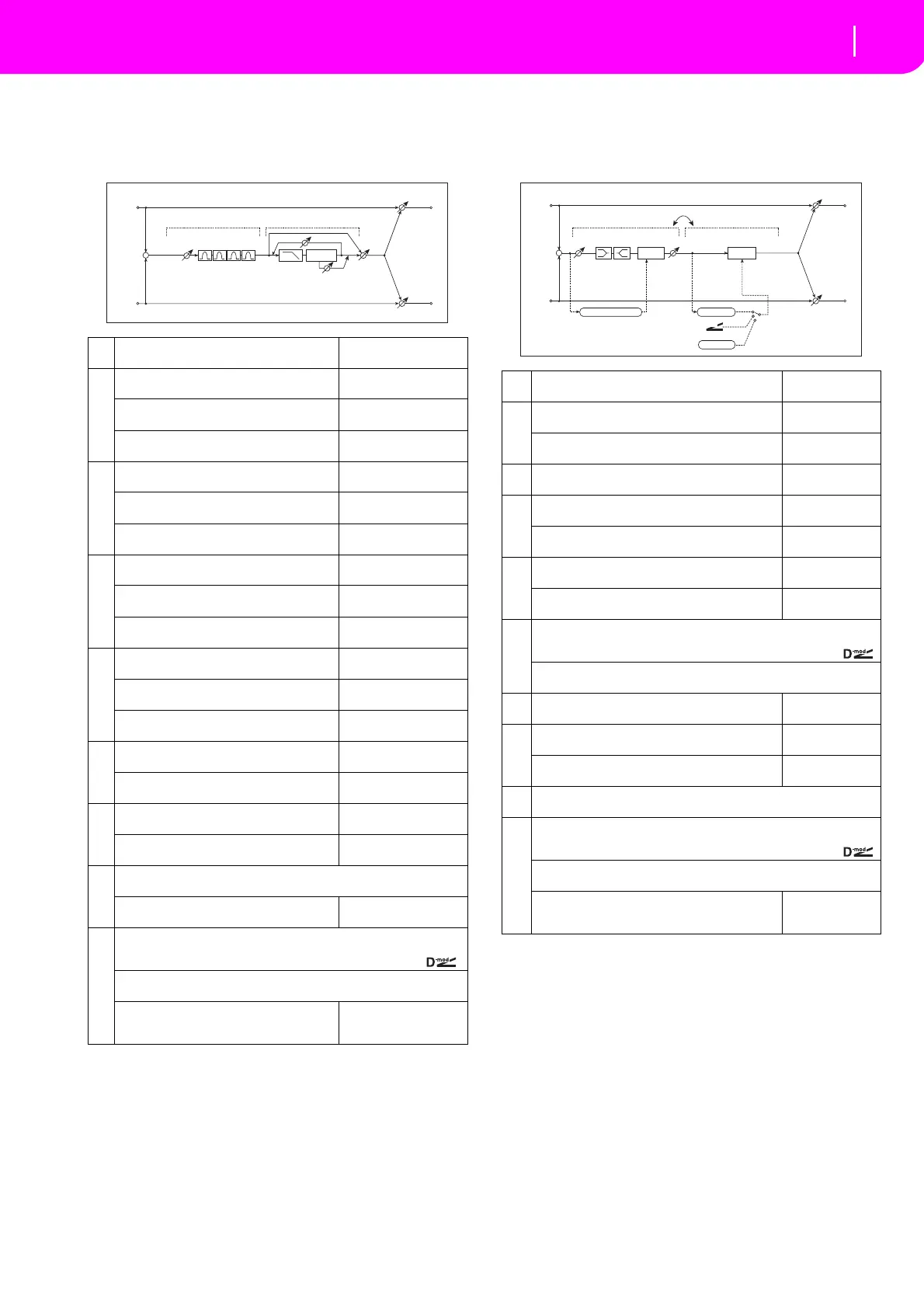

062: P4Eq-TapDly 
(Parametric 4-Band EQ – Multitap Delay)
This effect combines a mono‐type four‐band paramet‐
ricequal
izerandamultitapde
lay.
063: Cmp-AutoWah 
(Compressor – Wah/Auto Wah)
This effect combines a mono‐type compressor and a

wah.Youcanchangetheorderoftheconnection.
a
[E] Trim
Sets the parametric EQ input level
0...100
b
[E] Band1 Cutoff [Hz]
Sets the center frequency of Band 1
20...1.00kHz
Q
Sets the bandwidth of Band 1
0.5...10.0
Fx:006
Gain [dB]
Sets the gain of Band 1
–18...+18dB
c
[E] Band2 Cutoff [Hz]
Sets the center frequency of Band 2
50...5.00kHz
Q
Sets the bandwidth of Band 2
0.5...10.0
Fx:006
Gain [dB]
Sets the gain of Band 2
–18...+18dB
d
[E] Band3 Cutoff [Hz]
Sets the center frequency for Band 3
300...10.00kHz
Q
Sets the bandwidth of Band 3
0.5...10.0
Fx:006
Gain [dB]
Sets the gain of Band 3
–18...+18dB
e
[E] Band4 Cutoff [Hz]
Sets the center frequency for Band 4
500...20.00kHz
Q
Sets the bandwidth of Band 4
0.5...10.0
Fx:006
Gain [dB]
Sets the gain of Band 4
–18...+18dB
f
[D] Tap1 Time [msec]
Sets the Tap1 delay time
0...680msec
Tap1 Level
Sets the Tap1 output level
0...100
Fx:045
g
[D] Tap2 Time [msec]
Sets the Tap2 delay time
0...680msec
Feedback
Sets the Tap2 feedback amount
–100...+100
h
[D] Mt.Delay Wet/Dry Dry, 2:98...98:2, Wet
Sets the multitap delay effect balance
High Damp [%]
Sets the damping amount in the high range
0...100%
Fx:043
i
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 175
Amt
Table , “Sets the modulation amount of the
effect balance,” on page 175
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
Trim
+
Parametric 4Band EQ Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Mt.Dly Wet / Dry
a
[C] Sensitivity
Sets the sensitivity
1...100
Fx:002
b
[C] Attack
Table , “Sets the attack level,” on page 176
1...100
Fx:002
Output Level
Sets the compressor output level
0...100
Fx:002
c
[C] EQ Trim
Table , “Sets the EQ input level,” on page 176
0...100
d
[C] Pre LEQ Gain [dB]
Table , “Sets the gain of Low EQ,” on page 176
–15...+15dB
Pre HEQ Gain [dB]
Table , “Sets the gain of High EQ,” on page 176
–15...+15dB
e
[W] Frequency Bottom
Sets the lower limit of the wah center frequency
0...100
Fx:009
Frequency Top
Sets the upper limit of the wah center frequency
0...100
Fx:009
f
[W] Sweep Mode Auto, D-mod, LFO
Selects the control from auto-wah, modulation source, and LFO
Fx:009,
Src Off...Tempo
Selects the modulation source for the wah when Sweep Mode=D-mod
g
[W] LFO Frequency [Hz]
Sets the LFO speed
0.02...20.00Hz
h
[W] Resonance
Sets the resonance amount
0...100
Low Pass Filter
Switches the wah low pass filter on and off
Off, On
i
Routing CMP  WA
H, WAH
 CMP
Switches the order of the compressor and wah connection
j
Wet/Dry Dry, 1:99...99:1, Wet
Table , “Sets the balance between the effect and dry sounds,” on page 175
Src Off...Tempo
Table , “Selects the modulation source of the effect balance,” on page 175
Amt
Table , “Sets the modulation amount of the effect bal-
ance,” on page 175
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Compressor
Routing
Wah/Auto Wah
Wah
D
-mod
Envelope
Sweep Mode
D-mod
Auto
LFO
LFO
LEQ HEQ
EQ Trim
Comp
Output Level
Envelope - Control
