Comfort Control Unit
128
Pos: 21.15.14 / BA/Info-Center/L adewagen/H auptmenüs/Ha uptmenü 4 Ser vice/Diagnose V ersorgungsspa nnungen @ 0\m od_120091 3657963_78.doc @ 47814

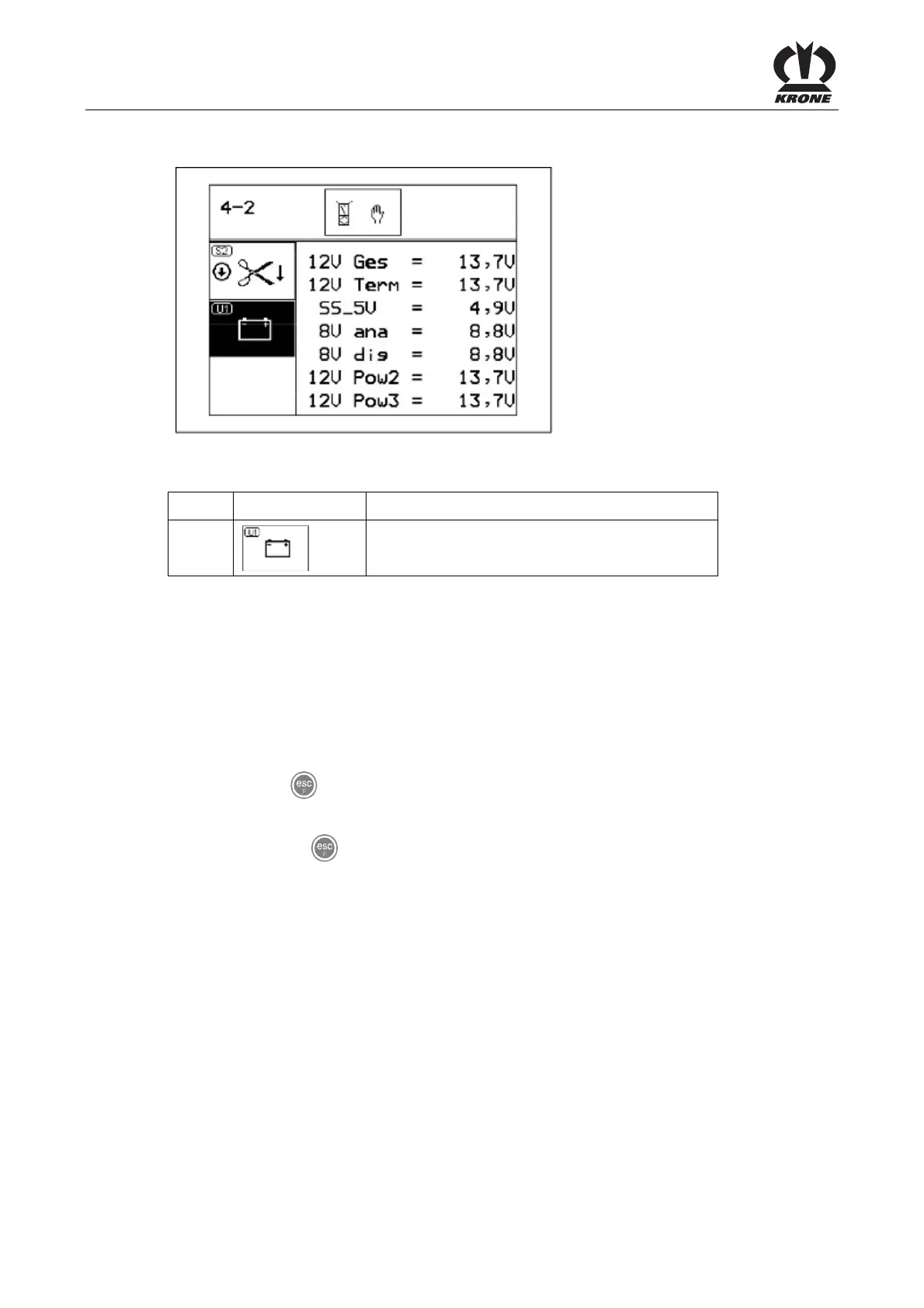

Diagnostics - power supply voltages
L400230
Figure 89
No. Sensor icon Description
U1
supply voltage
Nominal voltages:
• 12 V tot.: 12 - 14.5 V
• 12 V term: 12 - 14.5 V
• SS_5V: 4.5 - 5.5 V
• 8 V ana: 8.5 - 9.1 V
• 8 V dig: 8.5 - 9.1 V
• 12 V Pow2: 12 - 14.5 V
• 12 V Pow3: 12 - 14.5 V
• Press the
key to close the menu currently displayed.
The display shows menu level 4 "Service".
• Pressing the key and holding it down brings up the basic screen.
