Comfort Control Unit
127
Pos: 21.15.12 / BA/Info-Center/L adewagen/H auptmenüs/Ha uptmenü 4 Ser vice/Diagnose Tas ter @ 0\m od_12009121 54728_78.doc @ 4 7794

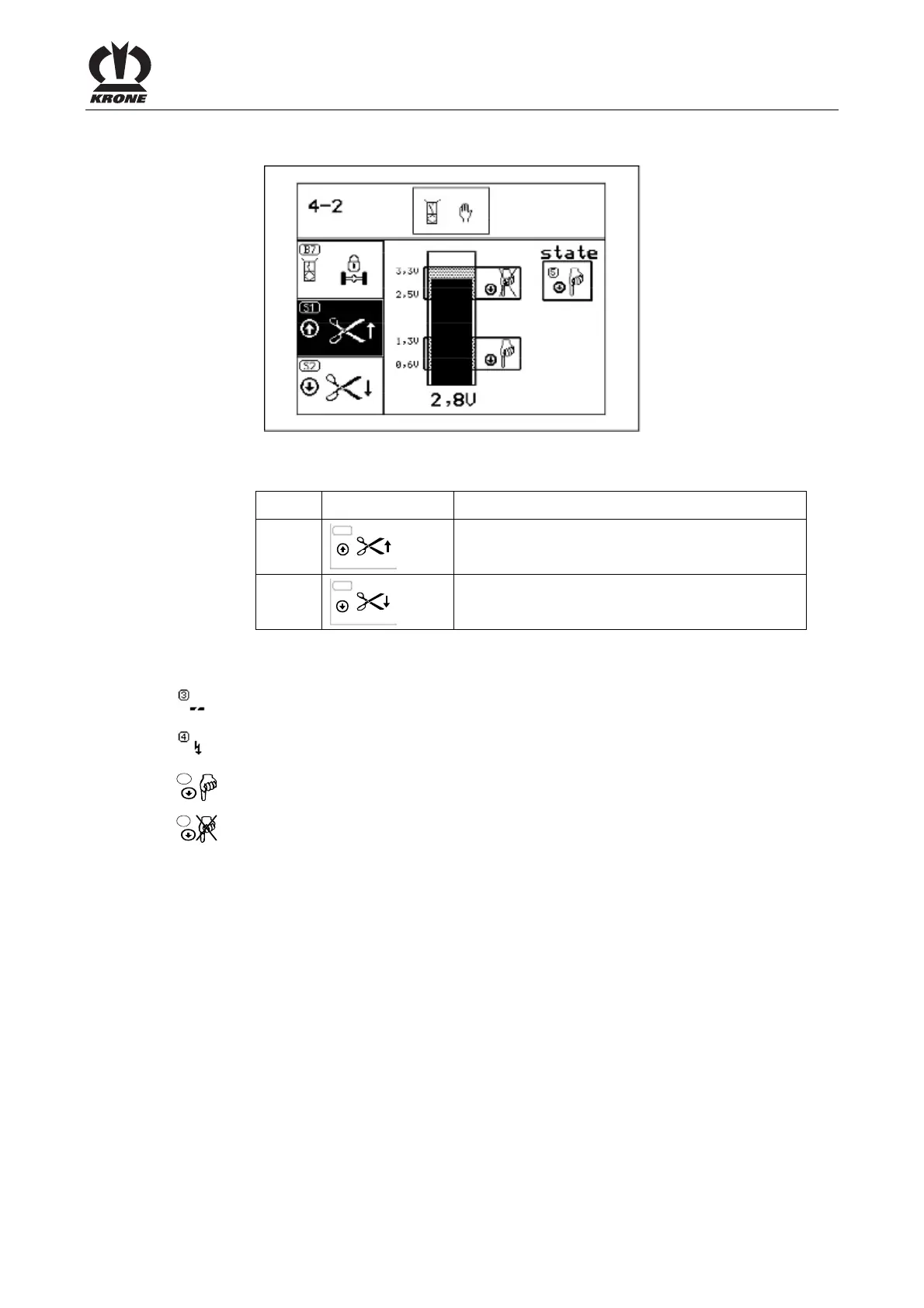

Diagnostics - buttons
L400221
Figure 88:
Possible sensors (depending on how the machine is equipped)
No. Sensor icon Description
S1
S1
Button "Swinging blades in"
B2
S2
Button "Swinging blades out"
State:
Broken cable
• Short circuit
5
• Pressed
6
• Not pressed
Setting values:
When the button is pressed, the bar must be in the lower marked area of the bar display. When
the key is released, it should be in the upper area.
