MacDon M155 2022 - Activating Header Float Control Lockout

215676 110 Revision A
1009232
CXXX
MXXX
HEADER TILT
ENABLED/LOCKED
D
C
B
A

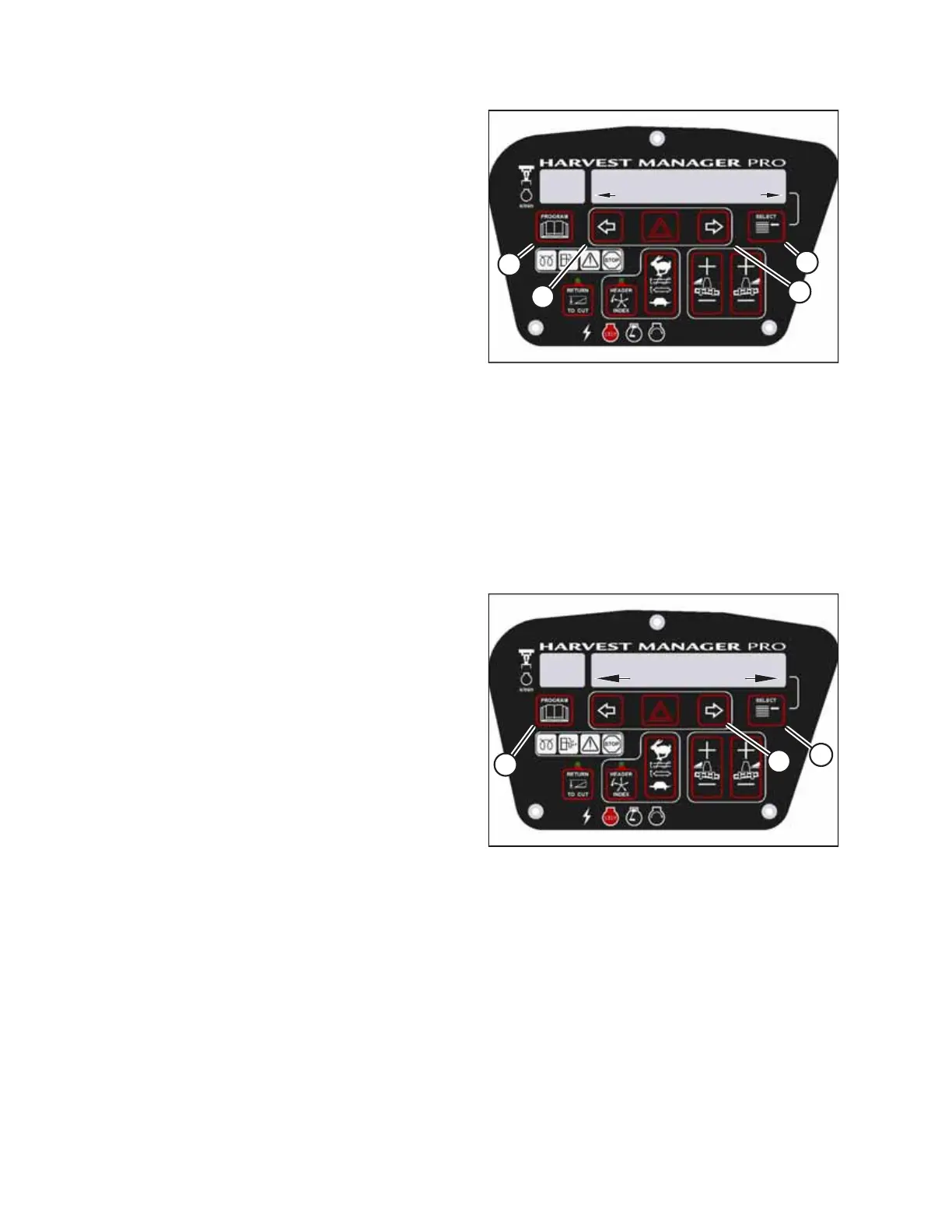

Figure 3.118: Header Tilt Control Lock
6. Press SELECT (D) until HEADER TILT appears on the
upper line.
• ENABLED/LOCKED will appear on the lower line.
7. Press left arrow (B) to enable the use of the HEADER TILT
control switch.
Press right arrow (C) to lock the HEADER TILT control
switch.
8. Press PROGRAM (A) to exit programming mode, or press
SELECT (D) to proceed to the next WINDROWER SETUP
option.
Activating Header Float Control Lockout
Activating the header float control lockout in the windrower’s cab display module (CDM) prevents unauthorized Operators
from changing the float setting of the attached header.
NOTE:
The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM) automatically
adjusts its programming for each header.
For more information, refer to 4.5 Attaching and Detaching Headers, page 215.
1009066
CXXX
MXXX
WINDROWER SETUP?
NO/YES
A
B
C
Figure 3.119: CDM Programming Buttons
1. Turn the ignition key to the RUN position, or start the
engine.
2. Press PROGRAM (A) and SELECT (C) on the cab display
module (CDM) to enter programming mode.
• WINDROWER SETUP? will appear on the upper line.
• NO/YES will appear on the lower line.
3. Press right arrow (B) to select YES. Press SELECT (C).
• SET KNIFE SPEED? will appear on the upper line.
OPERATOR’S STATION
