215676 138 Revision A
Testing Header Tilt Activate Function Using Cab Display Module
It may be necessary to use the cab display module (CDM) to change the angle of the attached header, rather than using the
header tilt controls on the ground speed lever (GSL). This procedure is used to test the functionality of this feature.
NOTE:
• The header must be attached to the windrower to perform this procedure. The cab display module (CDM) automatically
adjusts its programming for each header. For more information, refer to 4.5 Attaching and Detaching Headers, page
215.
• This procedure requires installation of the optional Hydraulic Center-Link (MD #B4650).
• The engine must be running to perform this procedure.
DANGER
Ensure that all bystanders have cleared the area.
1009099
CXXX
MXXX
WINDROWER SETUP?
NO/YES
A
B

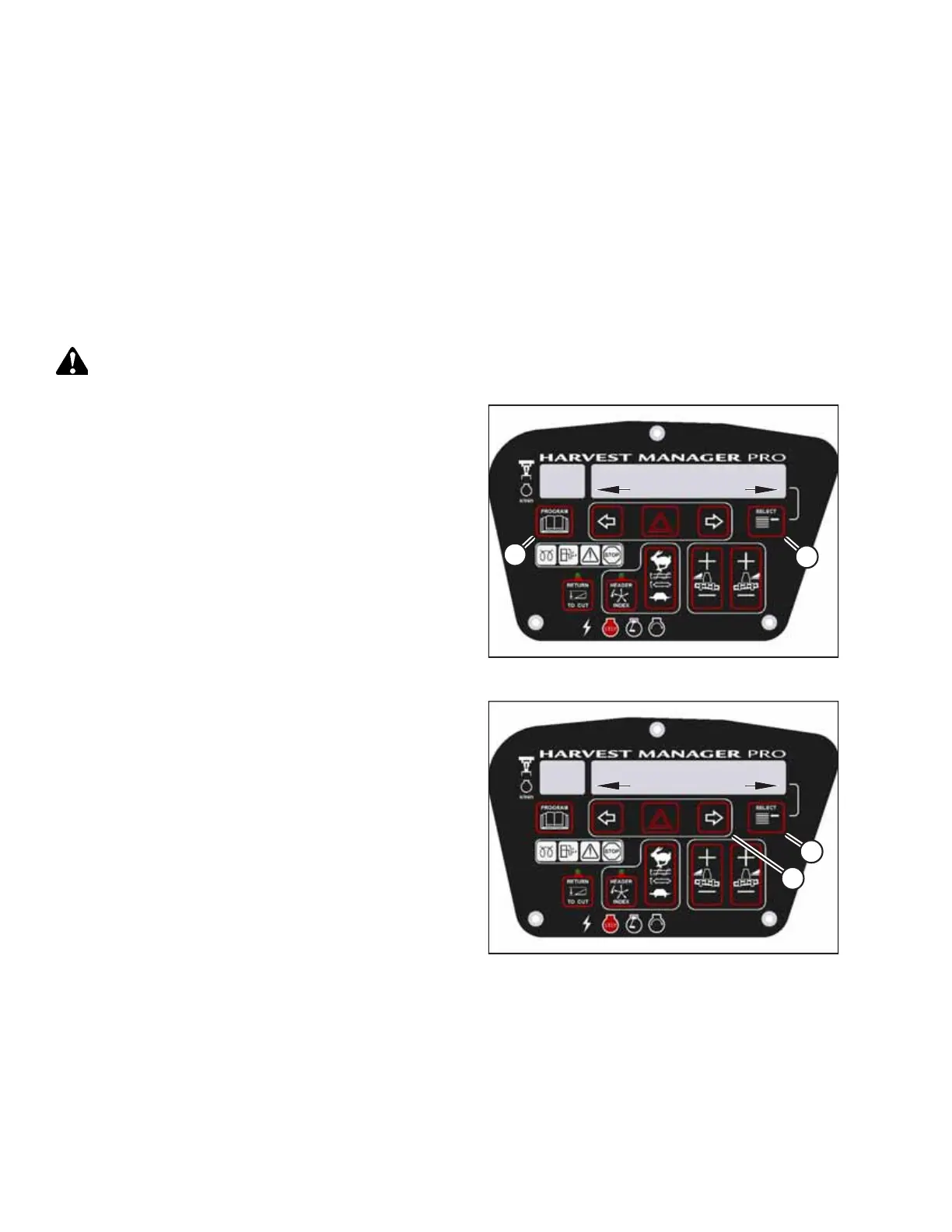

Figure 3.184: CDM Programming Buttons
1. Start the engine.
2. Press PROGRAM (A) and SELECT (B) simultaneously on the
CDM to enter programming mode.
• WINDROWER SETUP? will appear on the upper line.
1009288
CXXX
MXXX
DIAGNOSTIC MODE?
NO/YES
A
B
Figure 3.185: Diagnostic Functions
3. Press SELECT (B) until DIAGNOSTIC MODE? appears on the
upper line.
• NO/YES will appear on the lower line.
4. Press right arrow (A) to select YES. Press SELECT (B).
OPERATOR’S STATION
