MacDon M155 2022 - Testing Reel Fore-Aft Activate Function Using Cab Display Module

215676 148 Revision A
Testing Reel Fore-Aft Activate Function Using Cab Display Module
The cab display module (CDM) can be used to test the reel fore-aft circuit, rather than using the controls on the operator’s
station.
NOTE:
• The windrower must be attached to a header to perform this procedure. For more information, refer to 4.5 Attaching
and Detaching Headers, page 215.
• The engine must be running to perform this procedure.
DANGER
Ensure that all bystanders have cleared the area.
1009099
CXXX
MXXX
WINDROWER SETUP?
NO/YES
A
B

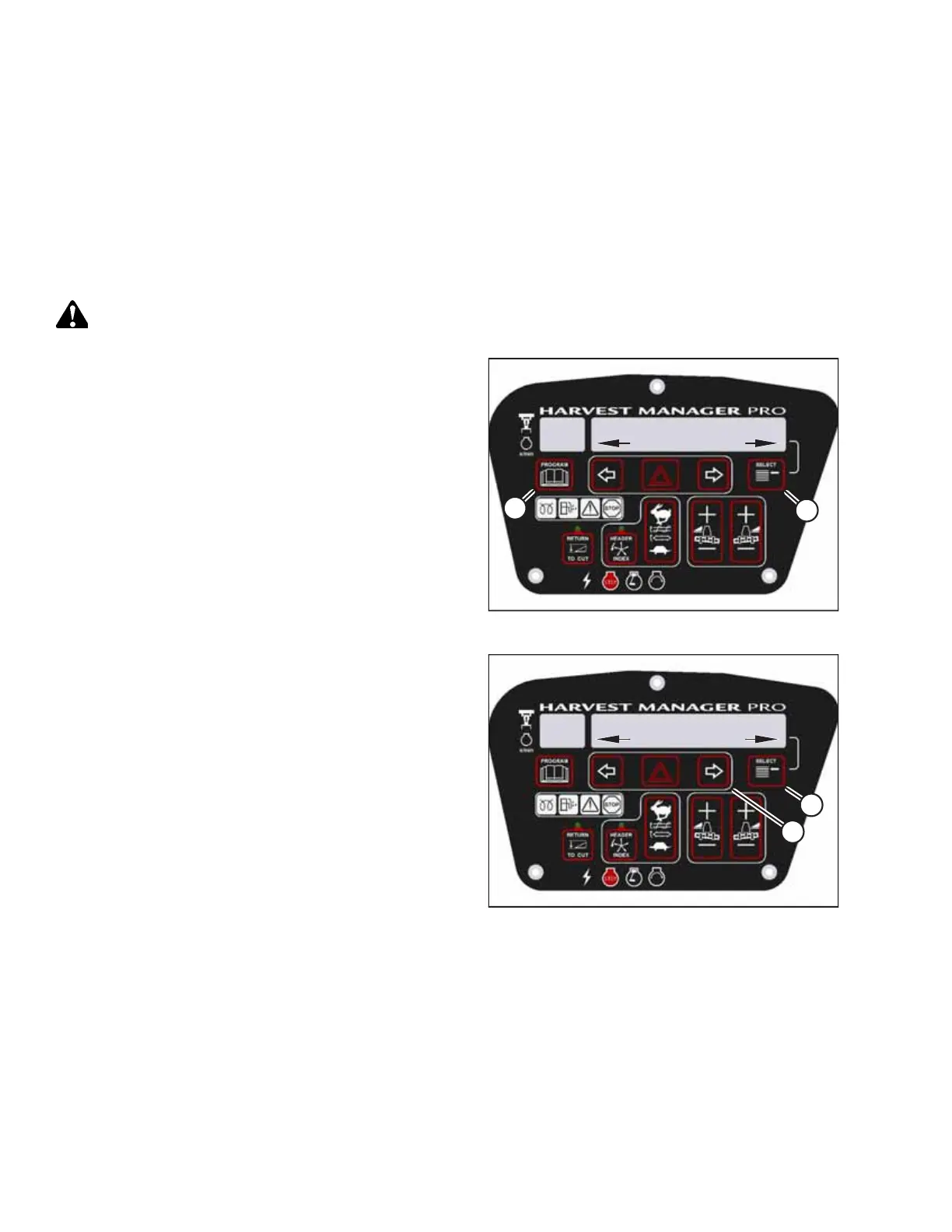

Figure 3.208: CDM Programming Buttons
1. Start the engine.
2. Press PROGRAM (A) and SELECT (B) simultaneously on the
CDM to enter programming mode.
• WINDROWER SETUP? will appear on the upper line.
1009288
CXXX
MXXX
DIAGNOSTIC MODE?
NO/YES
A
B
Figure 3.209: Diagnostic Functions
3. Press SELECT (B) until DIAGNOSTIC MODE? appears on the
upper line.
• NO/YES will appear on the lower line.
4. Press right arrow (A) to select YES. Press SELECT (B).
OPERATOR’S STATION
