215676 52 Revision A
3.9 Rearview Mirrors
The type of rearview mirror available to the Operator depends on whether the windrower is being operated in cab-forward
or engine-forward mode.

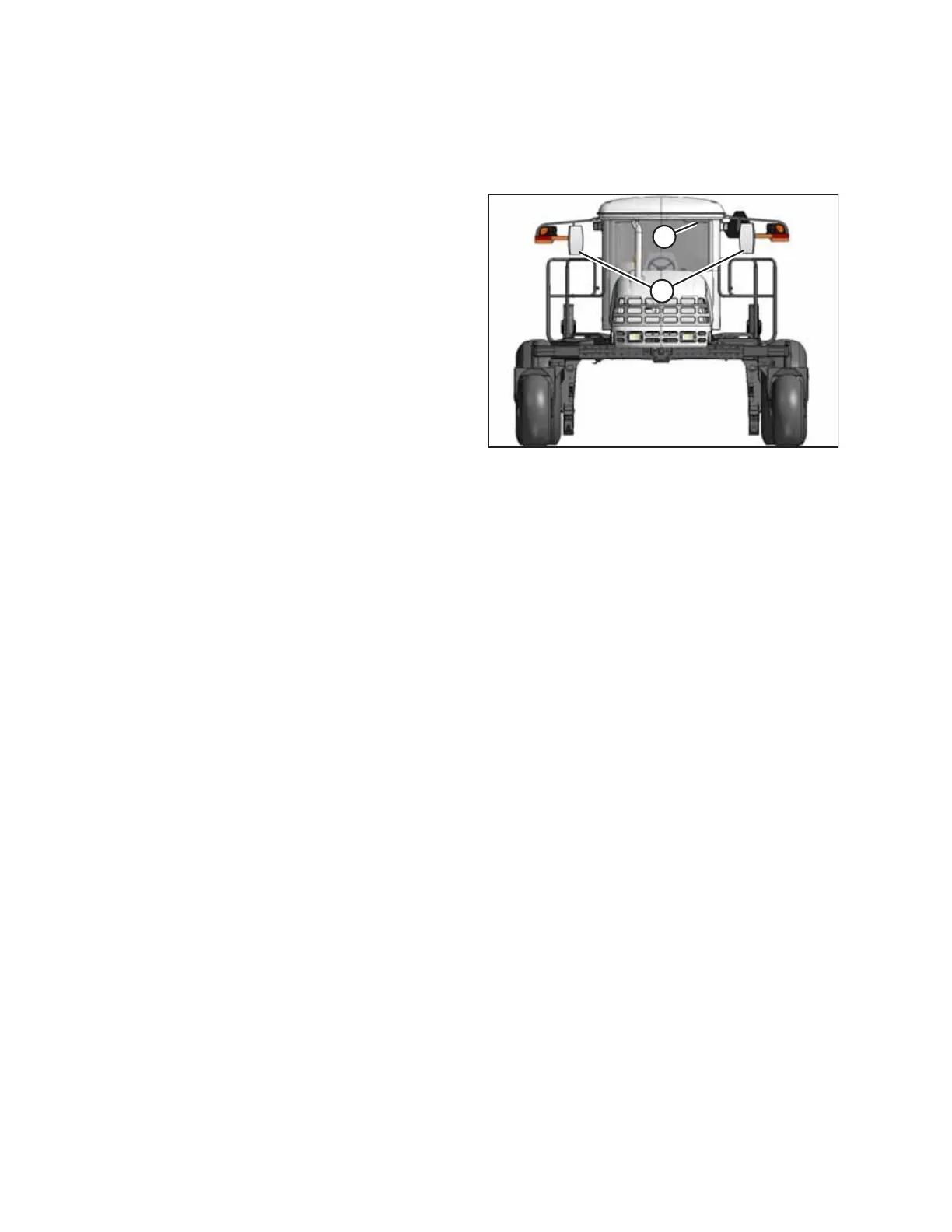

Figure 3.25: Mirrors
Two outside-mounted, adjustable mirrors (A) provide a rear
view when the windrower is in cab-forward mode.
A single interior-mounted mirror (B) provides a rear view when
the windrower is in engine-forward mode.
Mirror/light assembly (A) is designed to fold back if it is struck.
A detent-type lock keeps it in place.
OPERATOR’S STATION
