3.18.3 Ground Speed Lever Header Switches
Header functions such as the display selection, reel position, header height, and the speed of the reel or discs can be
controlled from the switches on the ground speed lever (GSL).

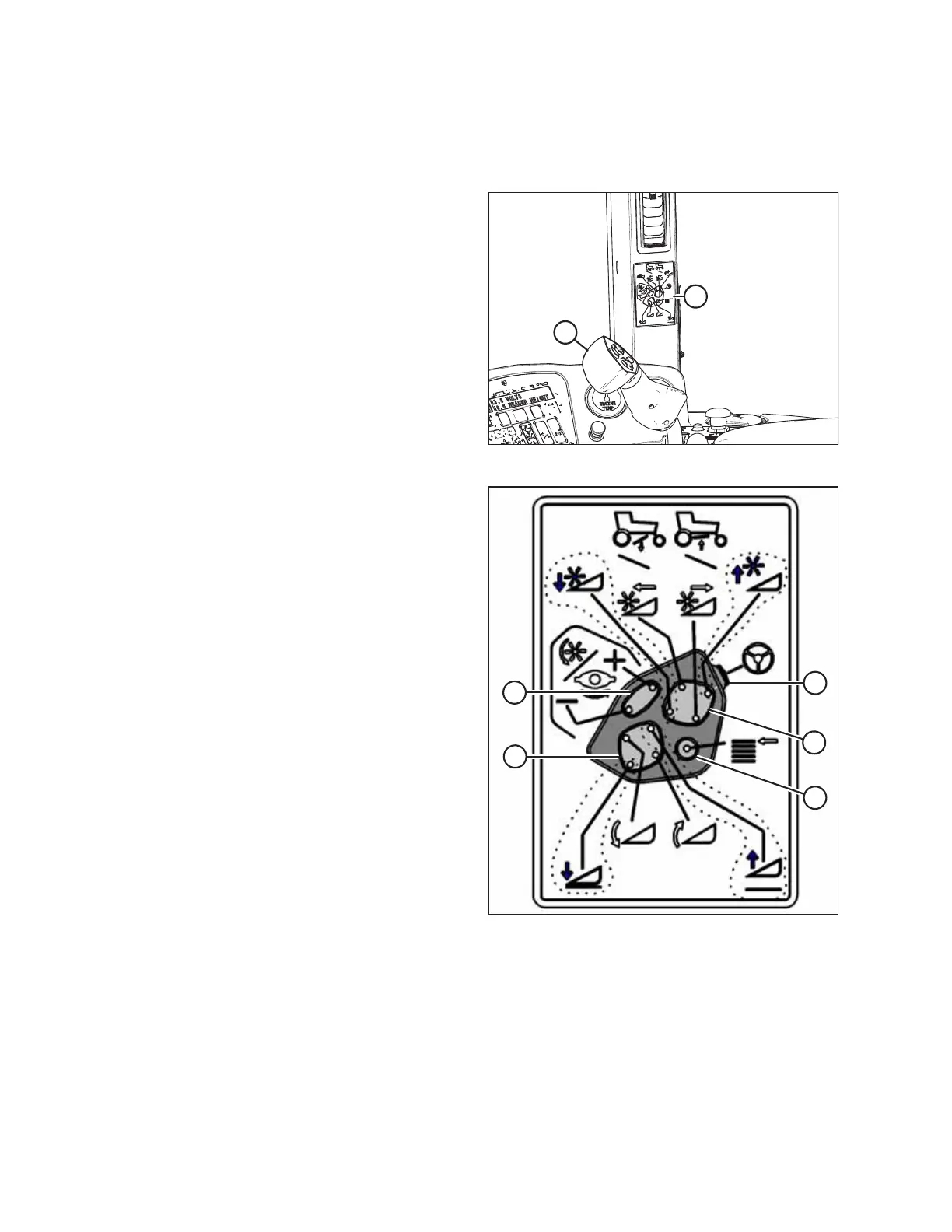

Figure 3.50: GSL
The switches on GSL (A) control the most common header
functions.
NOTE:
Decal (B) identifies the functions of the switches on the GSL.
Decal (B) can be found on the cab post above the operator’s
console.
Figure 3.51: GSL Function Groups
A - Reel Speed B - Reel Position
C - Autosteer Engagement D - Display Selector
E - Header Position
