3.7 Exterior Lighting
The exterior lighting system consists of the field, road, and the beacon and/or clearance lights. These lights can be
controlled from a panel in the cab’s headliner.
1022562
A
B
C

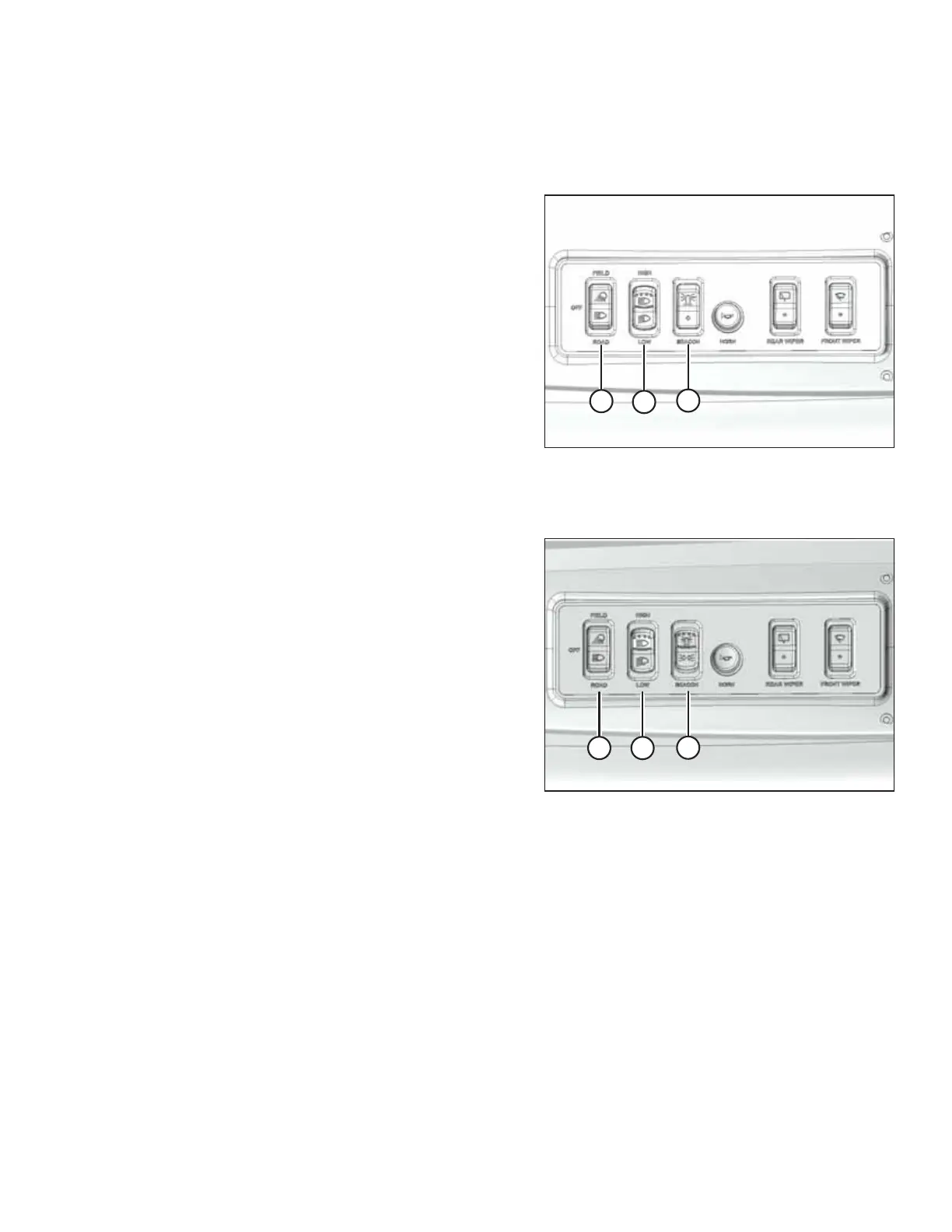

Figure 3.17: Headliner Console (except Russia)
A - FIELD / OFF / ROAD
B - HIGH / LOW
C - BEACONS / OFF
Field/road (A), high/low beam (B), and beacon light (C) switches
are located on a panel in the cab headliner. The hazard/turn
signal switch is located on the cab display module (CDM).
The position of the operator’s station (cab-forward mode or
engine-forward mode) and the auto-road lighting feature
automatically determines which lighting systems are activated.
IMPORTANT:
Red and amber reflector tape is positioned so as to be visible in
both the engine-forward and cab-forward modes.
1022563
A
B
C
Figure 3.18: Headliner Console (Russia)
A - FIELD / OFF / ROAD
B - LOW / HIGH
C - BEACON & CLEARANCE / OFF / CLEARANCE
3.7.1 Auto-Road Lighting
This feature automatically activates a default set of lights for road travel when specific operating conditions are met.
This feature will activate road headlights, hazards, and beacons when the following conditions are met:
• The windrower is in cab- or engine-forward mode
• The engine is running
• The header is disengaged
• The transmission is in either mid or high range
