3.14 Radio
A radio is available as optional equipment from your Dealer.
3.14.1 AM/FM Radio
A space is provided in the cab headliner to accommodate the installation of an AM/FM radio. In order to retain the radio
settings and the preset memory when the battery disconnect is turned off, install a unit which features non-volatile
settings memory.

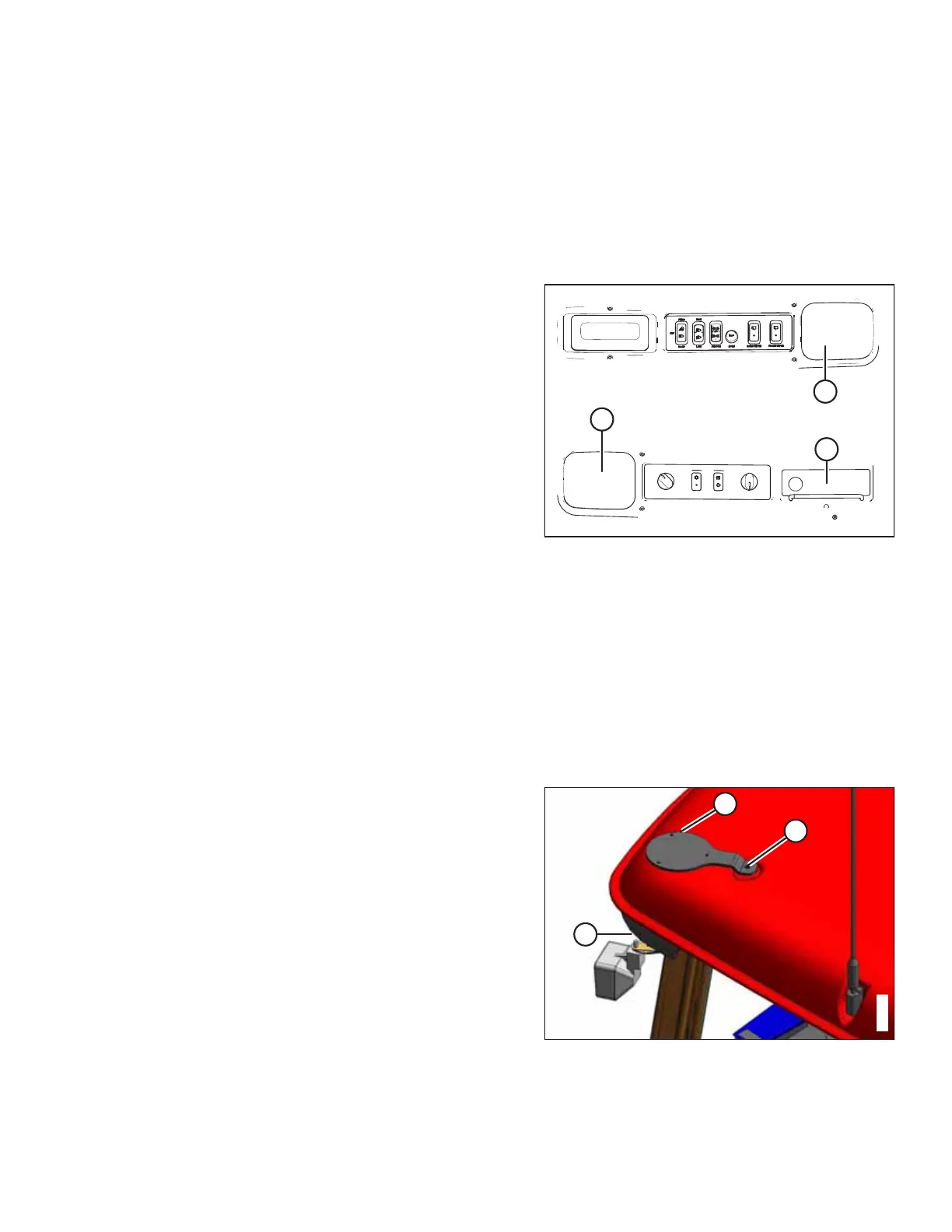

Figure 3.37: Speakers in Headliner
A - Speakers B - Radio Mounting Location
Two pre-wired speakers (A) have been factory-installed in the
headliner.
For radio installation procedures, refer to the windrower
unloading and assembly instructions.
Operating instructions are supplied with the radio.
3.14.2 Mounting Antenna
An optional base for a magnetic, roof-mounted antenna is available from your Dealer.
IMPORTANT:
The antenna base can only be installed on the left cab-forward and right rear cab roof bolts.
Order antenna mount (MD #160288 [B]) or refer to 3.40, page 60 for part dimensions to make an improvised version.
Knockout (C) for the antenna lead is provided on the cab post, as shown in the following illustration.
Figure 3.38: Antenna Mount
1. Remove bolt (A).
2. Position antenna mount (B) as shown. Secure it with
bolt (A).
