215676 60 Revision A

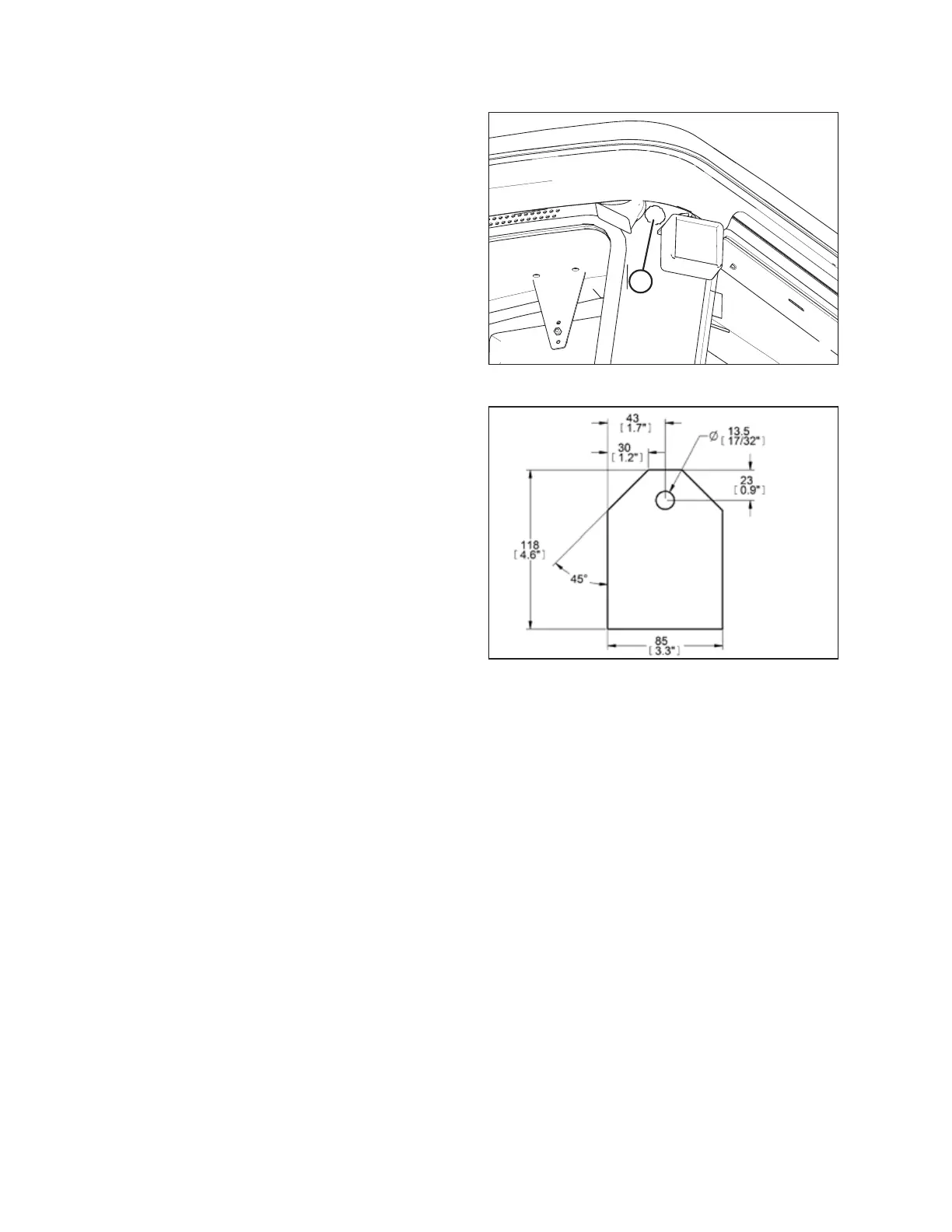

Figure 3.39: Knockout Location in Cab
Knockout (A) is located on the exterior right cab-forward rear
corner post of the cab, under the roof, between the horn and
the light.
Figure 3.40: Template for Antenna Mount
To make your own mount, refer to the dimensions template
provided. Use 11 gauge or 3.0 mm-thick steel sheeting.
OPERATOR’S STATION
