3.7.2 Cab-Forward Lighting
This section explains the lighting defaults with the windrower in cab-forward mode.
Table 3.1 Cab-Forward Lighting
Auto Road Inactive Auto Road Active
5
Switch Position ⇨⇨
Lights ⇩
Field Road Field Road
Field (A)
ON OFF OFF OFF
Field (B)
ON ON ON ON
Field (C)
ON with high
or low beam
ON with high
or low beam
ON with high
or low beam
ON with high
or low beam
Field (D)
ON OFF OFF OFF
Tail (E)
OFF
6
OFF
6
OFF
6
OFF
6
Hazard/turn signals (F)
CDM switched CDM switched CDM switched CDM switched
Tail (G)
OFF ON ON ON
Header (H) (not shown)
OFF OFF OFF OFF
Field (J)
ON with high
or low beam
OFF OFF OFF
Beacons (K)
ON or OFF ON or OFF ON ON
1022476
K
K
F
F
D
J
G
1022477
A A
A
B
B
C
C
F
F
E
E
1030122
1
2

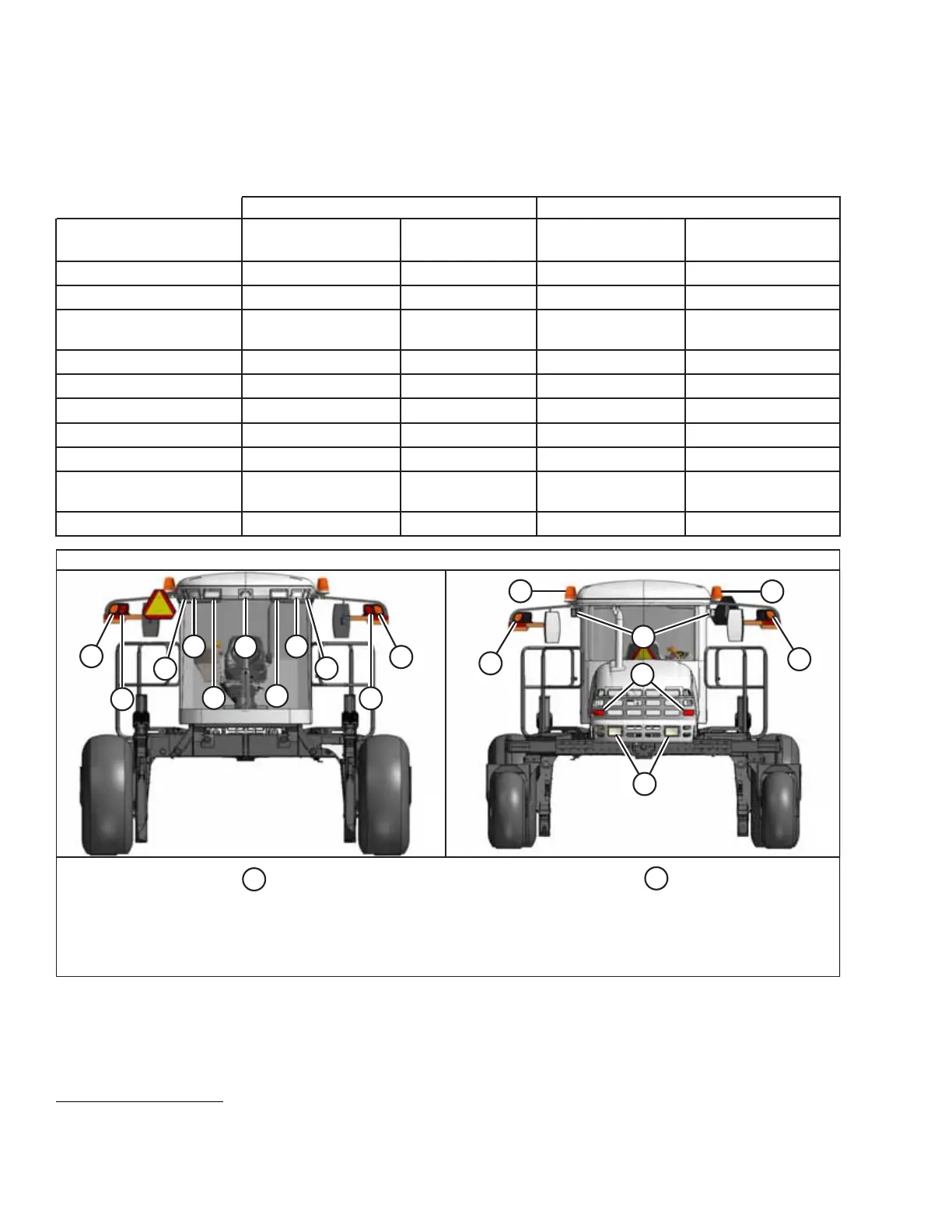

Figure 3.19: Cab-Forward Lighting
1 - Front 2 - Rear A - Field (Qty 3)
B - Field/Road (Qty 2) C - Field/Road ( Qty 2) D - Field (Qty 2)
E - Tail (Qty 2) F - Hazard/Turn Signals (Qty 2) G - Tail (Qty 2)
H - Header Lights (Not Shown) J - Field (Qty 2) K - Beacons (Qty 2)
OPERATOR’S STATION
5. These lights are active when the engine is running, the transmission is in mid-range, and the header is disengaged
6. This light is ON when the three-position switch is in the beacon position or is in the clearance light position.
