Activating Draper Speed Control Lockout
Activating the header draper speed control lockout in the windrower’s cab display module (CDM) prevents unauthorized
Operators from changing the draper speed setting of the attached header.
NOTE:
• This procedure applies to windrowers with attached draper headers only.
• The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header. For more information, refer to 4.5 Attaching and Detaching
Headers, page 215.
To activate the draper speed control lockout:
1009066
CXXX
MXXX
WINDROWER SETUP?
NO/YES
A
B
C

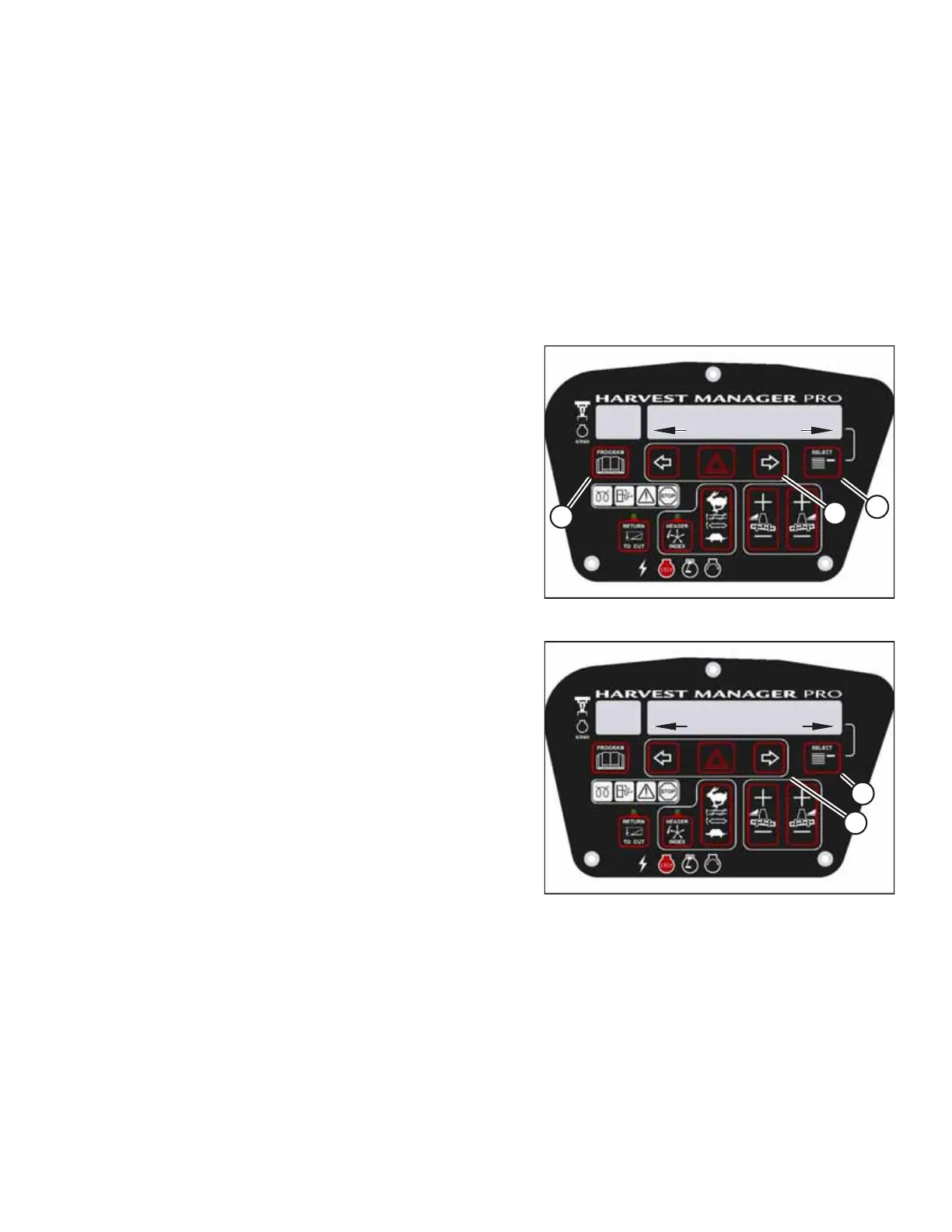

Figure 3.125: CDM Programming Buttons
1. Turn the ignition key to the RUN position, or start the
engine.
2. Press PROGRAM (A) and SELECT (C) on the CDM to enter
programming mode.
• WINDROWER SETUP? will appear on the upper line.
• NO/YES will appear on the lower line.
3. Press right arrow (B) to select YES. Press SELECT (C).
• SET KNIFE SPEED? will appear on the upper line.
1009221
CXXX
MXXX
NO/YES
SET CONTROL LOCKS?
B
A
Figure 3.126: Control Locks
4. Press SELECT (B) until SET CONTROL LOCKS? appears on the
upper line.
• NO/YES will appear on the lower line.
5. Press right arrow (A) to select YES. Press SELECT (B).
