4.4.10 Swath Compressor
The swath compressor is designed to shape the windrow and anchor it into the stubble behind the header to minimize
shelling in ripe conditions. It is available as an optional attachment.
1023355

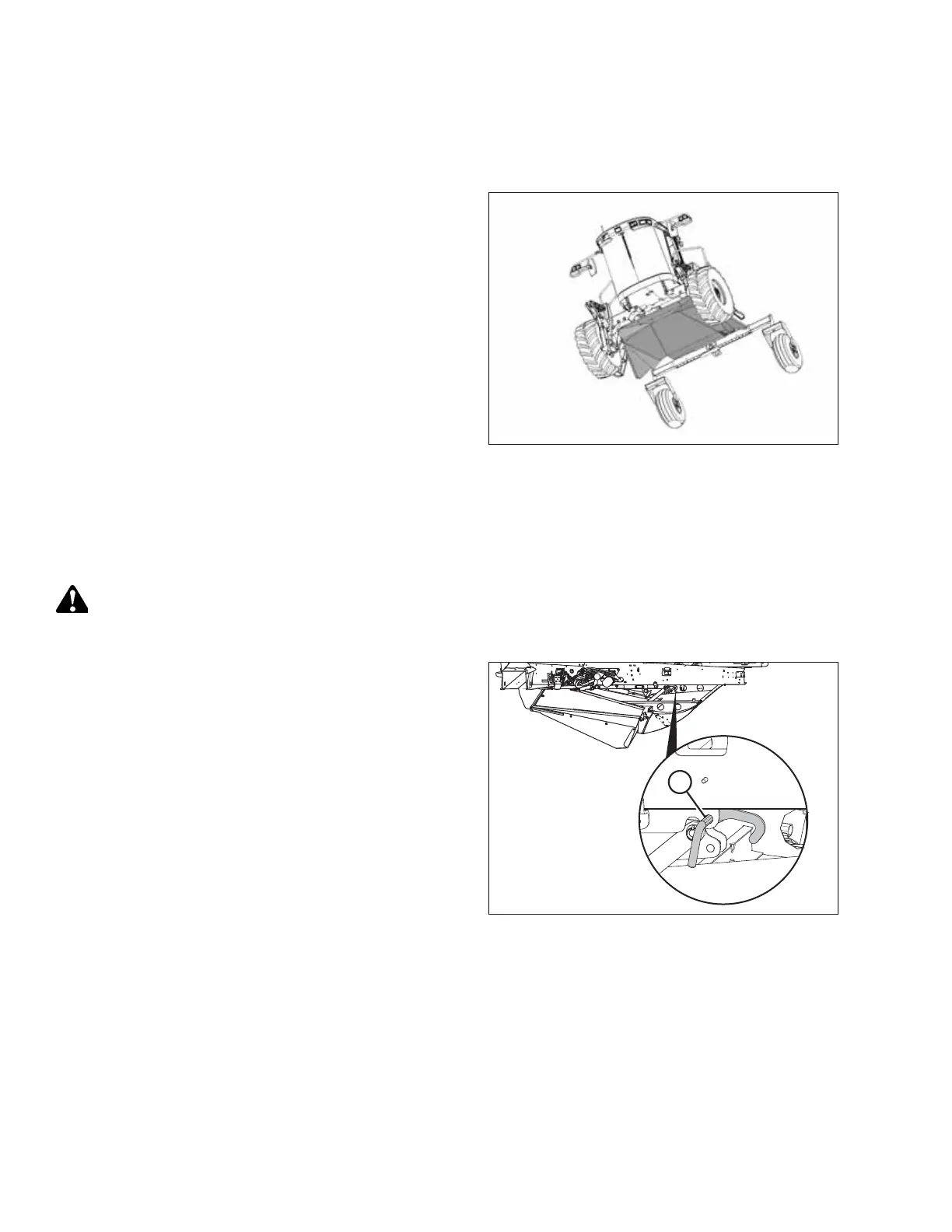

Figure 4.96: Swath Compressor
The swath compressor system is used with MacDon D Series
and D1 Series Draper Headers for cutting canola and replaces
the conventional roller-type system. The swath compressor has
adjustments for shaping the windrow for optimal drying and
protection from wind damage according to crop conditions. The
amount of windrow compression is monitored and controlled
from the cab with the MacDon Harvest Manager Pro control
and monitoring system.
Refer to the MacDon Swath Compressor for M Series
Windrowers Setup, Operation, and Parts Manual for the
complete operating and maintenance instructions. The manual
is shipped with the swath compressor kit.
Using Swath Compressor
The swatch compressor’s height can be changed using the button on the operator’s console. The height setting can be
viewed on the cab display module (CDM).
DANGER
To prevent injury or death from the unexpected start-up of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1021929
A
Figure 4.97: Swath Compressor Lock
1. To disengage the lock, rotate handle (A) on the left rear
support counterclockwise.
IMPORTANT:
• The lock prevents the swath compressor from lowering
inadvertently when not in use, either due to operator
error or loss of hydraulic pressure.
• Engage the lock when operating in engine-
forward mode.
• Disengage the lock before using the swath compressor.
