MacDon M155 2022 - High-Intensity Discharge Auxiliary Lighting - Option; Replacing High Intensity Discharge Floodlights

215676 402 Revision A
1000838
A
B
C
D

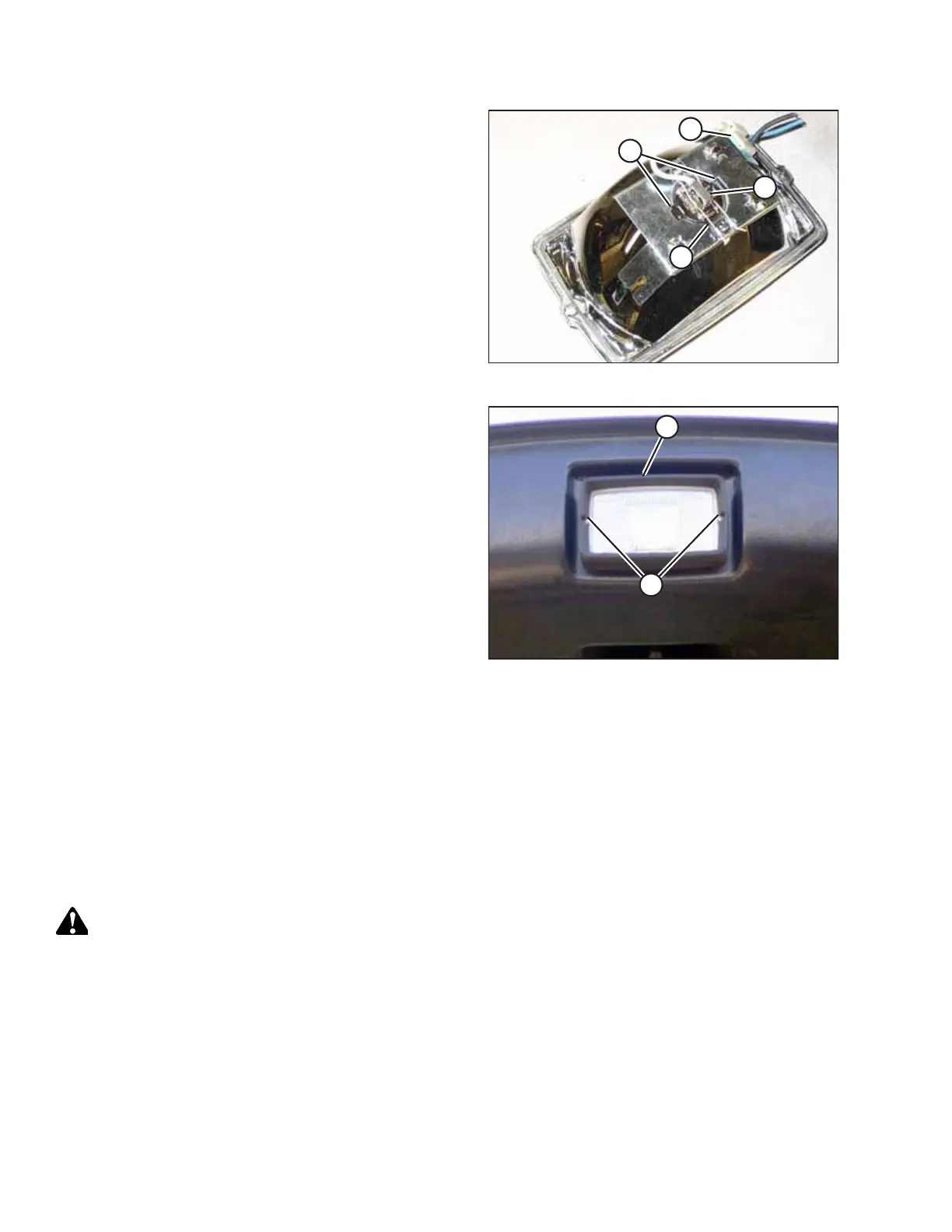

Figure 5.149: Floodlight Assembly
8. Match the slots on new bulb (B) with lugs (D) and insert the
new bulb into the receptacle.
IMPORTANT:
Do NOT touch the glass of the new light bulb when
installing it into the headlight body. Contaminants on the
surface of the bulb can cause hot spots, which can cause
the bulb to fail prematurely. Use a cloth or gloves when
installing the new bulb.
9. Secure the bulb with wire retainer (A).
10. Push the wire into connector (C).
1000842
B
C
Figure 5.150: Forward Floodlight
11. Position the floodlight body into its receptacle, ensuring
that the body is oriented correctly. Secure the floodlight
with bezel (C) and screws (B).
5.10.6 High-Intensity Discharge Auxiliary Lighting – Option
Two optional high-intensity discharge (HID) lights installed on the windrower’s mirrors provide additional lighting during
field operation. They are usable only when the windrower is operating in cab-forward mode.
Replacing High Intensity Discharge Floodlights
Model year 2012 and newer M155 Self-Propelled Windrowers may have a set of high-intensity discharge (HID) lights
installed on the mirrors. These lights are wired into the windrower’s field/work light circuit. If an HID light is damaged,
follow this procedure to replace it.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
NOTE:
The HID lights can be found in kit MD #B5596.
MAINTENANCE AND SERVICING
