4.2 Symbol Definitions
These symbols are used to provide at-a-glance information on critical windrower performance parameters.
Ensure that you are familiar with the meaning of these symbols before operating the windrower.
4.2.1 Engine Functions
These symbols, found on the console, indicate that the button or indicator on which the symbol is found pertains to a
particular windrower engine function.

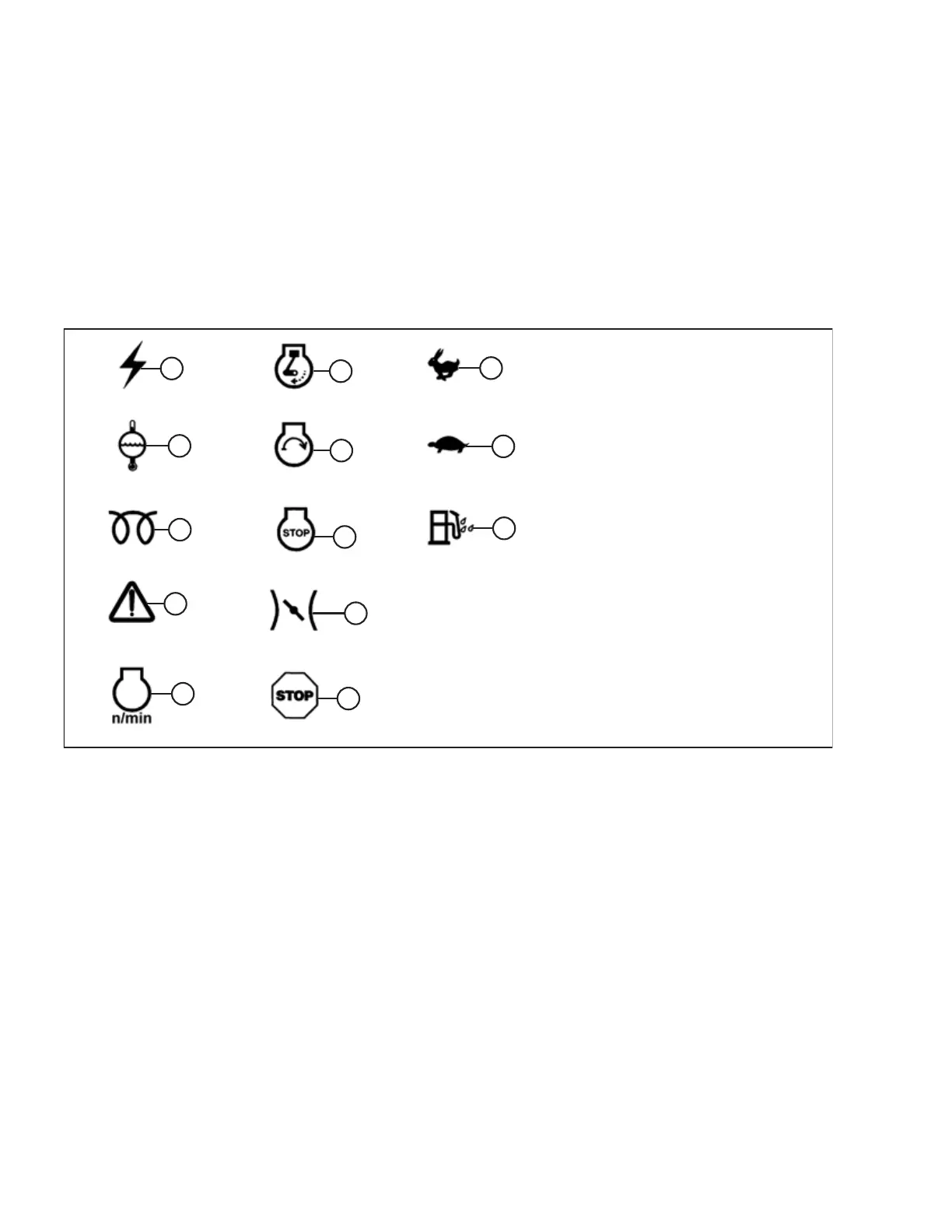

Figure 4.1: Engine Function Symbols
1000659
A
B
C
D
E
F
G
H
J
K
L
M
N
A - Electrical Power – Accessories B - Engine Coolant Temperature C - Engine Glow Plugs
D - Engine Malfunction E - Engine rpm F - Engine Run
G - Engine Start H - Engine Stop J - Engine Throttle
K - Engine Urgent Stop L - Fast M - Slow
N - Water in Fuel
