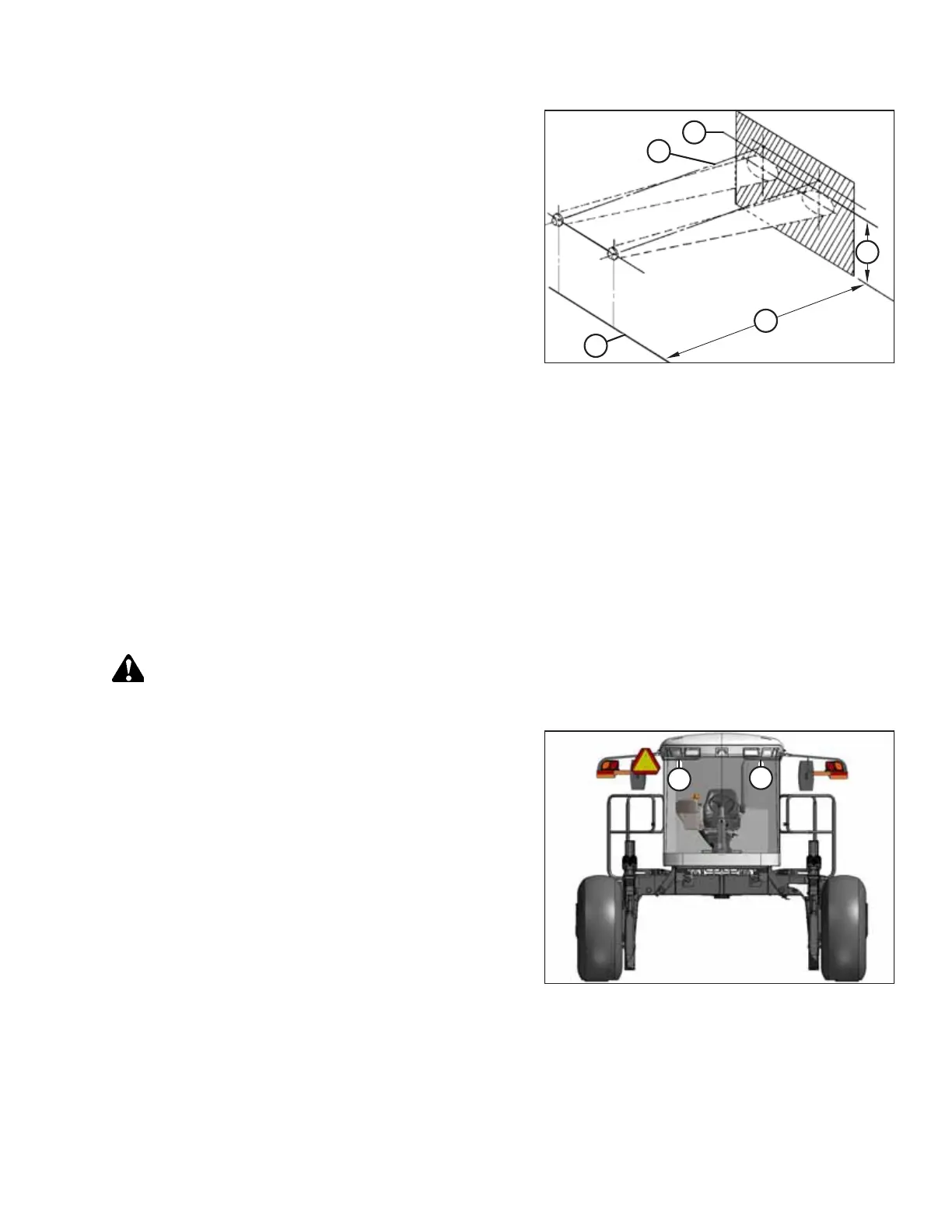

Figure 5.143: Headlight Beam Positioning
A - 1263 mm (49 3/4 in.) – distance between top of light beam and ground
B - 7.5 m (25 ft.) – distance between the headlight and the vertical surface
C - Upper edge of beam
D - Center line, projected outward from headlight
E - Ground
5. Adjust the headlight so that upper edge (C) of the light
beam does not rise higher than 1263 mm (49 3/4 in.)
(dimension [A]) above the ground (indicated by [E]). Refer
to the illustration for details. Ensure that center line (D) is
maintained as shown.
NOTE:
This measurement is only applicable while the headlight sits
7.5 m (25 ft.) from a vertical surface such as a wall
(dimension [B]).
5.10.4 Field Lights – Cab-Forward
The field lights allow the Operator to see the header and the area immediately around the windrower when the windrower
is operating in cab-forward mode.
Adjusting Field Lights
The field lights should be adjusted in conditions which resemble the windrower’s real-world operating conditions.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
Figure 5.144: Windrower Cab-Forward
1. Holding onto handholds (A) on the cab’s front corners,
stand on the header’s anti-slip strips.
