MacDon M155 2022 - Indexing Draper Speed to Ground Speed; Setting Minimum Draper Speed

215676 294 Revision A
Indexing Draper Speed to Ground Speed
Linking the draper speed to the windrower’s ground speed using the header index function allows the Operator to operate
the engine at a lower speed while maintaining the desired ground and draper speeds. Reducing engine speed saves fuel
and reduces the noise level in the cab.
Indexing the draper speed to the ground speed requires setting both the minimum draper speed and the draper index
value in the windrower’s cab display module (CDM).
Refer to the following:
• Setting Minimum Draper Speed, page 294
• Setting Draper Index, page 295
Setting Minimum Draper Speed
In order to index the speed of the draper to the windrower’s ground speed, the minimum draper speed setting must be set
in the cab display module (CDM).
1000793
A
B
C
D
E

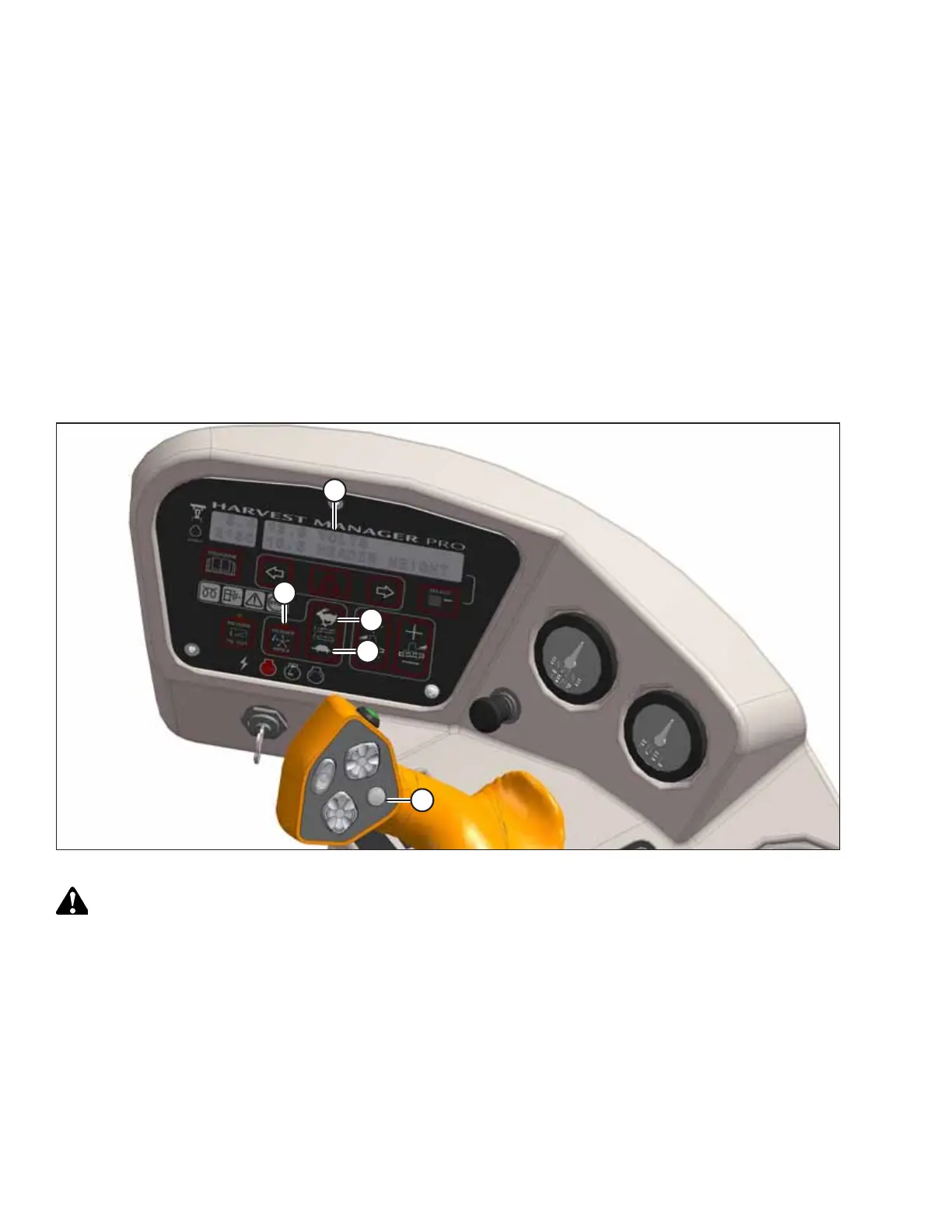

Figure 4.296: Operator Console
DANGER
Ensure that all bystanders have cleared the area.
IMPORTANT:
Set the minimum draper speed while the windrower is stationary (that is, while the ground speed lever [GSL] in the N-
DETENT position).
1. Start the engine.
2. Engage the header.
3. Set HEADER INDEX switch (B) to ON.
OPERATION
