5.10.7 Floodlights – Rear
The rear floodlights illuminate the working area behind the windrower.
Adjusting Rear Floodlights
The rear floodlights should be adjusted in conditions which resemble the windrower’s real-world operating conditions.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
2. Turn the lights ON.
1000889
A
B

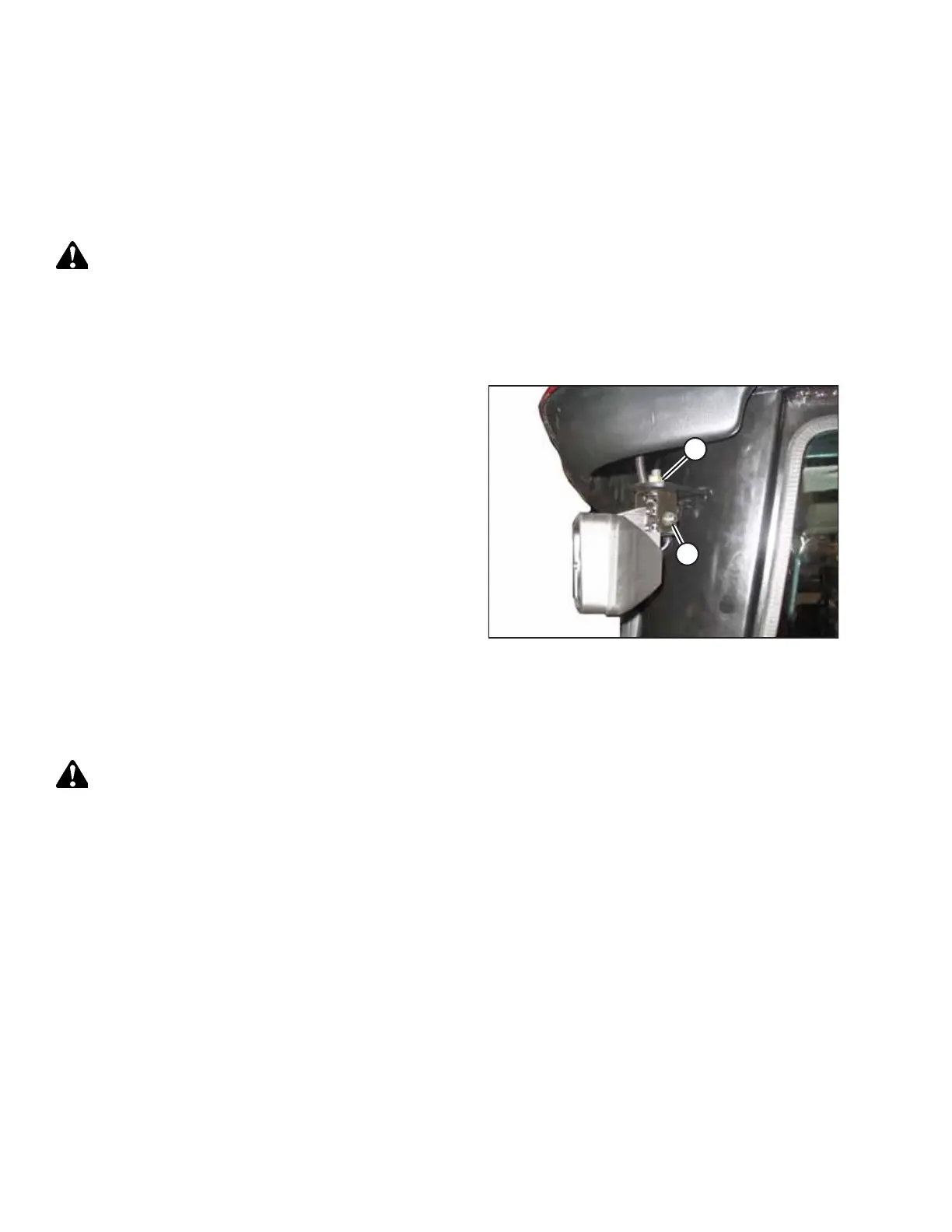

Figure 5.159: Rear Floodlight
3. Loosen bolts (A) and (B).
4. Move the light to the desired position.
5. Tighten bolts (A) and (B).
Replacing Bulb in Rear Floodlight
If a rear floodlight bulb is burnt out or damaged, it will need to be replaced.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
Replace a burnt out or damaged rear floodlight bulb with part MD #109113.
1. Shut down the engine, and remove the key from the ignition.
2. Turn the lights OFF.
