215676 439 Revision A

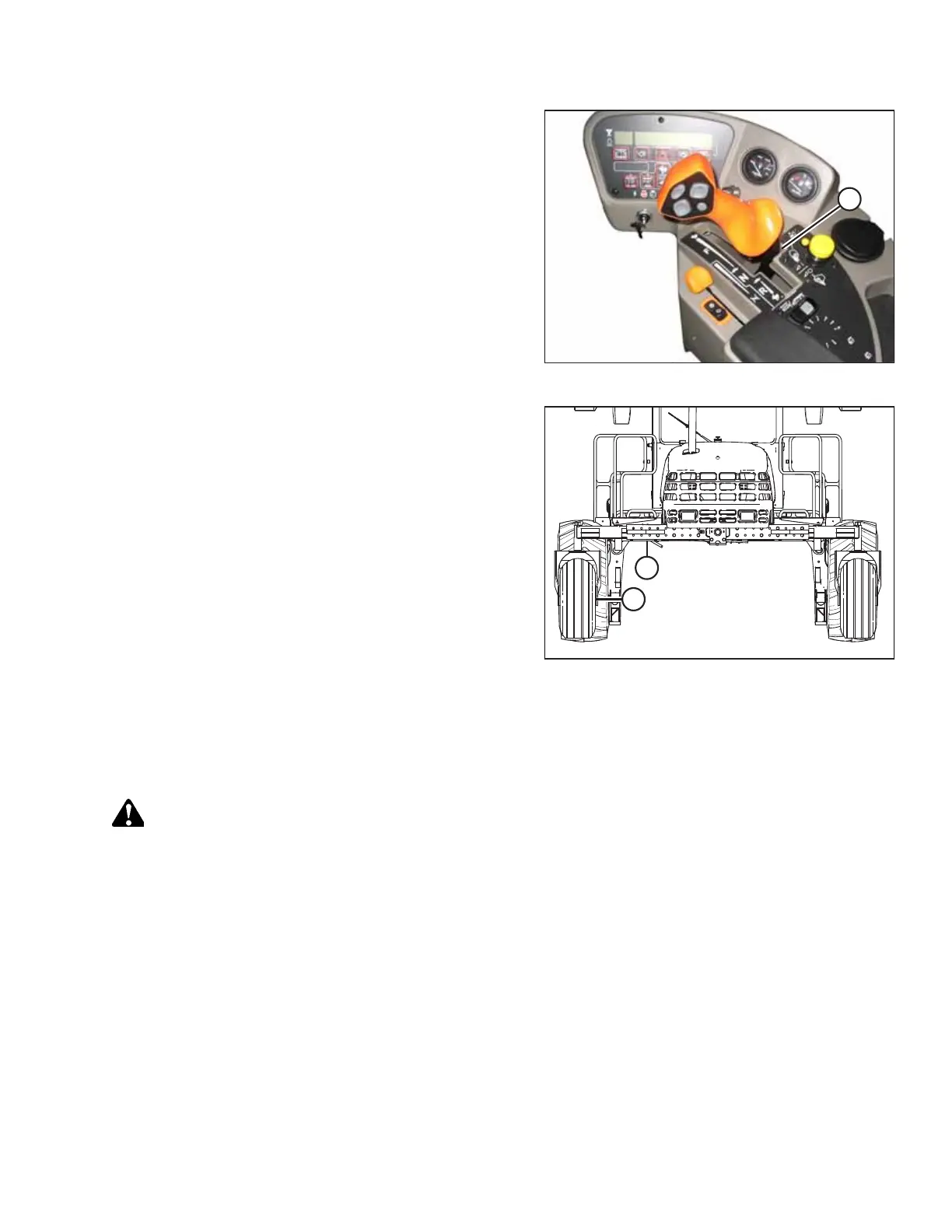

Figure 5.214: GSL Position
2. Place ground speed lever (GSL) in N-DETENT position (A).
3. Shut down the engine, and remove the key from
the ignition.
Figure 5.215: Caster Wheels and Walking Beam –
Engine-Forward View
4. Raise the end of walking beam (A) until caster wheel
assembly (B) is no longer in contact with the ground. Use a
suitable lifting device, capable of lifting a minimum of
2268 kg (5000 lb.) to lift the windrower.
5. Place a jack stand beneath the walking beam. Lower the
jack until the beam rests on the stand.
Lowering Caster Wheel – Formed and Forked
Once the caster wheel is secured to the caster, the windrower can be lowered.
CAUTION
The jack stand must be capable of supporting a minimum of 2268 kg (5000 lb.).
MAINTENANCE AND SERVICING
