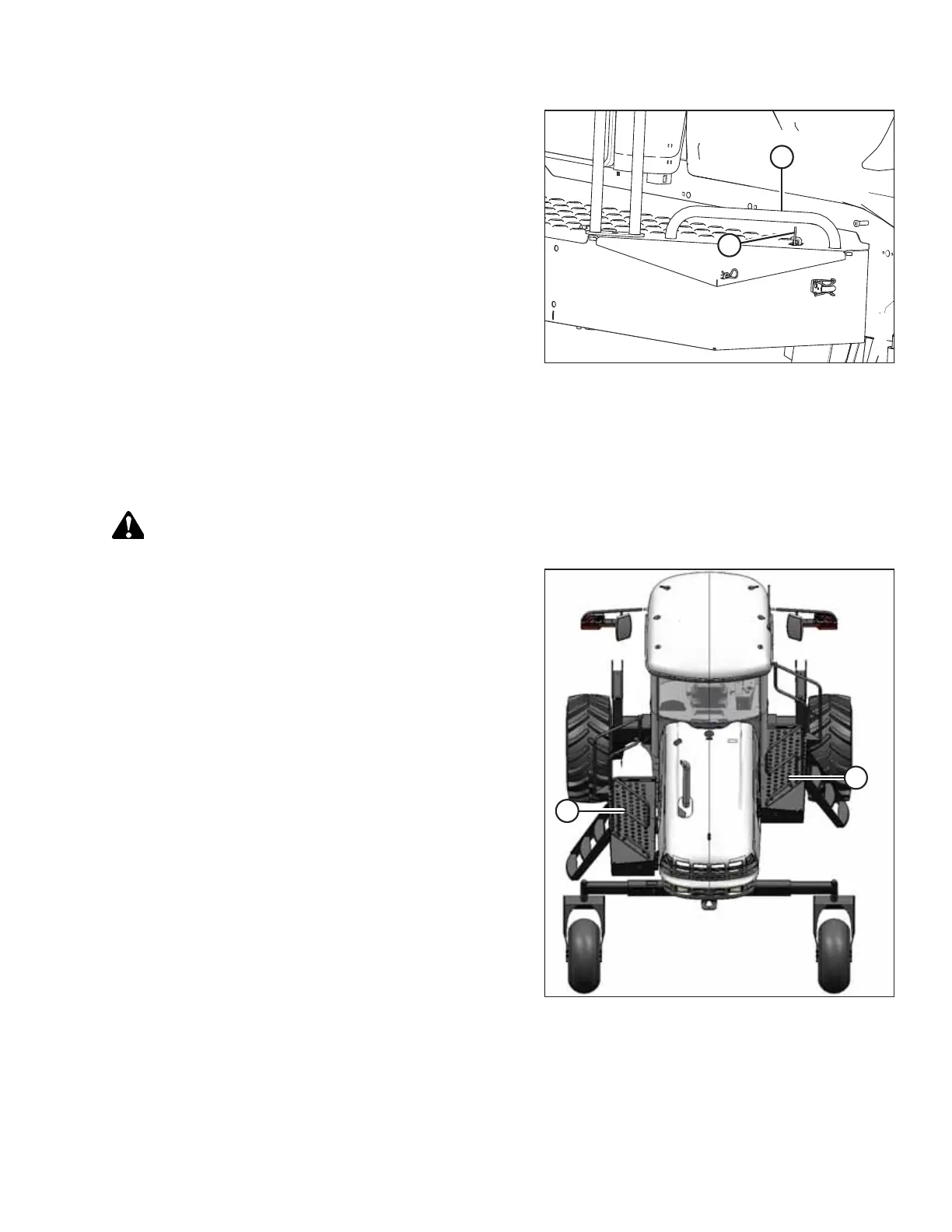

Figure 5.8: Platform Latch
1. If the platform is latched in the open position, push
latch (A) to unlock it.
2. Grasp handle (B) on the platform and push it forward until
it stops and latch (A) is engaged.
NOTE:
Ensure that the platform is latched properly
before standing on it.
5.4.3 Opening Platforms – Major Service Position
To improve access to the hydraulic system and the battery, the platforms can be swung away from the windrower. This
procedure applies to both platforms.
CAUTION
Do NOT stand on an unlocked platform. It is unstable and may cause you to fall.
1006274
A
B
Figure 5.9: Platforms
• Left cab-forward platform (A)
• Right cab-forward platform (B)
1. Open the hood. For instructions, refer to 5.3.1 Opening Hood – Lower Position, page 316.
IMPORTANT:
Failure to open the hood will result in damage to the hood when the platform is moved.
