215676 440 Revision A

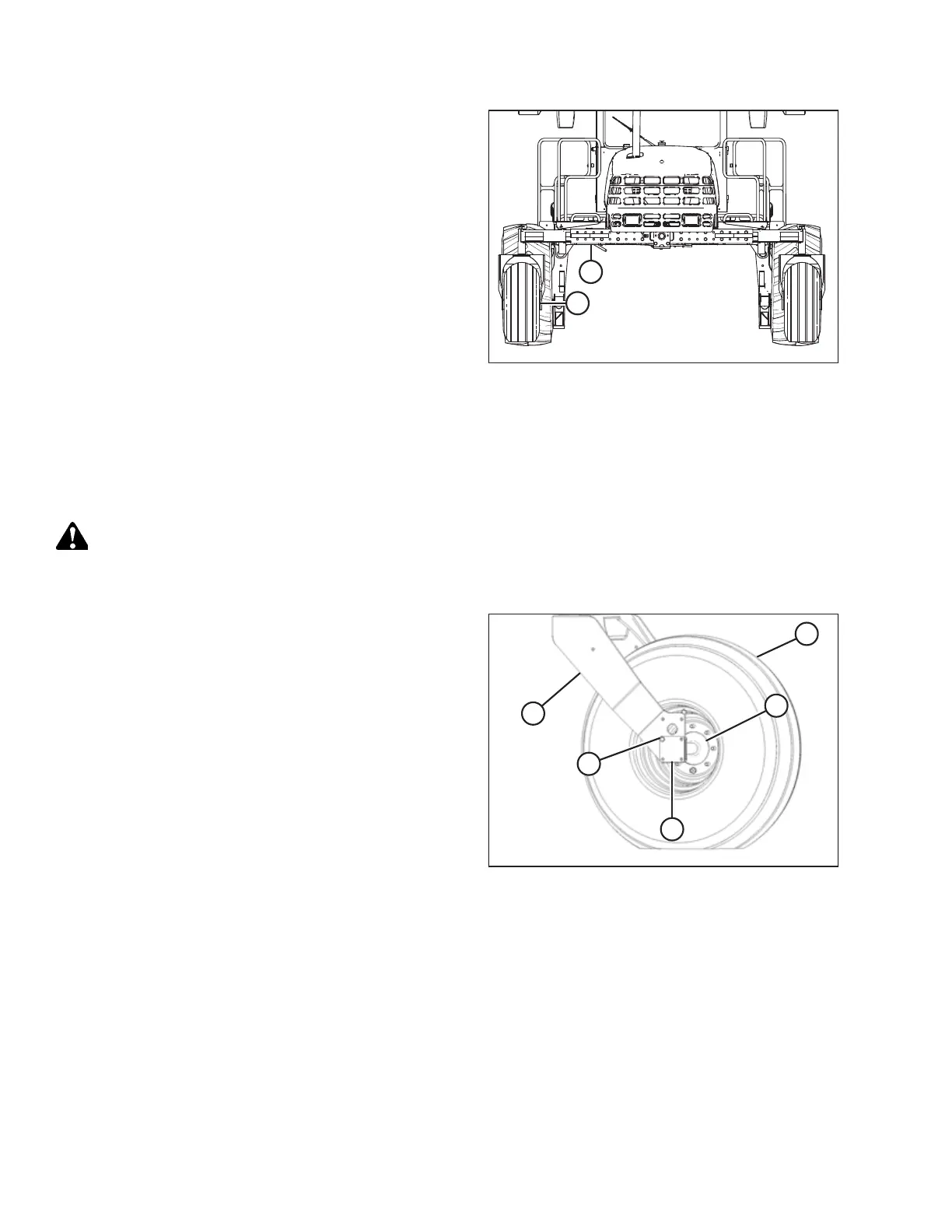

Figure 5.216: Caster Wheels and Walking Beam –
Engine-Forward View
1. Raise the end of walking beam (A) slightly, using a suitable
lifting device capable of lifting a minimum of 2268 kg
(5000 lb.).
2. Remove the jack stand and lower the end of the walking
beam until the caster wheel assembly (B) is on the ground.
Removing Forked Caster Wheel
Once the caster wheel has been raised, the forked caster axle assembly can be removed from the windrower, and the
wheel can be removed from the axle assembly.
CAUTION
A wheel assembly is heavy. Support the wheel assembly before removing the axle bolts.
1. Raise the caster wheel. For instructions, refer to Raising Caster Wheel – Formed and Forked, page 438.
Figure 5.217: Forked Caster Wheel
2. Remove eight bolts (A) (four on each side of the caster)
attaching axle (B) and cover (C) to forked caster (E).
Remove wheel assembly (D) from caster (E).
MAINTENANCE AND SERVICING
