5. Press DRAPER FAST (C) or SLOW (D) on the CDM until CDM (A) shows the message ##.## ##.# DRAP IND. Adjust the
value as needed.
• The first term displayed on the CDM, ##.##, represents the draper speed in terms of rpm or mph or km/h,
depending on how the CDM is configured.)
• The second term displayed on the CDM, #.##, represents the draper index value.
Examples:
• The windrower is traveling at 13 km/h (8 mph) with the HEADER INDEX switch set to ON and the draper index value set
at 1.5.
The CDM will display: 9.5 1.5 DRAP INDX, where 9.5 (8 + 1.5) is the draper speed in mph and 1.5 is the header index
setting.
• The windrower’s speed drops to 12 km/h (7.5 mph), while the header index value remains the same.
The CDM will display: 9.0 1.5 DRAP INDX, where 9.0 (7.5 + 1.5) is the draper speed in mph and 1.5 is the header index
setting.
• The windrower is traveling at 13 km/h (8 mph) with the HEADER INDEX switch set to ON and the draper index value set
at 0.9.
The CDM will display: 8.9 0.9 DRAP INDX, where 8.9 (8 + 0.9) is the draper speed in mph and 0.9 is the header index
setting.
Adjusting Draper Speed without Indexing
The Operator can set their preferred draper speed without using the windrower’s indexing system by using the draper
speed controls on the cab display module (CDM).

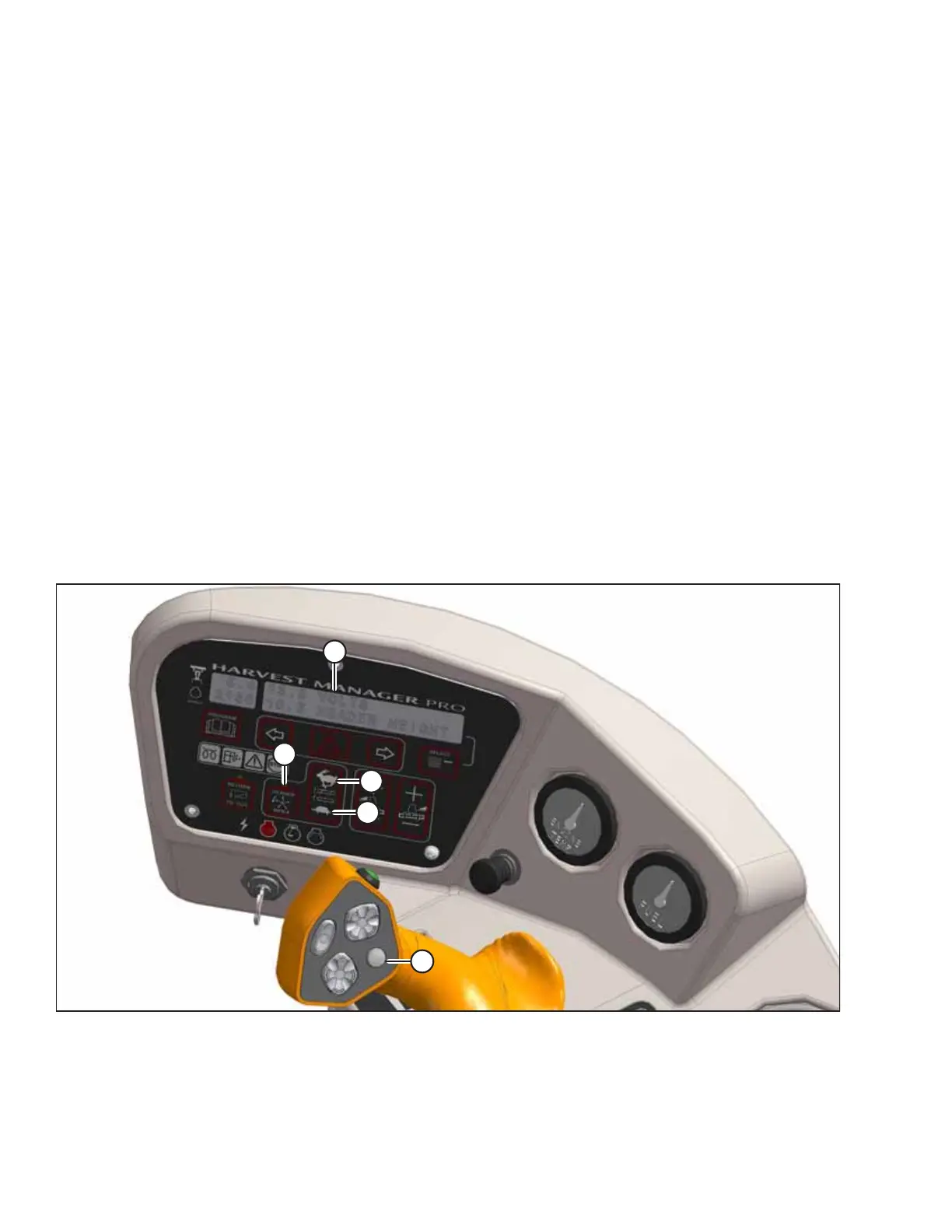

Figure 4.298: Operator Console
NOTE:
This procedure can also be followed to change the draper speed while the windrower is in motion.
